Mini Tromel Portable Gold Mining Trommel Screen Washing Plant with High Capacity
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $3,800.00/sets 1-1 sets |
| Packaging Details: | All products will be processed to be rustproof and moisture proof before delivery. <br>20GP container or 40GP container <br>Equipment is packed with plastic wrap or steel case or free fumigation wooden cases, depends on machine weight. <br>Motor is packed |
| Supply Ability: | 43 Set/Sets per Month coke trommel screen |
|
Detail Information |
|||
| Applicable Industries: | Energy & Mining | Showroom Location: | United Kingdom, Mexico |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator |
| Production Capacity: | 98% | Voltage: | 380v/415v/440v |
| Dimension(L*W*H): | Depends On Models | Weight: | 720 KG |
| Warranty: | 1 Year | Marketing Type: | New Product 2023 |
| Machinery Test Report: | Not Available | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Gearbox |
| Key Selling Points: | Soil Gold Washing | Product Name: | Portable Gold Mining Trommel Screen Washing Plant Mini Tromel For Sale |
| Keywords: | Mini Tromel | Power: | 3-45KW |
| Screen Material: | Steel Bar, Steel Plate Punch Hole, Steel Wire Woven, Stainless Steel | Dimension: | According To Capacity |
| Installation: | Supply Manual To Guide User | Capacity: | 50-500 Tons Per Hour |
| Feeding Size: | Less Than 300mm | Discharge Size: | As Request |
| Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) | Port: | Qingdao, Dalian, Tianjin, Lianyungang, Dalian, Shanghai, Guangzhou( As Client Request) |
Product Description

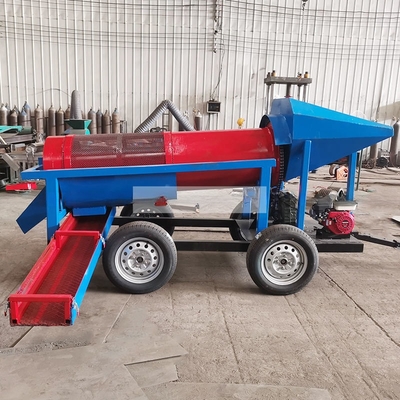

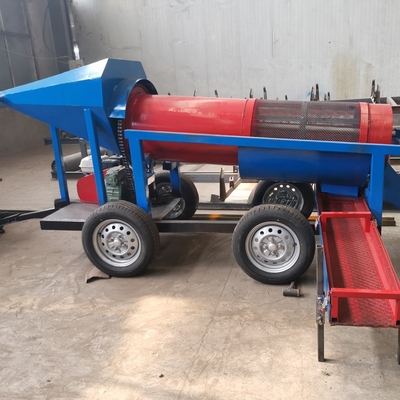

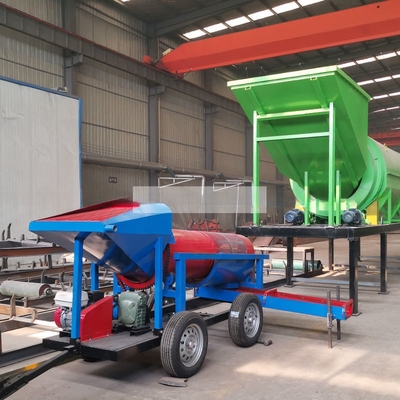

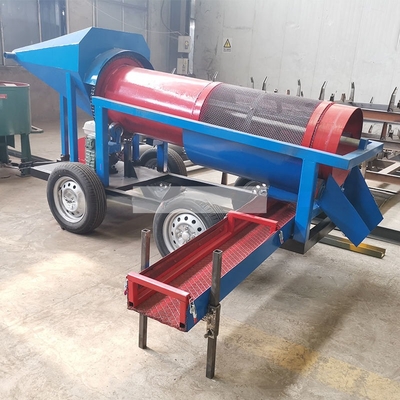

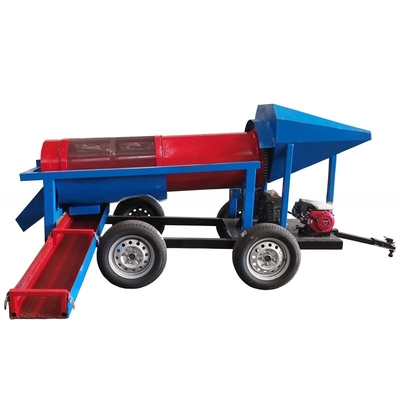

Portable gold mining trommel screen washing plant mini tromel for sale
Placer gold machine, placer gold beneficiation machinery as a mining, recovery of sand gold heavy metal machine is currently used in the global scope of sand gold mining areas. They come in many sizes, but they are all designed and made with the aim of recycling gold.
The alluvial gold machine movement is very convenient and can be applied to a variety of terrain, terrain is soft sandy or hard rock, stone or more can be applied, and must also very convenient, can satisfy the development of mining while walking. This method has a good effect on a large range of sand gold mining areas, which can save more production costs and increase mining efficiency.
Gold washing trommel working principle::
1. Input of raw materials Raw materials inputted through the entrance of the hopper will be pushed into the trommel screen by the strong water pressure of the shower equipped in the hopper.
2. Selection and cleaning of raw materials Raw materials of the trommel screen will be cleaned and selected by the rotation of trommel screen and by watering of the shower inside, run into the gold dust separate panel.
3. Collecting of gold dust separated Soil and sands with lighter specific gravity will flow away but gold dusts with greater specific gravity will be staying in the gathering mat to be collected.
| Model | Capacity (t/h) | Capacity (t/h) | Diameter (mm) | Length (mm) | Discharge (mm) | Input (mm) | Dimension ((mm) |
| GMTS0519 | 5-10 | 5-10 | 500 | 1910 | 0-100 | ≤300 | 3000x1000x1800 |
| GMTS1020 | 10-30 | 10-30 | 1000 | 2000 | 0-100 | ≤300 | 3390×1400×2140 |
| GMTS1225 | 30-50 | 30-50 | 1200 | 2500 | 0-100 | ≤300 | 4146×1600×2680 |
| GMTS1548 | 80-150 | 80-150 | 1500 | 4800 | 0-100 | ≤400 | 8460×2300×2500 |
| GMTS1848 | 100-200 | 100-200 | 1800 | 4800 | 0-100 | ≤400 | 8460×2300×2700 |
| GMTS2060 | 200-350 | 200-350 | 2000 | 6000 | 0-100 | ≤400 | 9680×2300x3420 |
