2200 KG Waste Garbage Recycling Line MSW Trommel Screen from Manufacturing Plant
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | sinolion |
| Certification: | ISO9001:2008 quality management system |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $1,400.00/sets >=1 sets |
| Packaging Details: | All products will be processed to be rustproof and moisture proof before delivery. <br>20GP container or 40GP container <br>Equipment is packed with plastic wrap or steel case or free fumigation wooden cases, depends on machine weight. <br>Motor is packed |
| Supply Ability: | 40 Set/Sets per Month |
|
Detail Information |
|||
| Applicable Industries: | Manufacturing Plant, Energy & Mining | Showroom Location: | Canada, United Kingdom, United States, Germany, Brazil, Mexico, Russia, Australia |
|---|---|---|---|
| Condition: | New | Type: | Flotation Separator |
| Voltage: | 380v/415v/440v | Dimension(L*W*H): | Depends On Models |
| Weight: | 2200 KG | Warranty: | 1 Year |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, PLC | Key Selling Points: | Automatic |
| Application: | Ore, Coal, Coke, Mulch, Organics, Bark, MSW, Building Waste | Screen Material: | Steel Bar, Steel Plate Punch Hole, Steel Wire Woven, Stainless Steel |
| Installation: | Supply Manual To Guide User | Feeding Size: | Less Than 300mm |
| Discharge Size: | As Request | Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) |
| Spare Parts Supplying: | Lifelong Provide | Cleaning System: | Rubber Ball |
| Dimension: | According To Capacity | Local Service Location: | Canada, United Kingdom, United States, Germany, Brazil, Mexico, Russia, Australia |
| After-sales Service Provided: | Video Technical Support, Online Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service | Port: | Qingdao Shanghai Tianjin, Lianyungang,Guangzhou( As Client Request) |
Product Description
Waste garbage recycling line msw trommel screen factory price
MSW trommel has always been the bottleneck of waste treatment skills. Whether it is incineration, landfill or comprehensive treatment, there are many failure cases due to incomplete classification of waste, which makes the next process unable to process and the entire production line cannot operate normally.
The domestic dirt is transported into the dirt truck, after weighing, the dirt truck enters the turning workshop of the dirt truck, the dirt is discharged in the dirt temporary storage room, and the deodorant is sprayed at the same time. The materials are sent to the uniform feeder by the bridge-type double beam grab crane, and sent from the uniform feeder to MSW trommel screen. This machine can separate the whole large dirt, 90% of the sand and soil in the dirt, 25-35% of the reusable dirt, and 90% of the big bag of dirt can be broken by bag opening system. The remaining part can be processed by a bag crusher. This machine can fully open the entire unopened bag of dirt in the dirt, disperse the debris sticking to the plastic, and crush objects with a particle size greater than 600mm to less than 60mm Of recyclables.

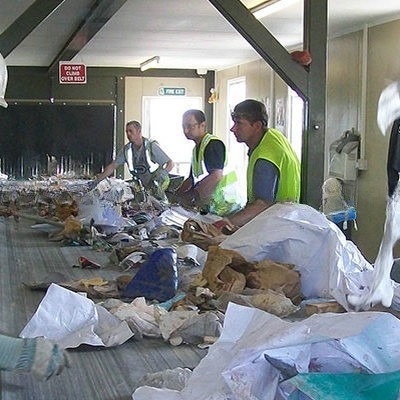

At the manual sorting platform, bulky materials will be sorted out.
And then in the magnetic separation machine, iron matters will be sorted out. The rest will be sent to a rotating screening machine to be sorted according to diameters.
Generally, the rotating screening machine can separate wastes below or above 50 mm. But in fact, the bore diameter of the screening machine can be adjusted based on actual needs.
Wastes below 50 mm, called undersized matters, are mostly organics that can be shipped out and used as fertilizer after picking out iron matters through the magnetic separator. Oversized wastes above 50 mm will be sent to the magnetic separation again to separate materials like irony drink cans or packing tins and then go to the eddy separator to sort non-ferrous matters out.
A comprehensive winnowing machine can sort the wastes into the following types, light plastic waste; heavy materials (e.g. bricks and stones, rubber overshoes, ceramic chips, glasses, etc);and other materials like hard plastic, textile fabrics, rubber products, and wet papers, etc.
The last ring of the process is manual sorting again. light plastic will be sent to the packing machine after sundries being sorted. Usable parts from heavy materials will be sorted out for further treatment and the rest will be transported out for landfill or receive focus utilization.Usable parts from other materials will also be sorted out for further treatment likewise. Hard plastic, textile fabrics, rubber products, and organics can be sold out after being pressed and packed.
As for the combustible wastes, they are usually transported out after pressing and packing and then used to generate electricity or for landfill. Thereinto, a bag breaker can be equipped before the magnetic separator to break the bags inside of the wastes.
Where Does the Garbage Go After Sorting Most of the garbage:
Plastic: can be reprocessed by plastic pyrolysis machine to get plastic oil and carbon black, then get diesel by crude oil distillation unit; can be pelletized into plastic pellets by plastic pelletizing machine;
Metal: can be used to produce steel materials;
Organic: can get biogas from fermentation system;
Biomass wastes like straws, wood, sewage sludge, etc.: can be carbonized to get charcoals by charcoal making machine;
Brickbats and stones: can be briquetted into new bricks for construction use.
| Model | Drum size(m) | Drum inclination (°) | Drum speed (r/min) | Mesh size(mm) | Max feeding size(mm) | capacity(m³/h) | Motor power (kw) |
| GTS820 | Φ0.8×2 | 6-10 | 32 | 2-20 | Mesh size×2.5 | 7-30 | 3 |
| GTS830 | Φ0.83 | 6-10 | 32 | 2-20 | Mesh size×2.5 | 8-50 | 3 |
| GTS1020 | Φ1×2 | 6-10 | 25 | 2-20 | Mesh size×2.5 | 10-60 | 4 |
| GTS1030 | Φ1×3 | 6-10 | 25 | 2-20 | Mesh size×2.5 | 11-80 | 4 |
| GTS1230 | Φ1.2×2 | 6-10 | 20 | 2-20 | Mesh size×2.5 | 12-100 | 5.5 |
| GTS1240 | Φ1.2×4 | 6-10 | 20 | 2-20 | Mesh size×2.5 | 14-120 | 5.5 |
| GTS1530 | Φ1.5×3 | 6-10 | 17 | 2-20 | Mesh size×2.5 | 16-120 | 5.5 |
| GTS1540 | Φ1.5×4 | 6-10 | 17 | 2-20 | Mesh size×2.5 | 18-150 | 7.5 |
| GTS1550 | Φ1.5×5 | 6-10 | 17 | 2-20 | Mesh size×2.5 | 20-180 | 11 |
| GTS1560 | Φ1.5×6 | 6-10 | 17 | 2-20 | Mesh size×2.5 | 22-200 | 11 |
| GTS1850 | Φ1.8×5 | 6-10 | 14 | 2-20 | Mesh size×2.5 | 24-220 | 15 |
| GTS1860 | Φ1.8×6 | 6-10 | 14 | 2-20 | Mesh size×2.5 | 26-240 | 15 |
| GTS2050 | Φ2×5 | 6-10 | 12 | 2-20 | Mesh size×2.5 | 50-600 | 22 |
| GTS2080 | Φ2×8 | 6-10 | 12 | 2-20 | Mesh size×2.5 | 80-700 | 22 |
| GTS2260 | Φ2.2×6 | 6-10 | 10 | 2-20 | Mesh size×2.5 | 100-800 | 30 |
| GTS2280 | Φ2.2×8 | 6-10 | 10 | 2-20 | Mesh size×2.5 | 120-850 | 30 |
if you need more photos and video , please click here to contact me :
|
| |
| |
| |
if you need more photos and video , please click here to contact me :
Question 1: Can you give me a solution and quotation?
Answer: Absolutely sure, we can provide accurate solution and quotation, please give us background information, including, raw material, the capacity, max. input size, the output size, the usage of final products, etc.
Question 2: Way of payment
Answer: Welcome clients place the order by alibaba online one-touch! Deya also offers various ways of payment, T/T, against copy of B/L, L/C, D/A, D/P, West union, etc. All can be negotiated.
Question 3: What’s the delivery time after I pay the deposit ?
Answer: Normal delivery time within 10 to 20 working days, complete production line or larger equipment may take longer. Exact delivery shall be confirmed when place the order.
Question 4: After order equipment how do we slove the equipment installing?
Answer: For a small single equipment, we offer you user manual, customer will install and commissioning as operating introduction; For a complete production line, we will send our engineer to your workplace to help you install and commissioning untill machines work normally. Sinolion has several experienced technicians with passports ready to go for installation, when installation service is needed, the client should pay for technicians’ round way air tickets, salary(shall be confirmed before leaving), food and lodging, most importantly to guarantee the technicians’ safety.
Question 5: How long of your machine quality guarantee terms?
Answer: Equipment from Zhengzhou Sinolion Machinery Co., Ltd. with 18 months warranty, can be extended to 24 months as request.
If you have interest on our machine or have questions on our machine, please don't hesitate to contact us.
