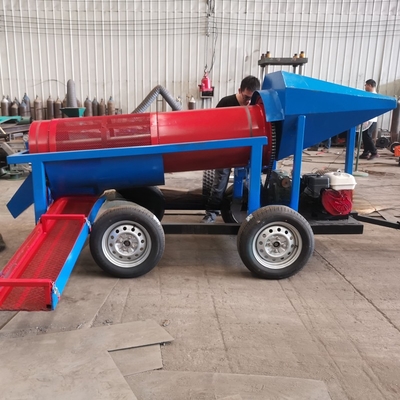

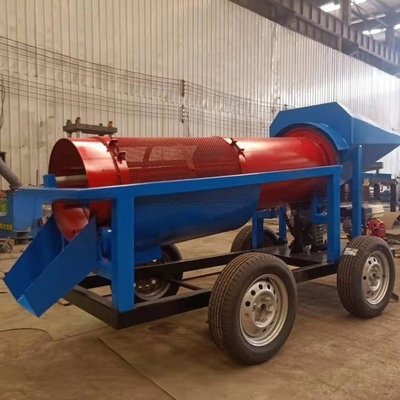

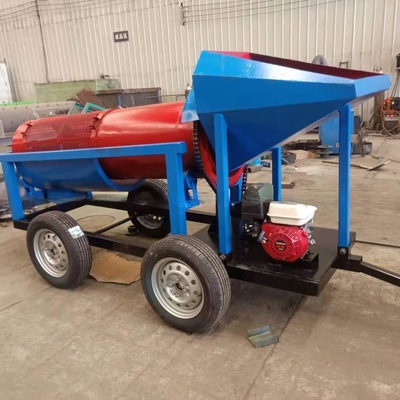

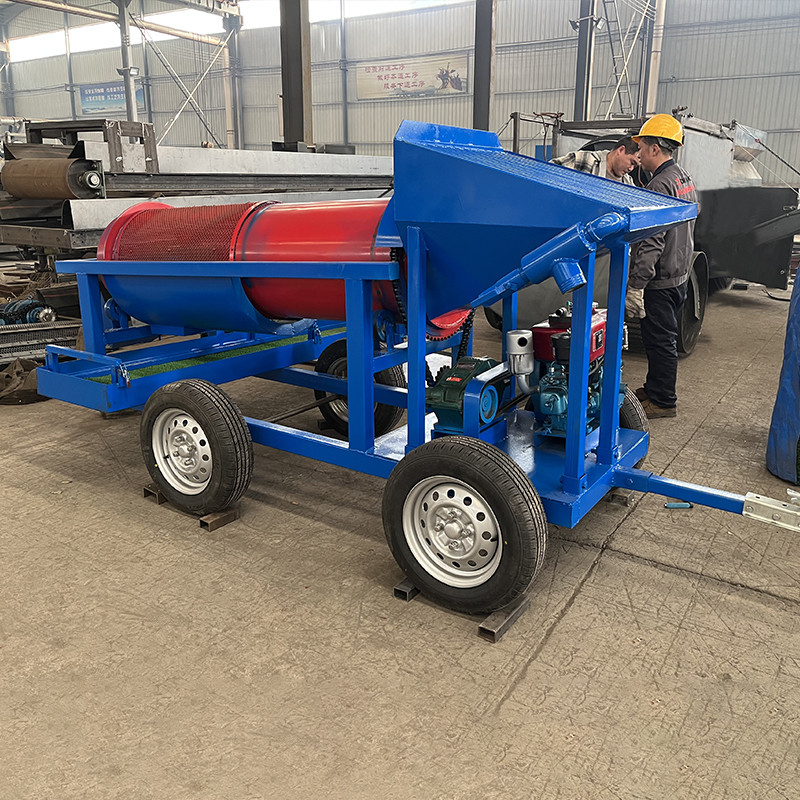

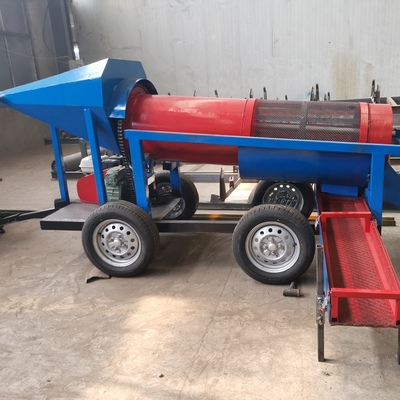

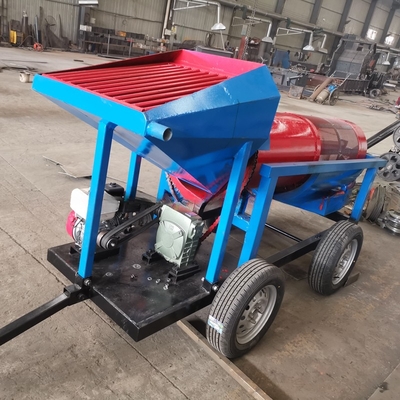

Manufactory Gold Processing Plant Rotary Trommel Drum Screen with Steel Wire Woven
Product Details:
| Place of Origin: | China |
| Brand Name: | sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $4,080.00/sets 1-1 sets |
|
Detail Information |
|||
| Applicable Industries: | Manufacturing Plant, Energy & Mining | Showroom Location: | Mexico |
|---|---|---|---|
| Condition: | New | Type: | Flotation Separator |
| Voltage: | 380v/415v/440v | Dimension(L*W*H): | Depends On Models |
| Weight: | 820 KG | Warranty: | 1 Year |
| Marketing Type: | New Product 2022 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Gearbox | Key Selling Points: | Easy To Operate |
| After-sales Service Provided: | Video Technical Support | Application: | Ore, Coal, Coke, Mulch, Organics, Bark, MSW, Building Waste |
| Screen Material: | Steel Bar, Steel Plate Punch Hole, Steel Wire Woven, Stainless Steel | Installation: | Supply Manual To Guide User |
| Feeding Size: | Less Than 300mm | Discharge Size: | As Request |
| Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) | Product Name: | Manufactory Rotary Gold Trommel Drum Screen For Gold Processing Plant |
| Keywords: | Rotary Gold Trommel Drum Screen For Gold Processing Plant | ||
Product Description
Brief description of Rotary drum trommel screen in mineral separator
Rotary drum trommel screen in mineral separator is applied to material classficiation and ore washing operation.The trommel screen is a special screening equipment developed by our company for power plants, coking plants, building materials, metallurgy, chemical industry, mining and other industries. It overcomes the problem of screen blocking of various vibrating screens when screening wet materials. Increased production and reliability of the screening system.
Working principle of Rotary drum trommel screen in mineral separator:
The Rotary drum trommel screen in mineral separator is a cylindrical cylinder with a perforated surface. During operation, the screen cylinder rotates slowly around the shaft under the driving of the transmission device; the solid waste is fed by one end of the screen cylinder, and is carried by the rotating cylinder body. When reaching a certain height, it should be dropped by gravity, so that the lifting movement is continuously performed. The fine material having a mesh size smaller than that of the sieve is screened, and the product on the sieve is gradually moved to the other end of the sieve to be discharged. In order to advance the waste in the direction of the axis in the barrel, the axis of the screen cylinder is generally installed at an oblique angle.
The advantage of Rotary drum trommel screen in mineral separator:
1. Using special screen mesh, the sieve hole is not easy to block, high screening effciency and long service life.
2. Small installation slope and stable operation.
3. Simple structure and easy maintenance.
4. High reliable, durable and less one-time invesrment.
5. Screening cylinder can be closed, easy to close and collect dust and less polution.
Main techinical parameter of Rotary drum trommel screen in mineral separator:
Model | Capicity(t/h) | Power(kw) | Diameter(mm) | Length(mm) | Discharge Size(mm) | Input Size(mm) | Dimension(L*W*H)(mm) |
GTS1015 | 50 | 3.0 | 1000 | 1500 | 0-100 | ≤300 | 2600*1400*1700 |
GTS1020 | 100 | 4.0 | 1000 | 2000 | 0-100 | ≤300 | 3390*1400*2140 |
GTS1225 | 160 | 5.5 | 1200 | 2500 | 0-100 | ≤300 | 4146*1600*2680 |
GTS1530 | 250 | 7.5 | 1500 | 3000 | 0-100 | ≤300 | 4460*1900*2820 |
GTS1545 | 350 | 11 | 1500 | 4500 | 0-100 | ≤300 | 5960*1900*3080 |
GTS1848 | 450 | 15 | 1800 | 4800 | 0-100 | ≤300 | 6500*2350*4000 |
GTS2055 | 600 | 22 | 2000 | 5500 | 0-100 | ≤300 | 7500*2550*4800 |
GTS2265 | 800 | 30 | 2200 | 6500 | 0-100 | ≤300 | 8500*2750*5000 |
1. Pre-sale service:
1) Sinolion will provide production line design, quotation sheet, working sites video, machinery photos, sample testing(gold ore, tin ore , iron ore, tungsten processing in laboratory).
2) Welcome to visit us at any time, we will pick you up.
2. Sale service:
1) Keep clients updated when our company gets advance payment.
2) Confirm production details with clients.
3) Take photos and send all pictures to customers during production.
4) Inspection and testing the product before delivery;
5) Clients are welcome to inspect the equipment when the equipment are ready to delivery.
6) logistics service if needed.
3. After Sale service:
1) Provide foundation drawing to the clients for installation.
2) Besides, our engineers are available to help with installation and workers training.
3) Repairing and maintenance if any problem during the warranty.
4) Spare parts and wearing parts will be offered with production cost in 10 years.
1. What's the delivery time after I pay the deposit ?
In your first inquiry, please let us know your information and requirements, we will give you guidance for choosing the right machine.
2. Is mineral samples analysis available?
Sure, we supply samples analysis service for free. After the testing, we will give you the reasonable flow chart, suitable solution and equipment selection.
3. What's the delivery time after I pay the deposit?
We will clear delivery time in slaes contract, Single movable drum sieve often deliveried within 10-15 working days after receipt of the pre-payment. Complete production line will delivery within 25-40 working days after receipt of the pre-payment.
4. How long of your machine quality guarantee terms ?
Quality guarantee time is one year(wearing parts excluded).
