630 L/time coal binder mixer for advanced MixAing liquid type charcoal production line
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | SINOLION |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $1,500.00/sets 1-1 sets |
|
Detail Information |
|||
| Type: | Briquette Machines | Applicable Industries: | Manufacturing Plant, Home Use, Energy & Mining |
|---|---|---|---|
| Weight (KG): | 330 | Showroom Location: | Canada, United States, Pakistan, Mexico, Russia, Thailand |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Condition: | New |
| Production Capacity: | 630 L/time | Motor Type: | AC Motor |
| Dimension(L*W*H): | 1200*2300mm | Warranty: | 1 Year |
| Keyword: | Binder Mixer | Usage: | MixAing Liquid Type Binder Mixer |
| Application: | Briquette Production Line | Function: | Mixing Liquid Type Binder,binder Mixer For Briquette Production Line |
| Voltage: | 380v 415v | Installation: | Under Engineers Guidance Use Briquette Machine |
| Color: | Customized | Product Name: | ISO Certified Coal Binder Mixer For Charcoal Production Line |
| Spare Parts: | Long Term | ||
Product Description
ISO Certified coal binder mixer for charcoal production line
Production description

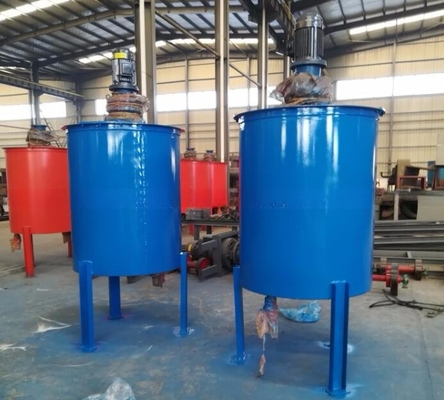

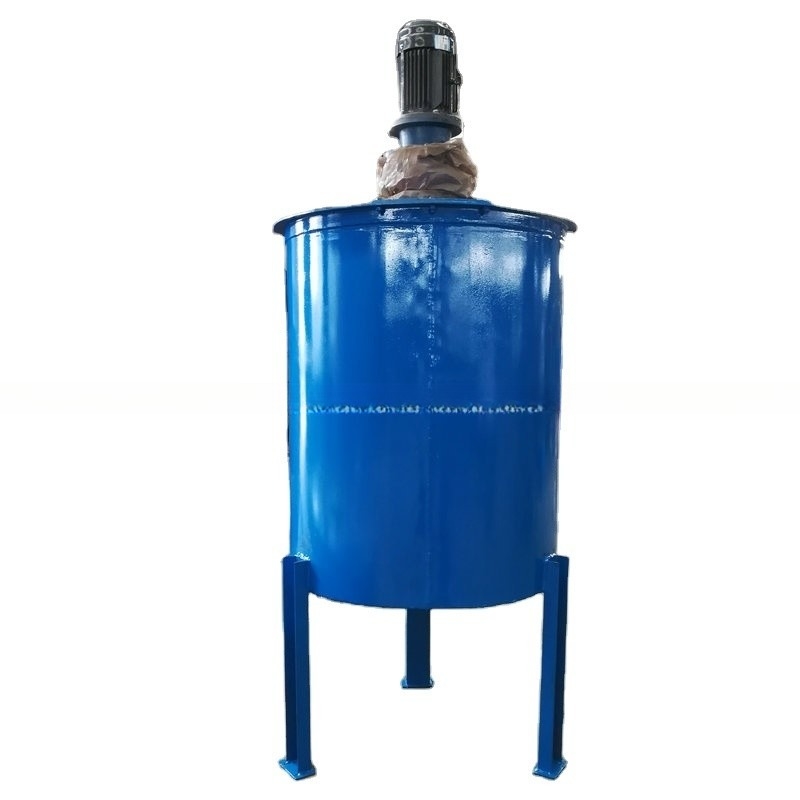

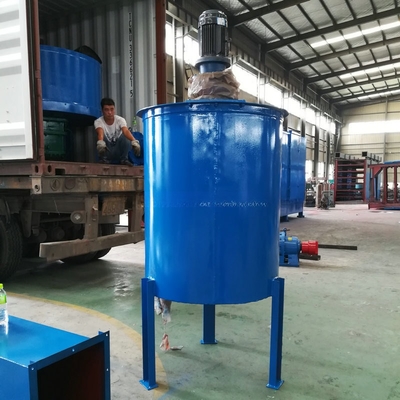

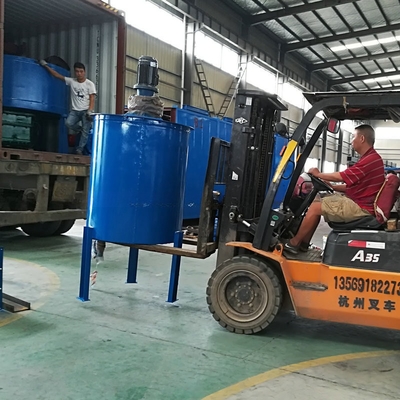

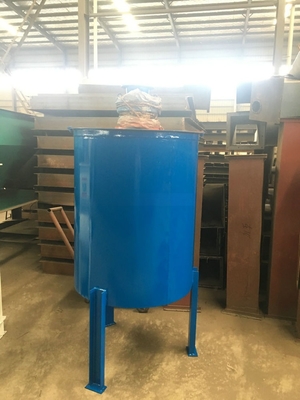

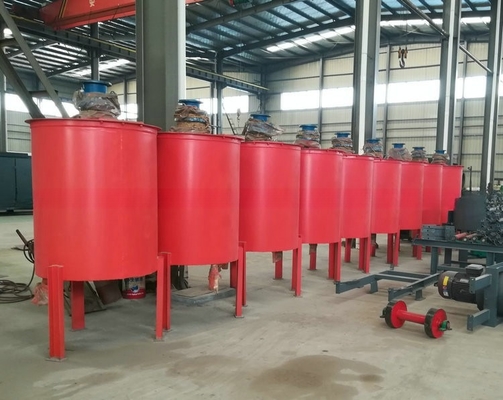

Binder mixing tank:
Binder mixer is often used in stiring powder binder into water, and make them be fully mixed to form one kind of compound additive. It often works in complete briquettte production line,for storing & mixing binder,prepares to mix & blend with raw mateials in the equipment.After mixing the material with binder, it will be much easier to be pressed into briquettes and get better strength.
Feature of briquette machine:
Binder mixing tank design is with lowest operating cost and very less maintenance for years makes it very successful & different from others.
Technicial parameters
ISO Certified coal binder mixer for charcoal production line
| Model | Reducer | Power (Kw) | Main shaft speed(r/min) | Stiring amount each time(L) | Stiring time(min) | Overall size(mm) |
| Φ800 | BLD12 | 2.2 | 33 | 550 | 3-5 | Φ1000*2000 |
| Φ1000 | VLD13 | 3 | 33 | 630 | 3-5 | Φ1200*2300 |
