Dispersion Blender Mixer Machine 3250L Coal Charcoal Double Shaft Mixer for Sale

Dispersion Blender Mixer Machine 3250L Coal Charcoal Double Shaft Mixer for Sale

Product Details:

Place of Origin: China
Brand Name: sinolion double shaft mixer
Model Number: JBJ

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $6,500.00/sets >=1 sets
Get Best Price Contact Now

Detail Information

Mixer Type: Homogenizer Barrel Volume (L): 3250 L
Material Processed: Charcoal Max. Loading Volume (L): 5000 L
Range Of Spindle Speed(r.p.m): 20 - 40 Max. Loading Capacity: Depend On Double Shaft Mixer Model
Weight (KG): 500 KG Condition: New
Product Type: Toothpaste Application: Powder
Additional Capabilities: Milling Voltage: 220V,380V,415V
Dimension(L*W*H): 5180*1300*960mm Power (kW): 45 KW
Warranty: 1 Year Key Selling Points: High Efficiency
Applicable Industries: Manufacturing Plant, Home Use, Energy & Mining Showroom Location: Canada, United States, Pakistan, Mexico, Russia, Thailand
Marketing Type: New Product 2020 Machinery Test Report: Provided
Video Outgoing-inspection: Provided Warranty Of Core Components: 1 Year
Core Components: Motor, Bearing Name: Double Shaft Mixer
Machine Type: Dispersion Blender Mixer Machine Function: Mixing Raw Material
After-sales Service Provided: Rovided: Engineers Available To Service Machinery Overseas Application Scope: Briquetting
Keyword: Double Shaft Mixer Color: Clients Request
Material: Coal, Charcoal, Mineral Powder, Etc Capacity: 7-32 T/h

Product Description

Product Description

High quality coal charcoal double shaft mixer price factory sale


Brief introduction of double shaft mixer


Double shaft mixer is mainly used to mix powder material, this is to say, it can be used to produce kinds of powder mixtures, the aggregate can be wet fly ash, calcium carbide slurry, phosphate gypsum, sandstone, slag and so on. It is mainly used as the equipment mainframe in poduction line of kinds of buring free bricks and lime-sand bricks and is one of the important equipment used to produce fly ash bricks and moulded coals.

Dispersion Blender Mixer Machine 3250L Coal Charcoal Double Shaft Mixer for Sale 0

Working principle of double shaft mixer


When the dry powder material is fed into the tank by the feeding nozzle, then the power transmission mechanism drives the spiral spindle rotation of the multi-group blades. By driving the passive helical shaft and the main shaft of the meshing transmission gear, the material is stirred and pushed to the tank and the wet section. After the material is pushed into the humidification section, the humidifier automatically sprays the material, and then the mixing section is fully stirred. When the material reaches the controllable humidity, it is removed from the outlet and enters the next process.


Main technical parameter of double shaft mixer

Type
Chute length(mm)
Capacity(t/h)
Powder (kw)
Propeller diameter (mm)
350
3-4
7-10
11-15
350
450
3-4
10-18
15-22
450
550
3-5
15-25
22-37
550
650
3-5
22-32
37-45
650


The feature of double shaft mixer:


1. This double shaft mixers uses high-chromium and high-molybdenum scale boards and stirring pieces, with a long service time.
2. Shaft seal is applied with patented air pressure seal, which can effectively prevent the leakage of mortars.
3. Opening gates mechanism directed by hydraulic can adjust the opening angle of discharging door in accordance with the need, which effectively prevents overspill while discharging the finished materials into truck-mounted concrete mixers.

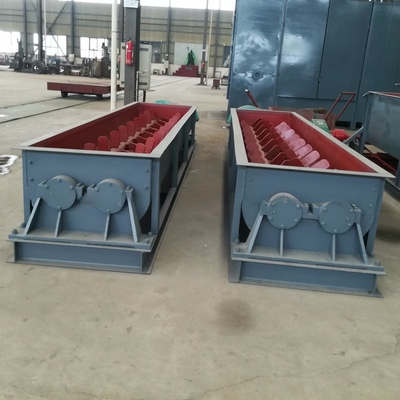

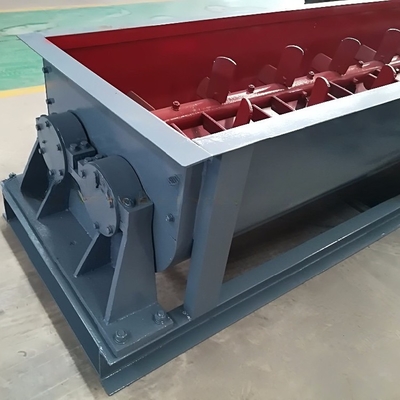

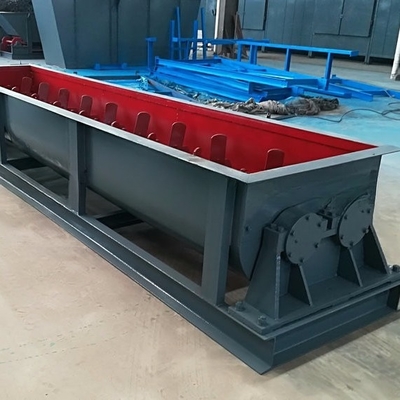

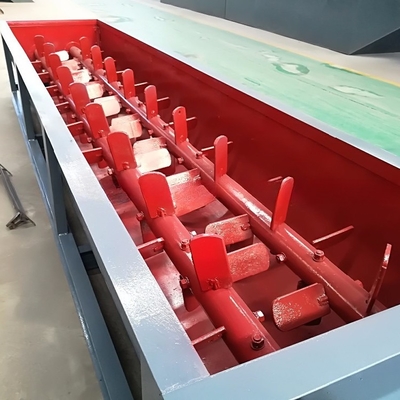

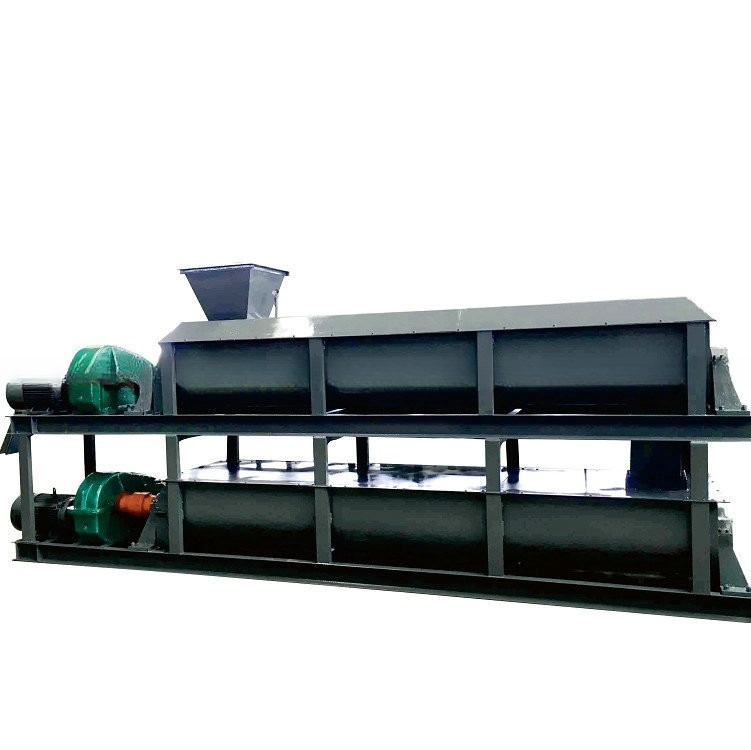

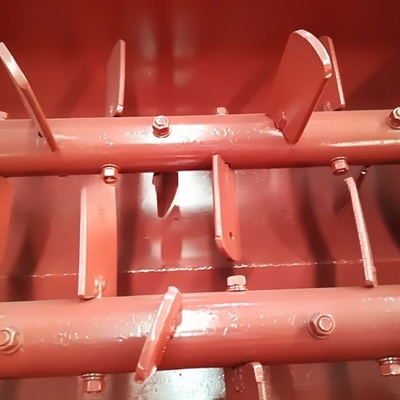

Detailed Images
Dispersion Blender Mixer Machine 3250L Coal Charcoal Double Shaft Mixer for Sale 1
Dispersion Blender Mixer Machine 3250L Coal Charcoal Double Shaft Mixer for Sale 2
Dispersion Blender Mixer Machine 3250L Coal Charcoal Double Shaft Mixer for Sale 3
Dispersion Blender Mixer Machine 3250L Coal Charcoal Double Shaft Mixer for Sale 4
Dispersion Blender Mixer Machine 3250L Coal Charcoal Double Shaft Mixer for Sale 5
Dispersion Blender Mixer Machine 3250L Coal Charcoal Double Shaft Mixer for Sale 6
Packing & Delivery
Dispersion Blender Mixer Machine 3250L Coal Charcoal Double Shaft Mixer for Sale 7
Dispersion Blender Mixer Machine 3250L Coal Charcoal Double Shaft Mixer for Sale 8
Dispersion Blender Mixer Machine 3250L Coal Charcoal Double Shaft Mixer for Sale 9
Our Service

1.Pre-sale service:

1)Sinolion will provide production line design, quotation sheet, working sites video, machinery photos, sample testing(gold ore, tin ore , iron ore, tungsten processing in laboratory).
2)Welcome to visit us at any time, we will pick you up.

2.Sale service:

1)Keep clients updated when our company gets advance payment.
2)Confirm production details with clients.
3)Take photos and send all pictures to customers during production.
4)Inspection and testing the product before delivery;
5)Clients are welcome to inspect the equipment when the equipment are ready to delivery. We will arrange cars, hotels and translators for customers.
6)logistics service if needed.

3.After Sale service:

1)Provide foundation drawing to the clients for installation.
2)Besides, our engineers are available to help with installation and workers training.
3)Repairing and maintenance if any problem occur in the warranty.
4)Spare parts and wearing parts will be offered with production cost in 10 years.

Our Company
Dispersion Blender Mixer Machine 3250L Coal Charcoal Double Shaft Mixer for Sale 10
Dispersion Blender Mixer Machine 3250L Coal Charcoal Double Shaft Mixer for Sale 11
