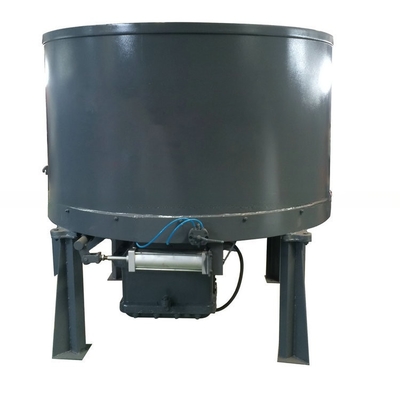

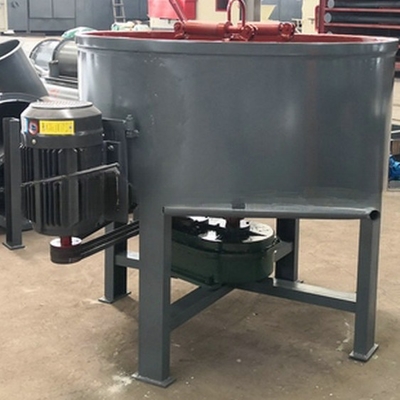

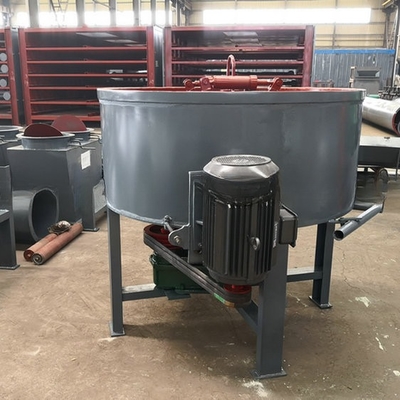

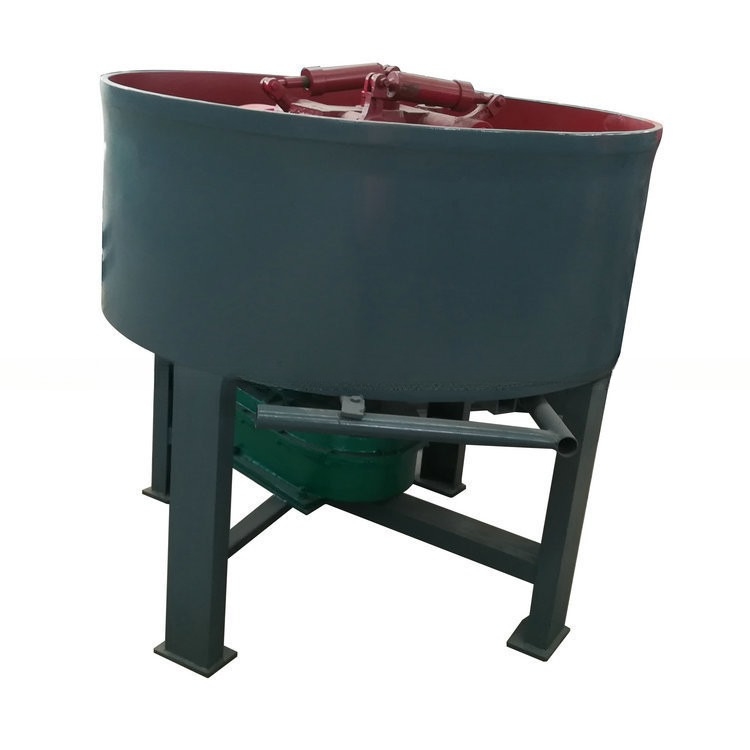

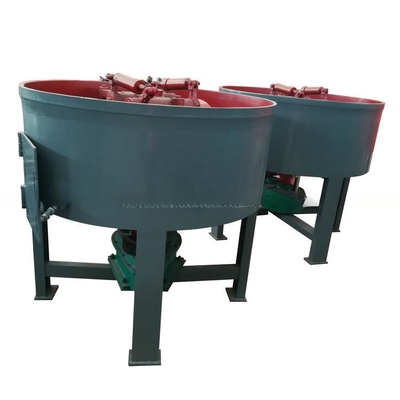

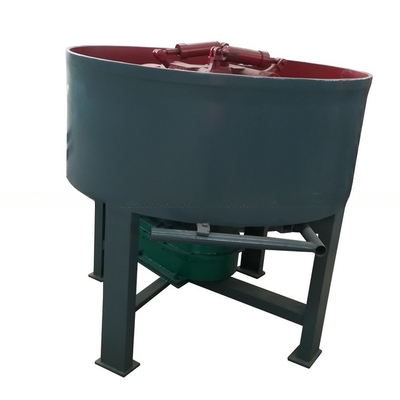

Coal Charcoal Coke Iron Powder Grinding Wheel Roller Mixer Machine with ABB Motor
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion Wheel roller mixer |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $1,000.00/sets >=1 sets |
| Packaging Details: | All products will be processed to be rustproof and moisture proof before delivery. <br>20GP container or 40GP container <br>Equipment is packed with plastic wrap or steel box, depends on machine weight. <br>Motor is packed with steel box or wooden box. <b |
| Supply Ability: | 62 Set/Sets per Quarter Grinding mixer |
|
Detail Information |
|||
| Mixer Type: | Agitator | Barrel Volume (L): | 100 L |
|---|---|---|---|
| Material Processed: | Charcoal | Max. Loading Volume (L): | 500 L |
| Range Of Spindle Speed(r.p.m): | 20 - 44 R.p.m | Max. Loading Capacity: | Depend On Wheel Roller Mixer |
| Weight (KG): | 1000 KG | Condition: | New |
| Application: | Powder | Additional Capabilities: | Milling |
| Voltage: | 220v/380v | Dimension(L*W*H): | Depend On Wheel Roller Mixer Model |
| Power (kW): | 4 KW | Warranty: | 1 Year |
| Key Selling Points: | Easy To Operate | Applicable Industries: | Manufacturing Plant, Home Use, Energy & Mining |
| Showroom Location: | Canada, United States, Pakistan, Mexico, Russia, Thailand | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor |
| Keyword: | Wheel Roller Mixer | Application Scope: | Mix And Grind Coal Wood Charcoal Coke Carbon Black |
| Product Name: | Coal Charcoal Coke Iron Powder Grinding Wheel Roller Mixer | Color: | Customers' Demand |
| Motor: | ABB | Port: | Qingdao Shanghai Tianjin, Lianyungang,Guangzhou |
Product Description
Coal charcoal coke iron powder grinding wheel roller mixer machine factory price from manufacturer
Brief introduction of Wheel roller mixer
Application and usable scope of Wheel roller mixer:
Wheel roller mixer, apply to mixing solid material and liquid amterial in casting workshop, widely applied in various kinds of forming production line. It is a kind of ideal mixing equipment can be easily used in chemical industry, light industry, building materials, and other industries mixing with powder materials.
Wheel roller mixer main specifications and technical parameter:
| Model | Barrel Dia. (mm) | Wheel Size (mm) | In Capacity (kg) | Stir time (min/time) | Spindle speed (r/min) | Power (KW) | Capacity (T/H) | Weight (T) |
| S110 | 1000 | 420*130 | 110 | 3-5 | 44 | 4 | 1-2.2 | 0.92 |
| S112 | 1450 | 590*117 | 200 | 3-5 | 34.7 | 7.5 | 2-4 | 1.6 |
| S114 | 1820 | 750*240 | 300-500 | 3-5 | 34 | 15 | 6-10 | 3.5 |
| S1120 | 2200 | 800*260 | 1000 | 3-5 | 30 | 37 | 10-15 | 5.6 |
Wheel roller mixer working principle:
After the machine is on work, the wheels will run continuously in its pan, the charcoal or coal powder is fed in the pan of a charcoal wheel roller mixer with water as well as briquetting binder for grinding. Water can be fed into for mixing during the process to reach a certain moisture level for briquette making. Till the materials are grinded and mixed well, discharging hole can be opened to obtain all the materials within the charcoal wheel roller.
Features of wheel roller mixer:
1). mix and grind at same time.
2). high production efficiency.
3). energy-saving.
4). easy to install and maintain.
5). good sealing property.
