Rotex Linear Vibrating Screen Machine for Silica Sand Powder As Per Different Model
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $500.00/sets >=1 sets |
|
Detail Information |
|||
| Applicable Industries: | Energy & Mining | Showroom Location: | None |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Condition: | New |
| Type: | LINEAR | Application: | Ore, Glass Granule, Powder, Chemical, Quartz Sand, Silica Sand |
| Voltage: | 380V/415V/440V | Dimension(L*W*H): | As Per Different Model |
| Weight: | KG | Warranty: | 2 Years |
| Installation: | Supply Manual To Guide User | Capacity: | 1-28 Tons Per Hour |
| Feeding Size: | Less Than 5mm | Discharge Size: | 4-80mm |

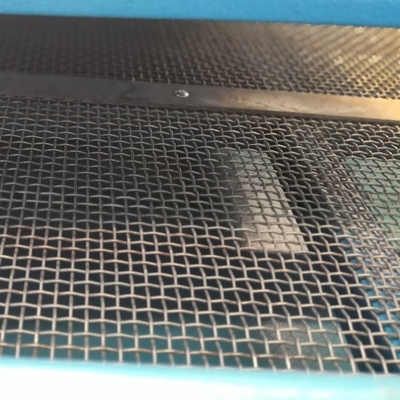

| Screen Deck Number: | 1-5 Layers | Mesh Material: | Manganese Wire Woven Or Stainless Steel Wire Woven |
| Product Name: | Vibrating Screen | Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) |
Product Description

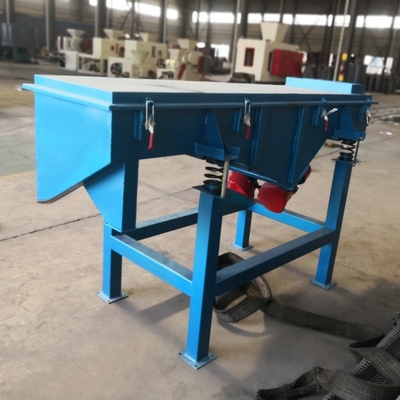

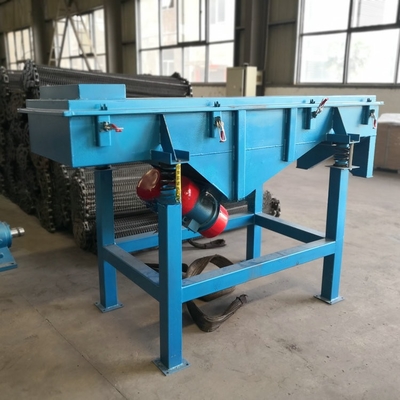

Introduction of Linear Vibrating Screen:

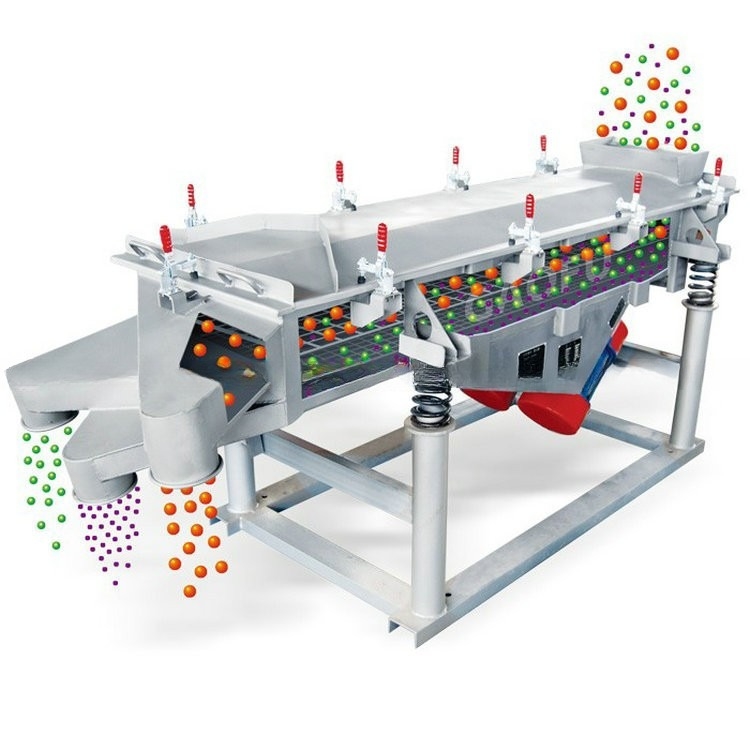

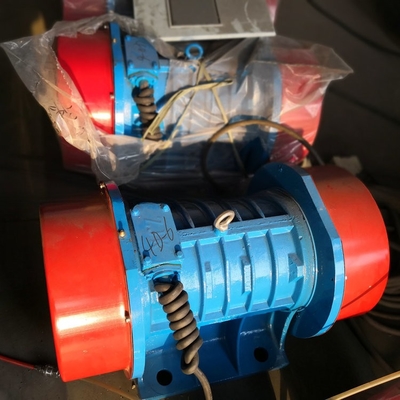

ZDS series linear vibrating screen equips double vibrating motors, which rotate reversely and synchronously. Thus, the excited force geneated by the eccentric block is united in the direction perpendicular to the motor axis while counteracted in the direction parallel to the motor axis, so that the movement trajectory is linear. There is an angle of inclination between two screen decks. Under the function of resultant force generated by exciter force and gravity of materials, these materials are throwed up, leap forward straight ahead along the screen deck, through which the purpose of filter and classification is achieved.
Linear vibrating screen technical parameters:
| Model | Mesh area (W x L in mm) | Feed size (mm) | No. of layers | inclination (degree) | Amplitude (mm) | Motor (KW) |
| ZDS-512 | 500x1200 | 0.074-10 | 1 to 6 | 0 to 7 | 2 to 4 | 2 x (0.4-0.75) |
| ZDS-520 | 500x2000 | 0.074-10 | 1 to 6 | 0 to 7 | 2 to 4 | 2 x (0.4-0.75) |
| ZDS-815 | 800x1500 | 0.074-10 | 1 to 6 | 0 to 7 | 2 to 4 | 2 x (0.4-0.75) |
| ZDS-820 | 800x2000 | 0.074-10 | 1 to 6 | 0 to 7 | 2 to 4 | 2 x (0.4-0.75) |
| ZDS-1020 | 1000x2000 | 0.074-10 | 1 to 6 | 0 to 7 | 2 to 4 | 2 x (0.4-0.75) |
| ZDS-1030 | 1000x3000 | 0.074-10 | 1 to 6 | 0 to 7 | 2 to 4 | 2 x (0.4-1.1) |
| ZDS-1224 | 1200x2400 | 0.074-10 | 1 to 6 | 0 to 7 | 2 to 4 | 2 x (1.1-1.5) |
| ZDS-1230 | 1200x3000 | 0.074-10 | 1 to 6 | 0 to 7 | 2 to 4 | 2 x (1.1-1.5) |
| ZDS-1530 | 1500x3000 | 0.074-10 | 1 to 6 | 0 to 7 | 2 to 4 | 2 x (1.1-2.2) |
| ZDS-1535 | 1500x3500 | 0.074-10 | 1 to 6 | 0 to 7 | 2 to 4 | 2 x (1.1-2.2) |
| ZDS-1560 | 1500x6000 | 0.074-10 | 1 to 6 | 0 to 7 | 2 to 4 | 2 x (2.2-3.7) |
| ZDS-1845 | 1800x4500 | 0.074-10 | 1 to 6 | 0 to 7 | 2 to 4 | 2 x (2.2-3.7) |
| ZDS-2050 | 2000x5000 | 0.074-10 | 1 to 6 | 0 to 7 | 2 to 4 | 2 x (2.2-3.7) |
| ZDS-2260 | 2200x6000 | 0.074-10 | 1 to 6 | 0 to 7 | 2 to 4 | 2 x (2.2-3.7) |
1. Pre-sale service:
1) Sinolion will provide production line design, quotation sheet, working sites video, machinery photos, sample testing(gold ore, tin ore , iron ore, tungsten processing in laboratory).
2) Welcome to visit us at any time, we will pick you up.
2. Sale service:
1) Keep clients updated when our company gets advance payment.
2) Confirm production details with clients.
3) Take photos and send all pictures to customers during production.
4) Inspection and testing the product before delivery;
5) Clients are welcome to inspect the equipment when the equipment are ready to delivery.
6) logistics service if needed.
3. After Sale service:
1) Provide foundation drawing to the clients for installation.
2) Besides, our engineers are available to help with installation and workers training.
3) Repairing and maintenance if any problem during the warranty.
4) Spare parts and wearing parts will be offered with production cost in 10 years.
Question 1: What’s the delivery time after I pay the deposit ?
Answer: We will delivery the goods within 10-15 working days after receipt of the prepayment.
Question 2: Is mineral samples analysis available?
Answer: Sure, we supply samples analysis service for free. After the testing, we will give you the reasonable flow chart, suitable solution and equipment selection.
Question 3: Do you have client in my country?
Answer: Our products have exported to Malaysia, Indonesia, the Philippines, Vietnam, Myanmar, Korea, Singapore, Thailand, Mongolia, Ghana, Sudan, Serbia, Kazakhstan, Canada, Nigeria, Australia, Chile, Brazil, Columbia, Ecuador, Peru, Bolivia, etc
Question 4: How long of your machine quality guarantee terms ?
Answer: Quality guarantee time is one year(wearing parts excluded).
