It mainly used to agitate the liquid adhesive. The agitated adhesive maybe controlled by quantitative vessel or timely controlled by mud pump, and then it will be add to the roller rolling mixing equipment in proportion and mixed with the material. There is a tee on the both bottom of the agitation tank to connect the machine and the mud pump to quantitatively feed the roller rolling mixing equipment.
 |

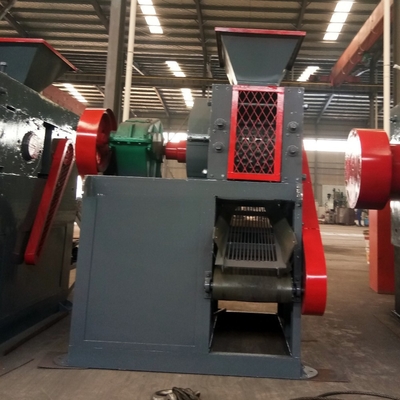

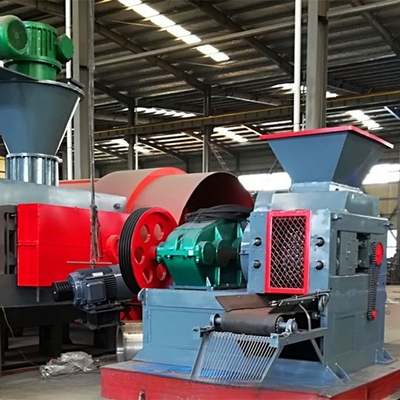

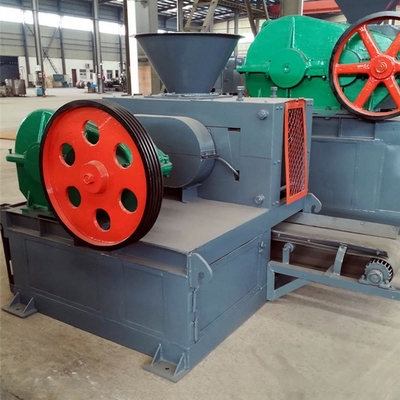

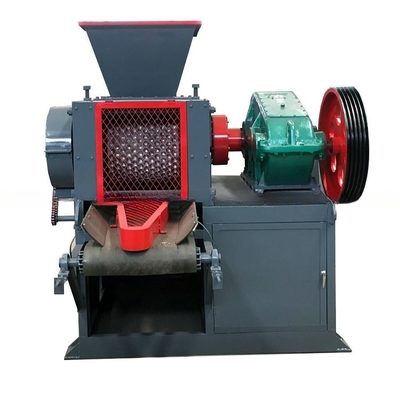

1-30t/h Briquette Machine for Coal Iron Coke Slag Oxidation Iron Sheet in Poland Romania
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $2,000.00/sets >=1 sets |
|
Detail Information |
|||
| Type: | Briquette Machines | Applicable Industries: | Building Material Shops, Manufacturing Plant, Energy & Mining |
|---|---|---|---|
| Weight (KG): | 800 | Showroom Location: | None |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Condition: | New |
| Production Capacity: | 1-30t/h Briquette Machine | Motor Type: | AC Motor |
| Dimension(L*W*H): | Based On Model | Warranty: | 1 Year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Ball Shape: | Oval, Pillow And Oblate |
| Roller Diameter: | 290-1000mm | Roller Material: | 65Mn/9Cr2Mo |
| Applicable Material: | Coal, Charcoal, Carbon Black, Coke, Iron, Fluorite Powder Etc | Material Size: | Less Than 5mm |
| Material Moisture: | Less Than 18% | Spare Parts: | Supply Whole Life Of Briquette Press Machine |
| Factory Visit: | Any Time | Product Name: | Briquette Press Machine |
Product Description
Product Description
Hot sell coal charcoal briquette ball press machine factory price for coal charcoal iron coking coal slag oxidation iron sheet
♥Features of Hot sell briquette press machine
1. Nice price with ISO BV CE.
2. Strong and stable structure, easy, operation and maintain easily.
3. High density, high strength & high hardness because the reasonable design.
4. The machine can be only main machine, or with the matched equipment.
5. Final product size 25-70mm and shape can be round, pillow & square, oval, oblate shape.
6. Customer in South Africa, Mexico, Israel, Russian.etc
7. Different type:roller,high pressure & hydraulic type
8. Roller material can be 65Mn, 9Cr2Mo, Alloy Steel, high-chromium alloy and so on.
9. Final briquettes ratio will at 98 percent because of the advanced design.
Video:
https://www.youtube.com/watch?v=D8ewGbOTrdA
https://www.youtube.com/watch?v=NMpRT-WP8HM
♥Final product feature of briquette press machine
We have test of the final briquettes,it will be not broken when dropped from 200cmheight,meanwhile,when it is in burning time, combustion, no smell and last longer. when it is pressed,we need add the binder into the raw material,but we guarantee the binder will not change the raw material character.
The whole briquette production line will be crusher--conveyor--roller grinder--binder mixer--conveyor- briquette press machine--dryer. conveyore matched process for you according to your raw material and your place.
2. Main Machine information of briquette production line
Binder mixer
Grinding mill mixer
It is specially designed for the agitation machine. It has two rollers and internal & exterior scrapers which make the adhesive material well mixed in short time, when it is agitated and crushed. According to the different proportions of the material, each time adds some material and agitated 3-5 minutes. The machine has automatic discharge device, thus it will be greatly save the labors.
Mesh belt dryer
Mesh belt dryer machine used in briquette production line to dry briquettes
Under the briquetting machine, conveyor conveys the finished briquette to the mesh belt dryer. The mesh belt dryer consist several segments and each part with 2m length, and the total length of head and tail part is 2.5m.
Vertical briquette dryer
For different material briuqettes, we will choose different type dryer, mesh belt dryer is use for dry easy burn briquettes to reduce broken ratio and save place. Vertical dryer used for some mineral briquettes, it will reduce cost compare to mesh belt dryer

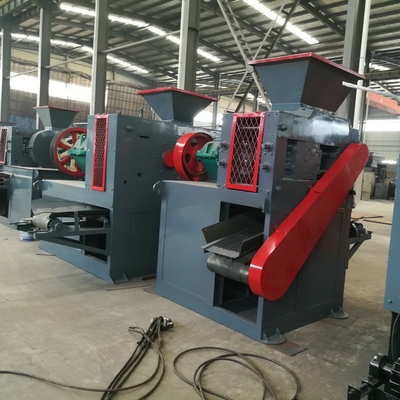

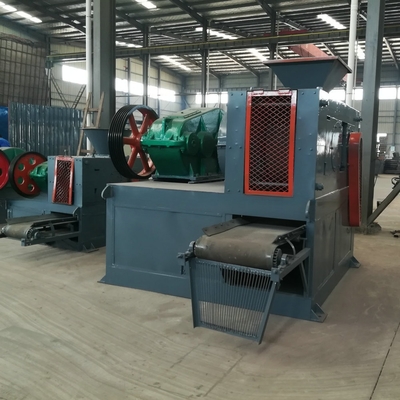

Products Show
Technical Parameter
Pillow shape charcoal briquette machine coking coal charcoal ball press machine main technical parameter | ||||||||||||||
Model | Reducer | Roller Size (mm) | Power (kw) | Yield (t/h) | Roller material | Pressure | Overal size(m) | |||||||
XM290 | ZQ350 | Φ290 | 5.5 | 0.8-2 | 65Mn | 1t/cm | 2.26*1.53*1.76 | |||||||
XM360 | ZQ350 | Φ360 | 7.5 | 2-3.5 | 65Mn | 1t/cm | 2.26*1.53*1.98 | |||||||
XM400 | ZQ400 | Φ400 | 11 | 4-5 | 65Mn/9Cr2Mo | 1t/cm | 2.2*1.38*1.91 | |||||||
XM430 | ZQ400 | Φ430 | 11 | 5-7 | 65Mn/9Cr2Mo | 1-2t/cm | 2.3*1.53*1.9 | |||||||
XM500 | ZQ500 | Φ500 | 18.5-30 | 6-8 | 65Mn/9Cr2Mo | 1-2.5t/cm | 2.61*1.75*2.1 | |||||||
XM650 | ZQ650 | Φ650 | 22 | 8-12 | 65Mn/9Cr2Mo | 1-2.5t/cm | 3.42*2*2.2 | |||||||
XM750 | ZQ750 | Φ750 | 30 -75 | 12-18 | 65Mn/9Cr2Mo | 1-2.5t/cm | 3.7*2.55*2.6 | |||||||
XM850 | ZQ850 | Φ850 | 55-90 | 18-25 | 65Mn/9Cr2Mo | 1-2.5t/cm | 3.9*2.6*2.7 | |||||||
Packing & Delivery
Standard export packing, Spare parts in wooden case, big machines loaded in container, large machines use nude packing, cover with plastic cloth. We export through Qingdao Port, also can be nominated by customer. We have superior cargo agent to arrange the sea shipment for each client, competitive price, secure transportation.
