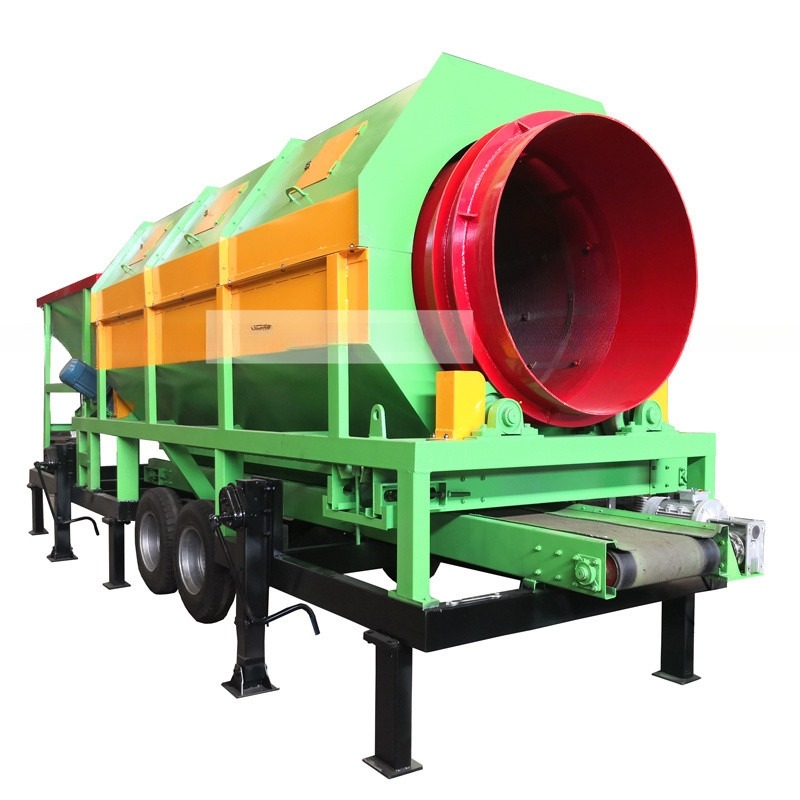

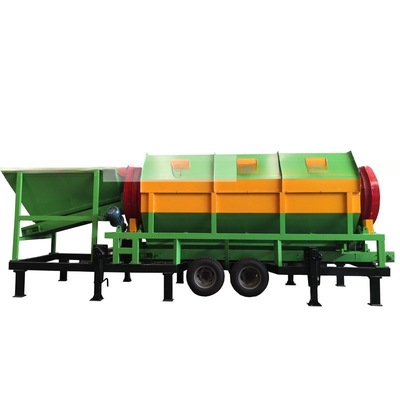

Advanced Heavy Duty Construction Municipal Solid Waste Drum Screen for Garbage Sorting Line
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $1,500.00/sets >=1 sets |
|
Detail Information |
|||
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops | Showroom Location: | Canada, United Kingdom, United States, Germany, Brazil, Mexico, Russia, None |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | Gearbox, Motor | Condition: | New |
| Type: | Compost Trommel Screener | Application: | Topsoil, Compost, Solid, Municipal Soild Waste, Glass, Mulch, Organics, Bark, MSW, Plaster Board |
| Voltage: | 380V/415V/440V( As Client Request) | Dimension(L*W*H): | As Per Different Model |
| Weight: | 2200 KG | Warranty: | 24 Months Excluding Spare Parts |
| Model: | Municipal Solid Waste Drum Screen | Screen Material: | Steel Bar, Steel Plate, Manganese Steel Wire Woven, Stainless Steel |
| Power: | 3-45KW | Dimension: | Depends On Model |
| Installation: | Supply Manual To Guide User | Capacity: | 1-200 Tons Per Hour |
| Feeding Size: | Less Than 300mm | Discharge Size: | Less Than 6mm Or As Request |
Product Description
1 - Feeder system,
2 - Preliminary Sorting (glass, oversized etc. - manual),
3 - Fe - separation,
4 - Sorting (PET, paper, cardboard, film, aluminium etc.)
5 - Baling press,
6 - Container and belt conveyors
The plant can be designed and constructed for different types of waste and capacity. Upgrade for additional functions, baling press and so on possible on request.
Zhengzhou Sinolion machines may be used independently as simple screening systems. or with the addition of more advanced crushing, sorting and blowing machines, can from complete recycling system to produce aggregates.
Heavy duty trommel screen recycling waste specifications:
| Model | Capacity | Power | Screen Diameter | Screen Length | Discharge Size | Input Size | Dimension (L×W×H) | Weight |
| (t/h) | (kw) | (mm) | (mm) | (mm) | (mm) | (mm) | (Kg) | |
| GTS1015 | 50 | 3.0 | 1000 | 1500 | 0~100 | ≤300 | 2600×1400×1700 | 2200 |
| GTS1020 | 100 | 4.0 | 1000 | 2000 | 0~100 | ≤300 | 3390×1400×2140 | 2800 |
| GTS1225 | 160 | 5.5 | 1200 | 2500 | 0~100 | ≤300 | 4146×1600×2680 | 4200 |
| GTS1530 | 250 | 7.5 | 1500 | 3000 | 0~100 | ≤300 | 4460×1900×2820 | 5100 |
| GTS1545 | 350 | 11 | 1500 | 4500 | 0~100 | ≤400 | 5960×1900×3080 | 6000 |
| GTS1848 | 450 | 15 | 1800 | 4800 | 0~100 | ≤400 | 6500×2350×4000 | 7500 |
| GTS2055 | 600 | 22 | 2000 | 5500 | 0~100 | ≤400 | 7500×2550×4800 | 9600 |
| GTS2265 | 800 | 30 | 2000 | 6500 | 0~100 | ≤400 | 8500×2750×5000 | 12800 |
Question 1: What’s the delivery time after I pay the deposit ?
Answer: We will delivery the goods within 10-15 working days after receipt of the prepayment.
Question 2: Is mineral samples analysis available?
Answer: Sure, we supply samples analysis service for free. After the testing, we will give you the reasonable flow chart, suitable solution and equipment selection.
Question 3: Do you have client in my country?
Answer: Our products have exported to Zambia, Cameroon, Tanzania, Malaysia, Indonesia, the Philippines, Vietnam, Myanmar, Korea, Singapore, Thailand, Mongolia, Ghana, Sudan, Serbia, Kazakhstan, Canada, Nigeria, Australia, Chile, Brazil, Columbia, Ecuador, Peru, Bolivia, etc
Question 4: How long of your machine quality guarantee terms ?
Answer: Quality guarantee time is one year(wearing parts excluded).
