Feeding Density 0-50% Gold Panning Knelson Centrifugal Concentrator for Gold Recovery
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $2,800.00/sets >=1 sets |
|
Detail Information |
|||
| Applicable Industries: | Energy & Mining | Showroom Location: | None |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator |
| Production Capacity: | Above 99% | Voltage: | 380V/415V/440V( As Client Request) |
| Dimension(L*W*H): | As Per Different Model | Weight: | 145 KG |
| Warranty: | 1 Year | Marketing Type: | New Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor |
| Key Selling Points: | Automatic | Model Number: | Knelson Gold Centrifugal Concentrator |
| Application: | Gold Sand, Fine Alluvial River Gold, Placer Rock Ore Gold, Vein Gold | Material: | Stainless Steel Or Polyurethane Or Carbon Steel Or Manganese Steel |
| Feeding Size: | 0-5mm | Feeding Density: | 0-50% |
| Gold Centrifugal Concentrator Capacity: | 1-80 Tons Per Hour | Concentrate Weight: | 2-80kg Per Time |
| Gold Concentration Cleaning Pp Cycle: | 1-6 Hours | Installation: | Send Video, CAD Drawing, And Dispatch Engineer |
| Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) | ||
Product Description
Product Description
Product Application knelson gold centrifugal concentrator:
Knelson gold centrifugal concentrator is kind centrifugal concentration equipment for gold. It can be used not only for placer gold mining, but also for hard rock mining to recover the natural gold, replacing amalgamation. It is also used to recover gold from the old tailings. The STLB gold centrifugal concentrator will separate any heavy material from any light material. The gold centrifugal concentrator can treat particle sizes from below 10 microns up to a maximum of 6mm and is most commonly used for recovery in Gold and Platinum. Other recovery uses include mercury, palladium, tantalum, copper, silver and diamond indicator minerals.
Knelson gold centrifugal concentrator technical parameters:
Model | STLB20 | STLB30 | STLB60 | STLB80 | STLB100 | ||||
Feeding capacity (t/h) | 0-0.6 | 2-3 | 8-12 | 35-45 | 70-80 | ||||
Fluidization water required(m3/h) | 2-3 | 3-5 | 7-10 | 30-36 | 55-80 | ||||
Slurry Water Required(m3/h) | 1.5-4 | 5-7 | 8-12 | 35-50 | 70-120 | ||||
Feeding Density(%) | 0-50 | 0-50 | 0-50 | 0-50 | 0-50 | ||||
Feeding size(mm) | 0-3 | 0-3 | 0-5 | 0-5 | 0-5 | ||||
Concentration Cleaning Up Cycle | Vein gold 1-3 Hours Placer gold 2-6 Hours | ||||||||
Concentrate weight(kg) | 2 | 10-20 | 30-40 | 60-70 | 80-90 | ||||
Power (KW) | 0.75 | 1.5 | 4 | 11 | 22 | ||||
Approximate shipping weight(Kg) | 145 | 400 | 1000 | 1500 | 2000 | ||||
Approximate shipping dimensions (mm) | 790x785x790 | 1180x1140x1250 | 1970x1670x1750 | 2300x1800x2200 | 2400x2000x2300 | ||||
Main Features of Gold Centrifugal Concentrator:
1) High recovery rate: Through our test, the recovery rate for placer gold can be 99% or more, for rock gold, the recovery rate could reach 97% when the feeding size is below 7mm.
2) Easy to install: Only a small leveled place required. It's a full line machine, before starting it, we only need to connect the water pump and power.
3) Easy to adjust: There are only 2 factors that will affect the recovery result, they are water pressure and feeding size. By giving proper water pressure and feeding size, you could get the best recovery effect.
4) No pollution: This machine only consumes water and electric power, and exhaust tailing and water. Low noise, no chemical agent involved.
5) Easy to operate: After finishing the water pressure and feeding size adjust, clients only need to recover the concentrates every 2-4 hours. (Depending on the grade of the mine)

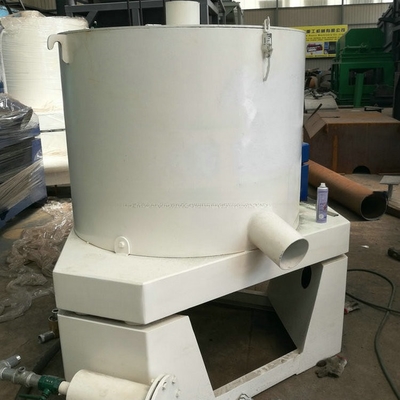

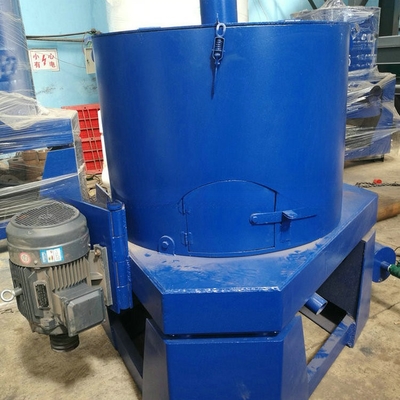

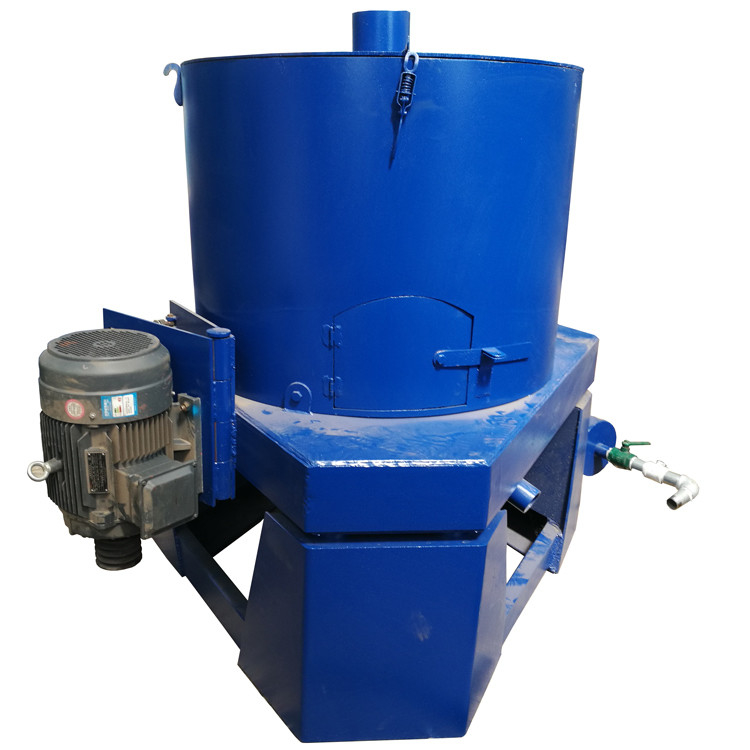

Detailed Images

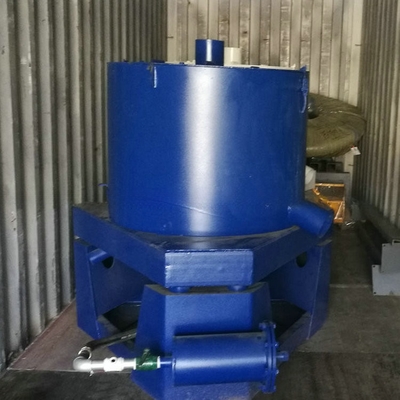

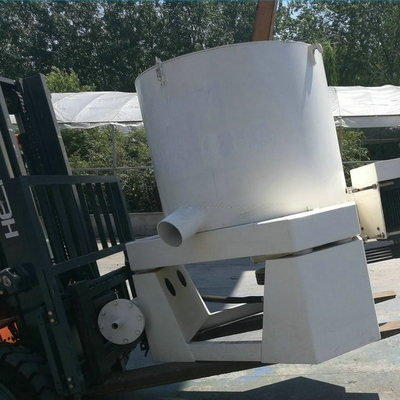

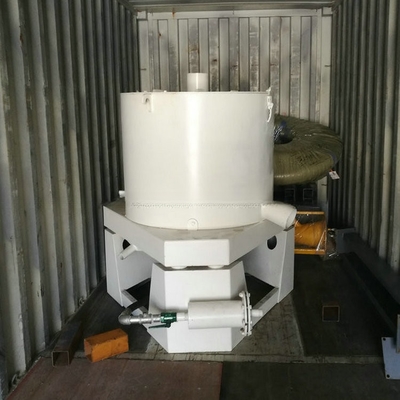

Gold centrifugal concentrator shipment
Gold centrifugal concentrator can be used not only for placer gold mining, but also for hard rock mining to recover the natural
gold, replacing amalgamation. It is also used to recover gold from the old tailings.
gold, replacing amalgamation. It is also used to recover gold from the old tailings.
1. Feed slurry pipe
2. Concentrate cone
3. concentrate discharge pipe
4. Tailing pipe
5. Fluidization water valve
6. Water filter
