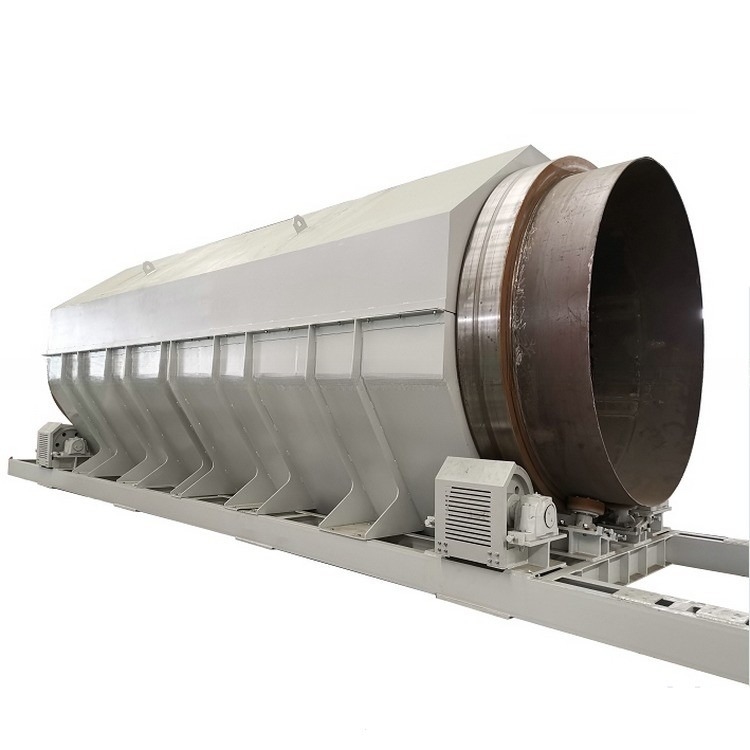

Manual Installation Guide for MSW Trommel Screen and Less Than 300mm Feeding Size
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $1,500.00/sets >=1 sets |
|
Detail Information |
|||
| Applicable Industries: | Energy & Mining | Showroom Location: | Canada, United Kingdom, United States, Saudi Arabia, Russia, Argentina |
|---|---|---|---|
| Condition: | New | Type: | Mineral Separator |
| Production Capacity: | 99% | Voltage: | 380V/415V/440V |
| Dimension(L*W*H): | As Per Different Model | Weight: | 2200 KG |
| Warranty: | 2 Years | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Pump, Gear, PLC |
| Key Selling Points: | Famous Brand Low Voltage Components | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Application: | Glass, Mulch, Organics, Bark, MSW, Municipal Solid Waste | Model: | Trommel Sieve Screen |
| Power: | 3-45KW | Screen Material: | Steel Bar, Steel Plate, Manganese Steel Wire Woven, Stainless Steel |
| Installation: | Supply Manual To Guide User | Capacity: | 1-200 Tons Per Hour |
| Feeding Size: | Less Than 300mm | Discharge Size: | Less Than 6mm Or As Request |
| Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) | ||
Product Description
Product Description
Application of trommel screen washer:
Trommel screen washer provides a simple, efficient and economical solution to upgrade a wide rang of materials and optimize the subsequent process steps of recovery. This method of screening helps to reduce operating and investment cost and to enhance product quality with rapid and large volume processing.
Trommel screen washer provides a simple, efficient and economical solution to upgrade a wide rang of materials and optimize the subsequent process steps of recovery. This method of screening helps to reduce operating and investment cost and to enhance product quality with rapid and large volume processing.
Detailed Images

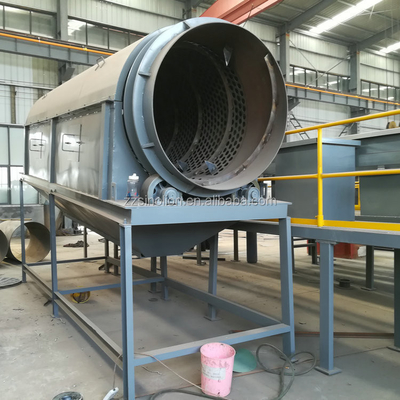

Municipal solid waste trommel working principle:
Trommel is installed in a small angel with the inputend a little higher than the output end. After havingentered into the drum, the material moves along with the drum's rotation.During the rotation and the moving forward,the small sized material dropsthrough the
screen holes,the big sized material will be discharged at the discharging chute at the end.This rotation can make sure thematerial go through enough holes to greatly opti-mize the separation effect.

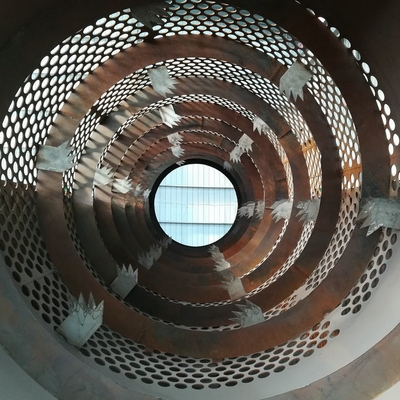

We can design round trommel screen, hexagonal trommel screen according to the different characteristics of solid waste, it has self-cleaning function.
Trommel is installed in a small angel with the inputend a little higher than the output end. After havingentered into the drum, the material moves along with the drum's rotation.During the rotation and the moving forward,the small sized material dropsthrough the
screen holes,the big sized material will be discharged at the discharging chute at the end.This rotation can make sure thematerial go through enough holes to greatly opti-mize the separation effect.
We can design round trommel screen, hexagonal trommel screen according to the different characteristics of solid waste, it has self-cleaning function.
Size Information
Model | Size | Diameter | Length | Throughput | Rotation speed | Inclination | Powder |
（m） | （mm） | （mm） | （t/h） | （r/min） | （%） | （kw） | |
GTS-1109 | 1.1×9 | 1100 | 9000 | 9 | 5-18 | 3-6 | 11 |
GTS-1210 | 1.2×10 | 1200 | 10000 | 15 | 5-18 | 3-6 | 15 |
GTS-1512 | 1.5×12 | 1500 | 12000 | 18 | 5-18 | 3-6 | 22 |
GTS-1815 | 1.8×15 | 1800 | 15000 | 25 | 5-18 | 3-6 | 37 |
GTS-2016 | 2×16 | 2000 | 16000 | 30 | 5-18 | 3-6 | 45 |
GTS-2216 | 2.2×16 | 2200 | 16000 | 35 | 5-18 | 3-6 | 45 |
GTS-2220 | 2.2×20 | 2200 | 20000 | 40 | 5-18 | 453-6 | 45 |
GTS-2520 | 2.5×20 | 2500 | 20000 | 45 | 5-18 | 3-6 | 55 |
Packing&Shipping

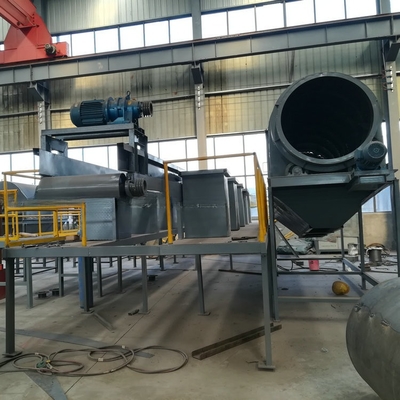

Municipal solid waste trommel GTS-2012 shipment to Nicaragua
After Sales Service
After Sales Service
1) Provide foundation drawing to the clients for installation.
2) Besides, our engineers are available to help with installation and workers training.
3) Repairing and maintenance if any problem during the warranty.
4) Spare parts and wearing parts will be offered with production cost in 10 years.
2) Besides, our engineers are available to help with installation and workers training.
3) Repairing and maintenance if any problem during the warranty.
4) Spare parts and wearing parts will be offered with production cost in 10 years.
Our Services & Strength
Sinolion will provide production line design, quotation sheet, working sites video, machinery photos, sample testing(gold ore ,iron ore processing in laboratory).
2) Welcome to visit us at any time, we will pick you up.
2) Welcome to visit us at any time, we will pick you up.
Customer Visit
Company Introduction
Zhengzhou Sinolion Machinery Co., Ltd. is a high-tech company which professional manufacturing the production of municipal solid waste soring machine, screening machine and mining machinery.
After 30 years of development, Sinolion is now setting up branches, integrating engineering, trade, research and development, production and sale to develop to be a large sized enterprise. Sinolion has modern standard workshops, as well as advanced technology and testing equipment. Extensively cooperating with coal research institutions and other research departments, Sinolion has continuously improved product values and performance. Now, 10,000-300,000 tons briquette production lines are renowned in domestic and foreign markets, and Sinolion products have been exported to Indonesia, Kazakhstan, Vietnam, North Korea, Egypt and other countries and regions. It is ideal equipment for briquetting mine power in the world market.
Sinolion provides space planning and design, equipment installation and commissioning support. Our company persists in the philosophy of ''quality for survival, reputation and development'', and Sinolion strives to build a world well known brand to satisfy customers in order to let them rest assured with comfort. Sinolion Company is willing to take full use of the new technology, dedicated to providing superior products with reliable quality, favorable prices and perfect service for users who need us to design, manufacture and install coal production lines.
We will continue to adhere to "Quality is our eternal pursuit and pride", create new glories with customers!
After 30 years of development, Sinolion is now setting up branches, integrating engineering, trade, research and development, production and sale to develop to be a large sized enterprise. Sinolion has modern standard workshops, as well as advanced technology and testing equipment. Extensively cooperating with coal research institutions and other research departments, Sinolion has continuously improved product values and performance. Now, 10,000-300,000 tons briquette production lines are renowned in domestic and foreign markets, and Sinolion products have been exported to Indonesia, Kazakhstan, Vietnam, North Korea, Egypt and other countries and regions. It is ideal equipment for briquetting mine power in the world market.
Sinolion provides space planning and design, equipment installation and commissioning support. Our company persists in the philosophy of ''quality for survival, reputation and development'', and Sinolion strives to build a world well known brand to satisfy customers in order to let them rest assured with comfort. Sinolion Company is willing to take full use of the new technology, dedicated to providing superior products with reliable quality, favorable prices and perfect service for users who need us to design, manufacture and install coal production lines.
We will continue to adhere to "Quality is our eternal pursuit and pride", create new glories with customers!
Welcome to Sinolion for visiting and seeking common development.
FAQ
Question 1: What’s the delivery time after I pay the deposit ?
Answer: We will delivery the goods within 10-15 working days after receipt of the prepayment.
Answer: We will delivery the goods within 10-15 working days after receipt of the prepayment.
Question 2: Is mineral samples analysis available?
Answer: Sure, we supply samples analysis service for free. After the testing, we will give you the reasonable flow chart, suitable solution and equipment selection.
Question 3: Do you have client in my country?
Answer: Our products have exported to Malaysia, Indonesia, the Philippines, Vietnam, Myanmar, Korea, Singapore, Thailand, Mongolia, Ghana, Sudan, Serbia, Kazakhstan, Canada, Nigeria, Australia, Chile, Brazil, Columbia, Ecuador, Peru, Bolivia, etc
Question 4: How long of your machine quality guarantee terms ?
Answer: Quality guarantee time is one year(wearing parts excluded).
