Product Details:
| Place of Origin: | China |
| Brand Name: | Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $1,500.00/sets >=1 sets |
|
Detail Information |
|||
| Applicable Industries: | Energy & Mining | Showroom Location: | None |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Condition: | New |
| Type: | Rotary Sieve | Application: | Sawdust, Firewood, Topsoil, Compost, Solid, Municipal Soild Waste, Mulch, Organics, Bark, Municipal Solid Waste |
| Voltage: | 380V/415V/440V( As Client Request) | Dimension(L*W*H): | As Per Different Model |
| Weight: | 2200 KG | Warranty: | 1 Year |
| Product Name: | Vibration Compost Rotary Sieve Screen | Model: | Rotary Sieve |
| Power: | 3-45KW | Screen Material: | Steel Bar, Steel Plate, Manganese Steel Wire Woven, Stainless Steel |
| Installation: | Supply Manual To Guide User | Capacity: | 1-200 Tons Per Hour |
| Feeding Size: | Less Than 300mm | Discharge Size: | Less Than 6mm Or As Request |
| Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) | ||
Product Description

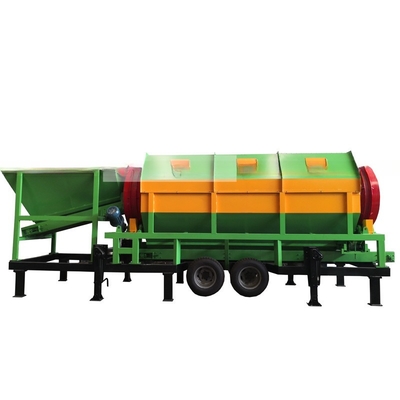

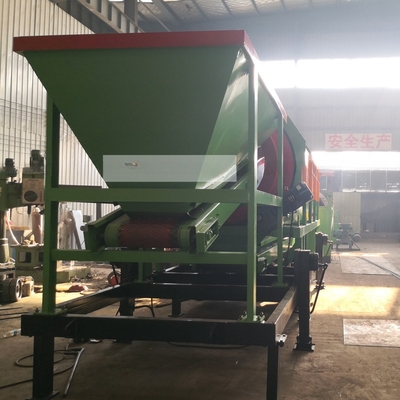

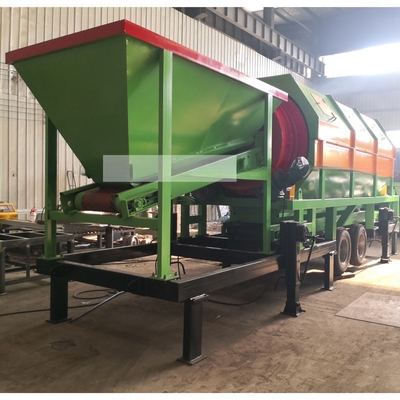

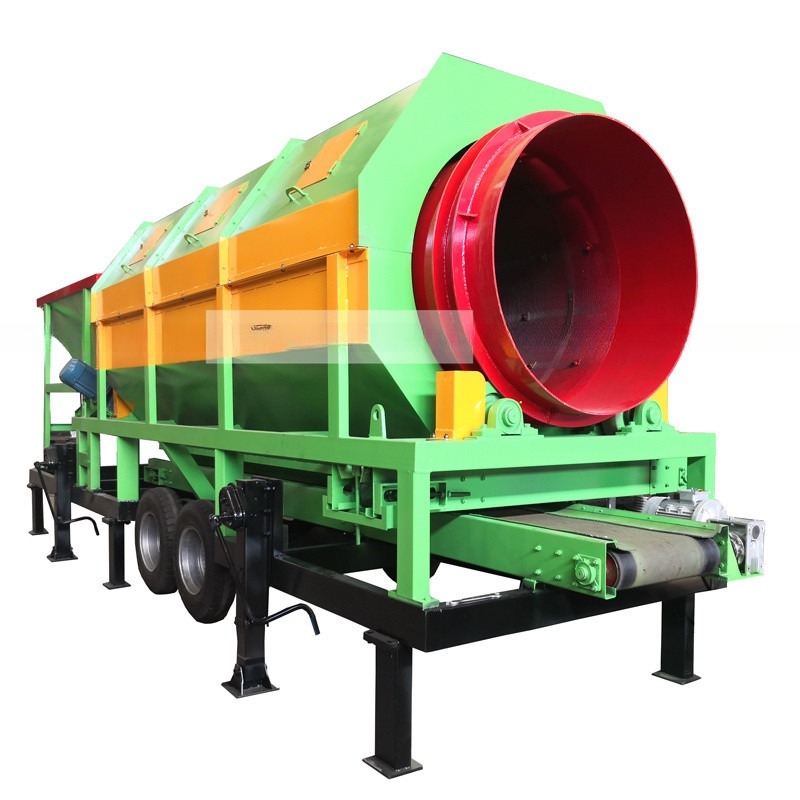

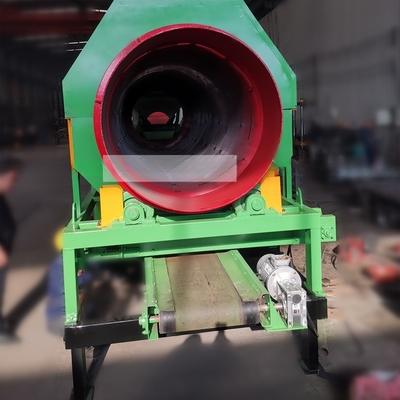

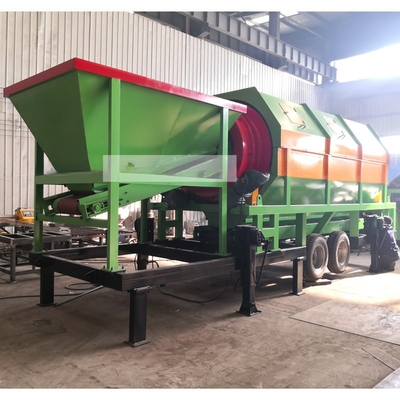

Rotary sieve material feeds into the drum, is lifted up by the rotation and aerated as it falls back down. This action is repeated with each revolution along the length of the drum. The finer material passes through the screen openings while the larger material tumbles towards its eventual exit at the rear of the drum.
Rotary sieve functions: configured for classification, screening, grading, washing
Rotary sieve type: open type, closed type.
Rotary sieve construction: carbon steel, stainless steel.
Rotary sieve applications: widely used in compost, food waste, glass, wood mulch, organics, shredded plastic, topsoil, wood waste, ssphalt shingles, bark, municipal solid waste, chemical, coal, construction, gold mine, plastic, quarry, recycling, metallurgy, mineral-selecting industries, etc.
Rotary sieve specifications:
| Model | Capacity | Power | Screen Diameter | Screen Length | Discharge Size | Input Size | Dimension (L×W×H) | Weight |
| (t/h) | (kw) | (mm) | (mm) | (mm) | (mm) | (mm) | (Kg) | |
| GTS1015 | 50 | 3.0 | 1000 | 1500 | 0~100 | ≤300 | 2600×1400×1700 | 2200 |
| GTS1020 | 100 | 4.0 | 1000 | 2000 | 0~100 | ≤300 | 3390×1400×2140 | 2800 |
| GTS1225 | 160 | 5.5 | 1200 | 2500 | 0~100 | ≤300 | 4146×1600×2680 | 4200 |
| GTS1530 | 250 | 7.5 | 1500 | 3000 | 0~100 | ≤300 | 4460×1900×2820 | 5100 |
| GTS1545 | 350 | 11 | 1500 | 4500 | 0~100 | ≤400 | 5960×1900×3080 | 6000 |
| GTS1848 | 450 | 15 | 1800 | 4800 | 0~100 | ≤400 | 6500×2350×4000 | 7500 |
| GTS2055 | 600 | 22 | 2000 | 5500 | 0~100 | ≤400 | 7500×2550×4800 | 9600 |
| GTS2265 | 800 | 30 | 2000 | 6500 | 0~100 | ≤400 | 8500×2750×5000 | 12800 |
Rotary sieve:
Application of rotary sieve :
1) Quarry: suitable for screening and classifying gravel, clay, mountain meal, sand, etc.
2) Coal Industry: suitable for screening and classifying lump coal, coal dust, coal washing, etc.
3) Chemical: fertilizer industry etc.
4) Mineral-selecting Industry: suitable for grading and classifying lump, powder substance, etc.
5) Metallurgy, construction, building materials, abrasives, and other industries.
1. Pre-sale service:
1) Sinolion will provide production line design, quotation sheet, working sites video, machinery photos, sample testing(gold ore, tin ore , iron ore, tungsten processing in laboratory).
2) Welcome to visit us at any time, we will pick you up.
2. Sale service:
1) Keep clients updated when our company gets advance payment.
2) Confirm production details with clients.
3) Take photos and send all pictures to customers during production.
4) Inspection and testing the product before delivery;
5) Clients are welcome to inspect the equipment when the equipment are ready to delivery.
6) logistics service if needed.
3. After Sale service:
1) Provide foundation drawing to the clients for installation.
2) Besides, our engineers are available to help with installation and workers training.
3) Repairing and maintenance if any problem during the warranty.
4) Spare parts and wearing parts will be offered with production cost in 10 years.
Question 1: What’s the delivery time after I pay the deposit ?
Answer: We will delivery the goods within 10-15 working days after receipt of the prepayment.
Question 2: Is mineral samples analysis available?
Answer: Sure, we supply samples analysis service for free. After the testing, we will give you the reasonable flow chart, suitable solution and equipment selection.
Question 3: Do you have client in my country?
Answer: Our products have exported to Malaysia, Indonesia, the Philippines, Vietnam, Myanmar, Korea, Singapore, Thailand, Mongolia, Ghana, Sudan, Serbia, Kazakhstan, Canada, Nigeria, Australia, Chile, Brazil, Columbia, Ecuador, Peru, Bolivia, etc
Question 4: How long of your machine quality guarantee terms ?
Answer: Quality guarantee time is one year(wearing parts excluded).
