6.5-10T Small Soil Screener for Precise Compost and Organic Material Sieving
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $4,100.00 - $28,750.00/sets |
| Packaging Details: | All products will be processed to be rustproof and moisture proof before delivery. <br>20GP container or 40GP container <br>Equipment is packed with plastic wrap or steel case, depends on machine weight. <br>Motor is packed with steel case or wooden case. |
| Supply Ability: | 50 Set/Sets per Month gold trommel screening plant |
|
Detail Information |
|||
| Applicable Industries: | Food & Beverage Shops | Showroom Location: | None |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Gear, Pump | Condition: | New |
| Type: | Circular | Application: | Ore, Alluvial Gold Washing, Diamond, Rock, Soil, River Gold |
| Voltage: | 380V/415V/440V( As Client Request) | Dimension(L*W*H): | As Per Different Model |
| Weight: | 2200 KG, 6.5-10T | Warranty: | 1 Year |
| Product Name: | Small Soil Screener Use For Compost Organic Soil Sieving | Model: | Waste Sorting And Recycling |
| Power: | 5.5KW, 7.5KW, 11KW | Dimension: | Depends On Model |
| Capacity: | 30-150 Tons Per Hour | Feeding Size: | Less Than 300mm |
| Discharge Size: | Less Than 6mm | Port: | Qingdao, Tianjin, Lianyungang, Shanghai Guangzhou( As Client Request) |
Product Description

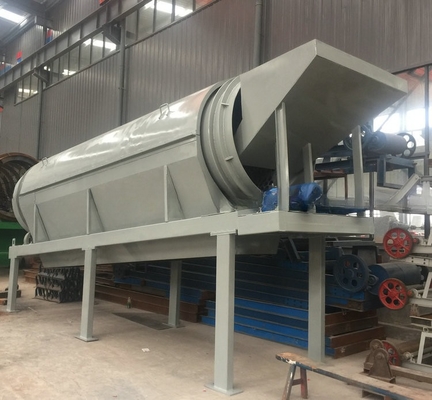

Small soil screener Use for compost organic soil sieving
Garbage trommel screen is positioned at the beginning of the equipment line, replacing the need for multiple pieces of equipment. All our trommel screens are engineered with simple, energy efficient design that utilizes gravity and centrifugal force to reduce maintenance and separate different material sizes from the waste stream.
Shaftless trommel screen working principle:
Due to the turning and rolling of the material in the screen drum, the material stuck in the screen hole can be ejected to prevent the screen hole from being clogged. GTS series shaftless trommel screen machine mainly consists of motor, gearbox, screen drum, frame, sealing cover, inlet and outlet. The screen drum is mounted obliquely on the frame. The motor is coupled to the drum unit via a coupling through a reducer to drive the screen drum unit to rotate about its axis. After the material enters the screen drum, due to the tilting and rotation of drum screen, the material on the screen surface is turned over and rolled, so that the qualified material (the product under the sieve) is discharged through the screen, and the unqualified material (the product on the sieve) ) is discharged through the end of the screen drum.
1. lowering initial investment cost (comparative price)
2. saving operational cost (outstanding durability and simple mechanical structure)
3. reducing any additional cost in the future (high productivity & mobility)
4. GTS series can precisely select gold dust in highest yield rate of 98%.
5. High gold dust gathering capability by long-time and non-stop operation
| Model | Capacity (t/h) | Motor (kw) | Drum size (mm) | Feed Size (mm) | Overall size (mm) | Weight (KG) |
| GTS-1015 | 5-20 | 3 | 1000×1500 | less than 200 mm | 2600×1400×1700 | 2200 |
| GTS-1020 | 10-30 | 4 | 1000×2000 | less than 200 mm | 3400×1400×2200 | 2800 |
| GTS-1225 | 20-80 | 5.5 | 1200×2500 | less than 200 mm | 4200×1500×2680 | 4200 |
| GTS-1530 | 30-100 | 7.5 | 1500×3000 | less than 200 mm | 4500×1900×2820 | 5100 |
| GTS-1545 | 50-120 | 11 | 1500×4500 | less than 200 mm | 6000×1900×3080 | 6000 |
| GTS-1848 | 80-150 | 15 | 1800×4800 | less than 200 mm | 6500×2350×4000 | 7500 |
| GTS-2055 | 120-250 | 22 | 2000×5500 | less than 200 mm | 7500×2350×4800 | 9600 |
| GTS-2265 | 200-350 | 30 | 2200×6500 | less than 200 mm | 8500×2750×5000 | 12800 |
