Product Details:

Place of Origin: Henan, China
Brand Name: ZHENGZHOU SINOLION

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $4,080.00/sets >=1 sets
Get Best Price Contact Now

Detail Information
Applicable Industries: Manufacturing Plant, Farms, Construction Works , Energy & Mining, Other, Environmental Friendly, Metallurgical Industry, Chemical Industry Showroom Location: Canada, United States, Italy, Germany, Philippines
Condition: New Type: Gravity Separator, Mobile
Production Capacity: 5-10t/h Voltage: 220V/380V/440V
Dimension(L*W*H): 3.0m*0.8m*1.6m Weight: 400 KG
Warranty: 1 Year Marketing Type: Ordinary Product
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: Motor, Pump, Engine
Key Selling Points: Easy To Operate Application: Gold
Product Name: Gold Mining Machine Keywords: Gold Separation Machine
Name: Gold Mining Wash Plant Color: Customized Making
Capacity: 5-10T/H Recovery Rate: 94-98%
Usage: Mining Concentration Processed Materials: Grained Gold

Product Description

Product Description
The mobile gold trommel screen is a movable gold selection platform, mainly used in dry land, beaches, and ancient rivers. It is a kind of gravity mineral processing equipment, which has the characteristics of less investment, less labor, quick return on investment, simple operation, and flexibility.
5-10t/h High cost-effectiveness Mineral Separator Gold Diamond Mining Trommel Screen 0
GMTS 0519
Coil diameter: 500mm
Warehouse length: 1910mm
Power: 5.5HP/ 1.5Kw
Capacity: 5-10 tons/hour
The size of the feed port：≤300mm
The size of the outlet： 0-100mm
Nozzle material: seamless pipe Nozzle Diameter: 42 mm
Hopper size: 800*790mm
Round steel diameter: 20 mm
Round bar size: 50 mm
Hopper volume: 0.5 m3
Working Principle
The trommel screen is mainly composed of a motor, a reducer, a drum device, a frame, and a material inlet and outlet. The motor is connected with the roller device through the reducer through the coupling, and drives the roller device to rotate around its axis.
5-10t/h High cost-effectiveness Mineral Separator Gold Diamond Mining Trommel Screen 1

Raw material loading

Raw materials input through the inlet of the hopper will be pushed into the sieve by the strong water pressure of the spray head installed in the hopper.
5-10t/h High cost-effectiveness Mineral Separator Gold Diamond Mining Trommel Screen 2

Washing

Through the rotation of the drum sieve, the raw material is washed by water and selected through the gold pan.
5-10t/h High cost-effectiveness Mineral Separator Gold Diamond Mining Trommel Screen 3

Fine gold collection

The light soil and sand are washed away by the water, and the heavier gold will gather in the gold pan.
5-10t/h High cost-effectiveness Mineral Separator Gold Diamond Mining Trommel Screen 4
5-10t/h High cost-effectiveness Mineral Separator Gold Diamond Mining Trommel Screen 5

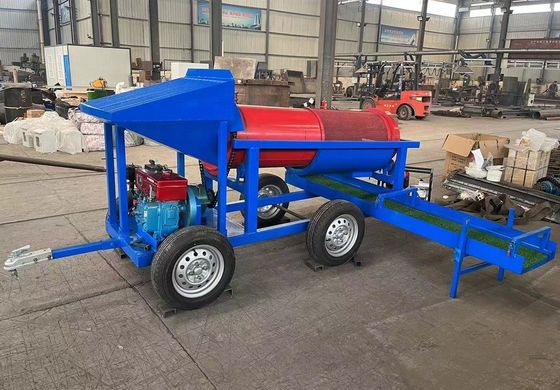

This GMTS0519 model generator can be equipped with motor, diesel engine or gasoline engine.
Product packaging
5-10t/h High cost-effectiveness Mineral Separator Gold Diamond Mining Trommel Screen 6
5-10t/h High cost-effectiveness Mineral Separator Gold Diamond Mining Trommel Screen 7
Gold rush line
5-10t/h High cost-effectiveness Mineral Separator Gold Diamond Mining Trommel Screen 8
Our company
5-10t/h High cost-effectiveness Mineral Separator Gold Diamond Mining Trommel Screen 9

Zhengzhou Sinolion Machinery Co.,Ltd.

We are a high-tech company which professional manufacturing the production of mineral
processing equipment and municipal solid waste sorting plant, we supply complete solution design and service.
5-10t/h High cost-effectiveness Mineral Separator Gold Diamond Mining Trommel Screen 10

Our Core Advantages as below :

1.+30 years history FACTORY at mining machinery
2.Provide engineer team after sales service
3.Provide Complete set mineral processing plant
4.Provide Sample testing service in factory lab for free
5.Provide professional Mining Solution Consulting
Certifications
5-10t/h High cost-effectiveness Mineral Separator Gold Diamond Mining Trommel Screen 11
5-10t/h High cost-effectiveness Mineral Separator Gold Diamond Mining Trommel Screen 12
5-10t/h High cost-effectiveness Mineral Separator Gold Diamond Mining Trommel Screen 13
Contact us
5-10t/h High cost-effectiveness Mineral Separator Gold Diamond Mining Trommel Screen 14
Could you tell me the following questions, so that I can give you a complete solution, including best Exw-works Price Quotation!
1. What is the material you want to process? Is the gold in the soil? It would be appreciated if you could send us a picture of your material. 2. How many tons of material do you want to process per hour?
Sincerely welcome to send your inquiry, you can get best quotation and professional service!
