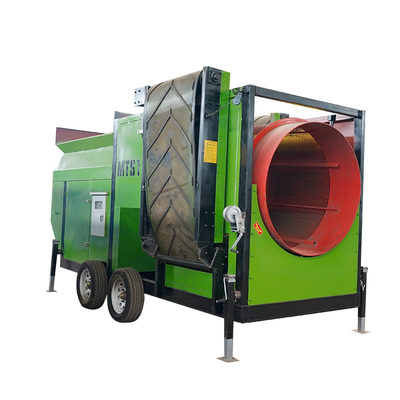

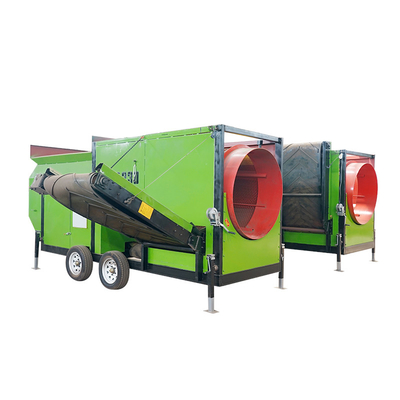

Circular Trommel Screen System for Recycling MSW and C D Waste into Refuse Derived Fuel
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion |
| Certification: | ISO9001:2008 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $4,100.00/sets >=1 sets |
|
Detail Information |
|||
| Applicable Industries: | Energy & Mining | Showroom Location: | None |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Condition: | New |
| Type: | Circular | Application: | Fertilizer, Manure, Compost, Solid, Municipal Soild Waste, Rdf, Compost, Construction & Demolition C&D, Glass, Mulch, Organics, MSW |
| Voltage: | 380V/415V/440V | Dimension(L*W*H): | As Per Different Model |
| Weight: | 2200 KG | Warranty: | 1 Year |
| Power: | 3-30KW | Dimension: | Depends On Model |
| Installation: | Supply Manual To Guide User | Capacity: | 30-150 Tons Per Hour |
| Feeding Size: | Less Than 300mm | Discharge Size: | Less Than 6mm |
| Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) | ||
Product Description
We supply all equipments for MSW to compost / RDF projects. Our Range includes Trommel Screen , Conveyors , Hydraulic baling machine.
We are pioneers in Municipal solid waste management projects and have supplied number of projects of various capacities all over world . We give customized solutions to suite different requirements. The quality of equipments is best in it's class and comes with our 30 year experiance in the field .
Our Product range includes trommel screens, conveyors, Hydraulc baling machine, Shredders, magnetic separators, Elevators, and many more.
Trommel screens are ideal for screening compost, food waste, glass, wood mulch, organics, shredded plastic, topsoil, wood waste, ssphalt shingles, bark, MSW and compost materials for use as landscaping and soil amendment products.
More videos are available, please send me inquiry or your email address for Municipal Solid Waste MSW Trommel Screen video.
Waste trommel screen is usually designed with bag opener to be integrated with trommel screen, i.e., a rotary body with screen net. The blades to open the bags will be mounted on the inside wall of rotary body. When the bagged garbage is fed into the front part of drum, the bags will be tossed along with the rotation of the drum and fall onto the blades and get stabbed through, repeating for several times and the bags will be opened. In the mean time, it also functions as bulk material separation. It is with simple structure and corrosion-resistant and it is convenient to maintain the blades, economic and practical.
Sinolion offers a wide range of sizes and capacities, custom built one at a time and tailored to the needs of individual customers. Built for heavy duty applications they’re designed to provide years of trouble-free separation. Sinolion trommel Screens provide precise classification of a wide range of material, with multiple classifications available from one unit.
Zhengzhou Sinolion machines may be used independently as simple screening systems. or with the addition of more advanced crushing,sorting and baling machine.
Features of waste recycling trommel screen:
. Configured for economical & efficient classification, screening and grading
· Heavy duty trommel drum with lifters at the front to facilitate material break up
· Screen replaceable for different mesh sizes
· Multiple screen size
· Easily changed screen plates
· Largest processing capacity in the industry
· Unique screen design, result in higher capacities, longer screen life and no material clogging
· Heavy duty feed hopper and extension
· Discharge chute
· Gear drive mechanism
· Variable speed drive mechanism
Waste recycling trommel screen specifications:
| Model | Trommeldiameter (mm) | Trommel length (mm) | Capacity (m3/h) | motor power(KW) | Weight (Kg) | Dimensions (L*W*H) |
| MTS0818 | 800 | 1800 | ≤15 | 2.4 | 650 | 3.15*1.1*1.65 |
| MTS1022 | 1000 | 2200 | ≤30 | 8.2 | 2750 | 4.3*1.9*2.45 |

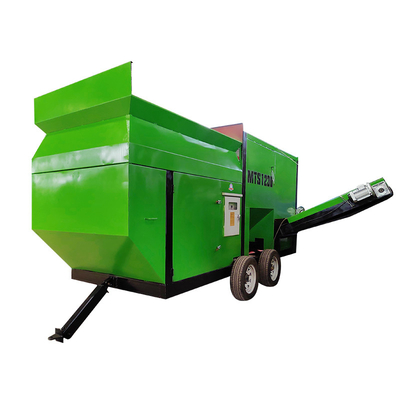

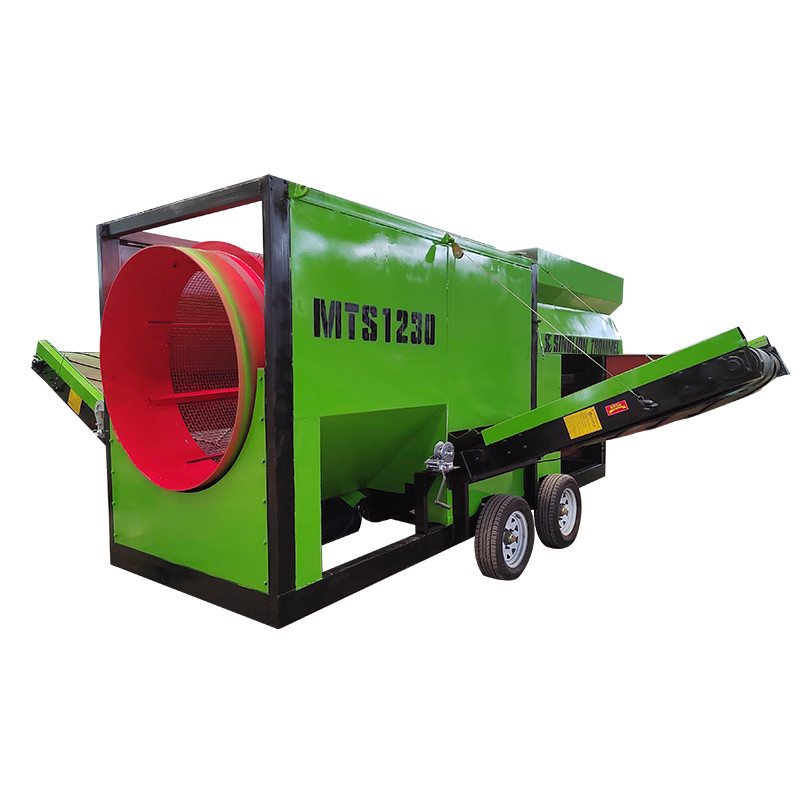

| MTS1230 | 1200 | 3000 | ≤60 | 10.6 | 3210 | 5.4*2.1*2.7 |

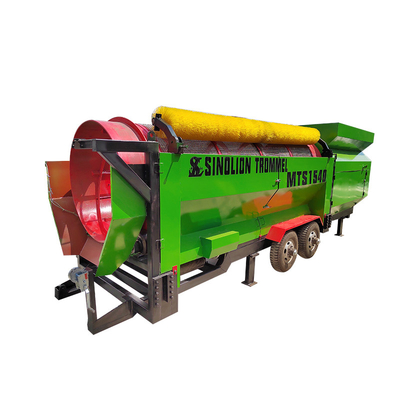

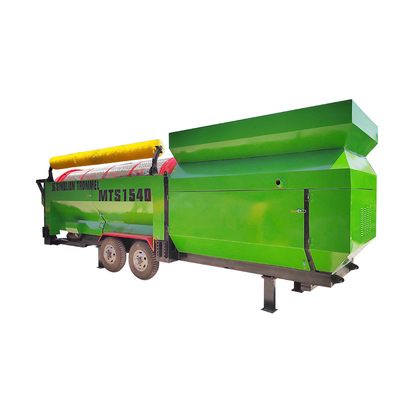

| MTS1550 | 1500 | 5000 | ≤90 | 20 | 7900 | 9.4*2.2*2.9 |
Municipal Solid Waste MSW Trommel Screen working site from Sinolion's Customers
1. Pre-sale service:
1) Sinolion will provide production line design, quotation sheet, working sites video, machinery photos, sample testing(gold ore, tin ore , iron ore, tungsten processing in laboratory).
2) Welcome to visit us at any time, we will pick you up.
2. Sale service:
1) Keep clients updated when our company gets advance payment.
2) Confirm production details with clients.
3) Take photos and send all pictures to customers during production.
4) Inspection and testing the product before delivery;
5) Clients are welcome to inspect the equipment when the equipment are ready to delivery.
6) logistics service if needed.
3. After Sale service:
1) Provide foundation drawing to the clients for installation.
2) Besides, our engineers are available to help with installation and workers training.
3) Repairing and maintenance if any problem during the warranty.
4) Spare parts and wearing parts will be offered with production cost in 10 years.
Question 1: What’s the delivery time after I pay the deposit ?
Answer: We will delivery the goods within 10-15 working days after receipt of the prepayment.
Question 2: Is mineral samples analysis available?
Answer: Sure, we supply samples analysis service for free. After the testing, we will give you the reasonable flow chart, suitable solution and equipment selection.
Question 3: Do you have client in my country?
Answer: Our products have exported to Malaysia, Indonesia, the Philippines, Vietnam, Myanmar, Korea, Singapore, Thailand, Mongolia, Ghana, Sudan, Serbia, Kazakhstan, Canada, Nigeria, Australia, Chile, Brazil, Columbia, Ecuador, Peru, Bolivia, etc
Question 4: How long of your machine quality guarantee terms ?
Answer: Quality guarantee time is one year(wearing parts excluded).
More videos are available, please send me inquiry or your email address for Municipal Solid Waste MSW Trommel Screen video.
