Small Scale Model Portable Gold Washing Trommel Screen for 5-10t/h Construction Works
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | ZHENGZHOU Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $4,080.00/sets |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Construction Works , Energy & Mining | Showroom Location: | Canada, United Kingdom, United States, Germany |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator |
| Production Capacity: | 5-10t/h | Voltage: | 220V/380V/440V |
| Dimension(L*W*H): | 3.0m*0.8m*1.6m | Weight: | 400 KG |
| Warranty: | 1 Year | Marketing Type: | New Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Pump, Engine |
| Key Selling Points: | PORTABLE | Application: | Gold |
| Product Name: | Gold Mining Machine | Keywords: | Alluvial Gold Mining Machine |
| After-sales Service Provided: | Service Machinery Overseas | Usage: | Mining Separatoion |
| Capacity: | 5-10t/h | Material: | Steel |
| Advantage: | Professional | Color: | Based On Customer's Needs |
| Function: | Screening\separation\sorting\sieving | ||
Product Description
Product Description

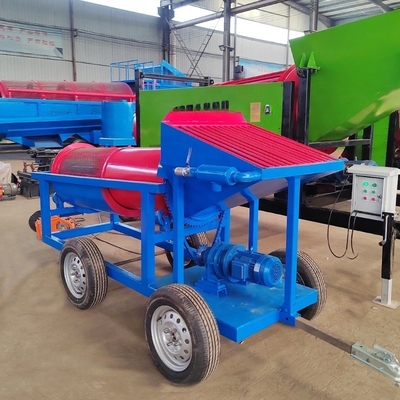

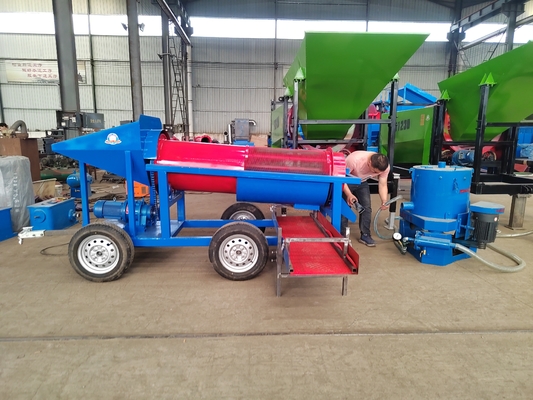

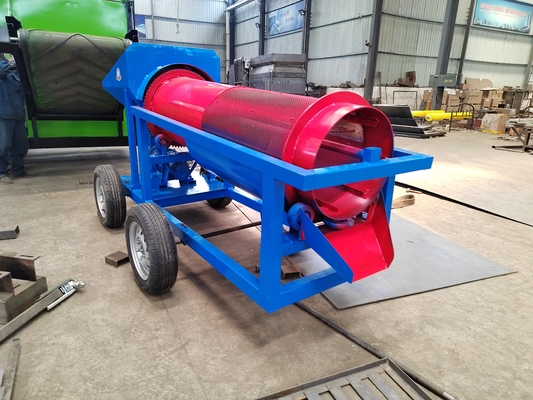

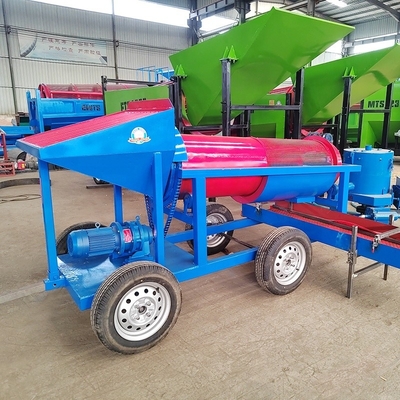

Gold mobile trommel screen 0519
This small mobile gold trommel screen is designed with a single-layer manganese wire screen, so the weight of the entire cylinder is relatively light, which has the advantages of reducing the weight of the entire equipment and energy consumption. In addition, this equipment is also equipped with a gold sluice, which further improves the recovery rate of gold. The front of the equipment is also equipped with traction for easy movement.And its power source can be electric motor, diesel engine or gasoline engine, which can be equipped according to the needs of customers.
Working Principle
The motor reducer is connected through a coupling, and the roller is driven to rotate through a chain. When the material enters the drum device, due to the inclination and rotation of the drum device, the material on the screen surface is turned and rolled, and the qualified material is discharged through the discharge port at the bottom of the rear end of the drum device. Drum, unqualified materials are discharged from the discharge port at the end of the drum. freed.
Product Details

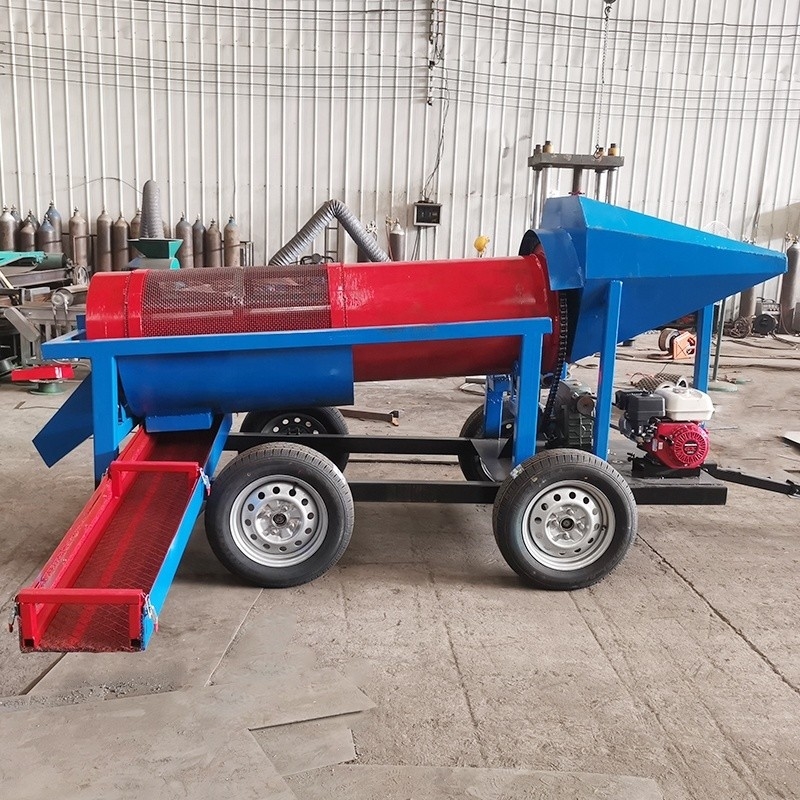

Gasoline engine
Diesel engine
Hopper size is 800*790mm Grille Material: Steel
Round steel diameter：20 mm
Round bar spacing：50 mm
Hopper volume：0.5 m³
The screen is woven with manganese wire. There is a tin-plated seamless nozzle with a diameter of 42mm inside the drum, which is convenient for washing materials
Gold sluice: 1*6m
Artificial gold washing grass:1*15m
Specification
Model | Trommel diameter （mm） | Trommel length （mm） | Capacity (t/h) | Dimensions (L*W*H) |
GMTS0519 | 500 | 1910 | 5-10 | 3*0.8*1.6 |
Packing & Delivery
Moisture-proof wooden box packaging
