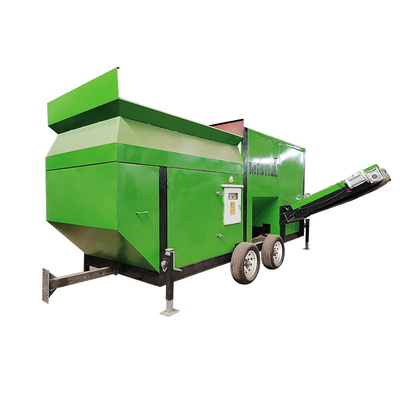

Mobile Heavy Screening Equipment Soil Sifter Screen for Feeding Size Less Than 300mm
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion |
| Certification: | CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $10,700.00/sets 1-1 sets |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops | Showroom Location: | None |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Pressure Vessel | Condition: | New |
| Type: | Circular | Application: | Ore, Sieve Soil |
| Voltage: | 220V/380V | Weight: | 2900 KG |
| Warranty: | 1 Year | Product Name: | Mobile Trommel Screen |
| Screen Material: | Steel Bar, Steel Plate, Manganese Steel Wire Woven, Stainles | Discharge Size: | Less Than 6mm Or As Request |
| Installation: | Supply Manual To Guide User | Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) |
| Key Selling Points: | Easy To Operate | Feeding Size: | Less Than 300mm |
| Factory Visit: | Welcomed Warmly | ||
Product Description
Factory Price Mobile Heavy Screening Equipment Soil Sifter Screen Manufacturer
1. Novel structure, no foundation, easy to move.
2. High screening efficiency, stable operation and low noise.
3. The sieve hole is not blocked, has good wear resistance and long service life.
4. Strong adaptability to materials, wide range, easy to large-scale.
5. There is a built-in cleaning brush design, which can be cleaned by itself during the
process of sieving fine powder or sticky materials to prevent materials from clogging the screen.
2. High screening efficiency, stable operation and low noise.
3. The sieve hole is not blocked, has good wear resistance and long service life.
4. Strong adaptability to materials, wide range, easy to large-scale.
5. There is a built-in cleaning brush design, which can be cleaned by itself during the
process of sieving fine powder or sticky materials to prevent materials from clogging the screen.

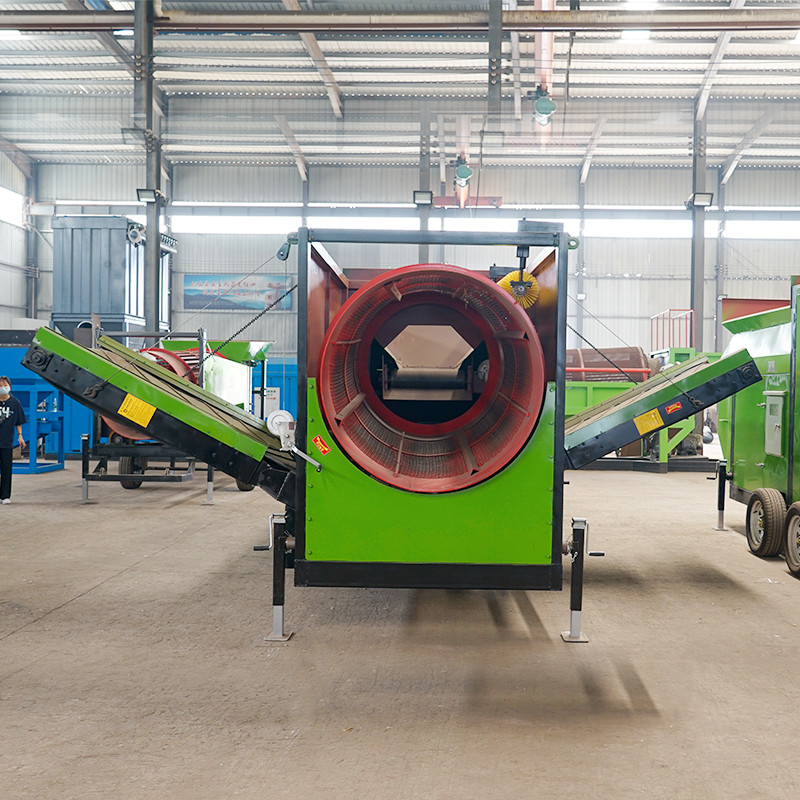

When the trommel screen is working, the motor drives the axis of the drum to rotate. The reducer adjusts the cylinder to rotate at a rotational speed. The material enters the cylinder from the belt conveyor or the feed port of the silo. Under the action of the centrifugal force generated by the rotation, the material rolls in the cylinder. From top to bottom through the grading screen, the materials are gradually separated and screened due to the different grading sizes of the screens. The materials with qualified particle size fall into the bottom of the drum screen after being screened, and then are transported out by manpower or through a belt conveyor. Surprised to transport. Qualified products are discharged through the discharge port at the lower end, and the particles are relatively large. Unqualified products are discharged through another
discharge port. There is a cleaning brush device in the drum sieve to prevent the screen from being blocked.
discharge port. There is a cleaning brush device in the drum sieve to prevent the screen from being blocked.
Model | Trommeldiameter (mm) | Trommel length (mm) | Capacity (m3/h) | motor power （KW） | Weight (Kg) | Dimensions (L*W*H) |
MTS1022 | 1000 | 2200 | ≤30 | 8.2 | 2750 | 4.3*1.9*2.45 |
Model | Capacity (m3/h) | Power (kw) | Screen Diameter (mm) | Screen Length (mm) |
MTS1230 | 60 | 4 | 1200 | 3000 |
