Due to the turning and rolling of the material in the screen drum, the material stuck in the screen hole can be ejected to prevent the screen hole from being clogged. Trommel screen machine mainly consists of motor, gearbox, screen drum, frame, inlet and outlet. The screen drum is mounted obliquely on the frame. The motor is coupled to the drum unit via a coupling through a reducer to drive the screen drum unit to rotate about its axis. After the material enters the screen drum, due to the tilting and rotation of drum screen, the material on the screen surface is turned over and rolled, so that the qualified material (the product under the sieve) is discharged through the screen, and the unqualified material (the product on the sieve) ) is discharged through the end of the screen drum. It has the following characteristics: 1. Smooth operation and low noise; 2. Simple structure, maintenance Convenient; 3. The screen holes are not easy to block; 4. The screening efficiency is high; 5. The screen has a long service life and is easy to replace.
 |

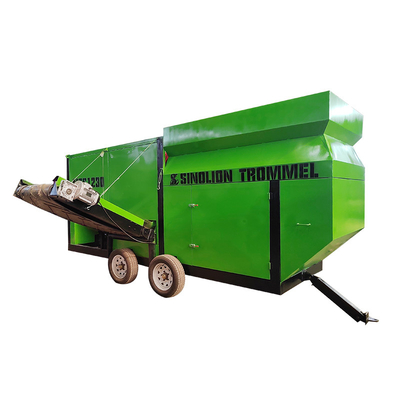

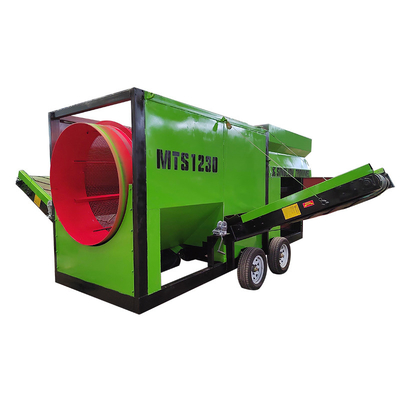

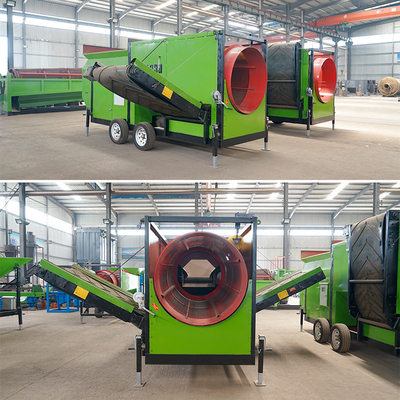

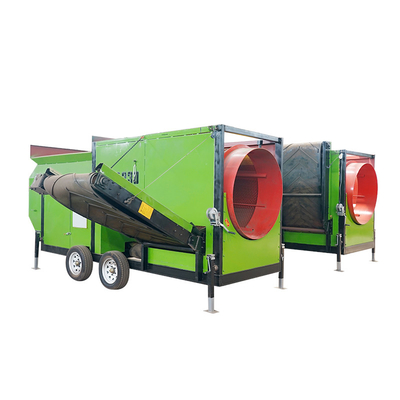

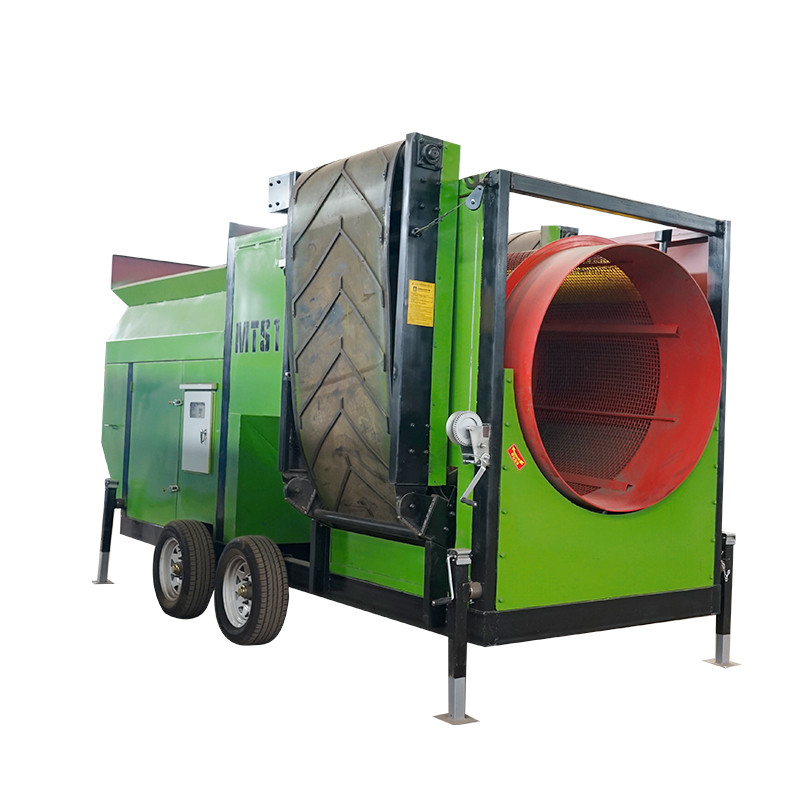

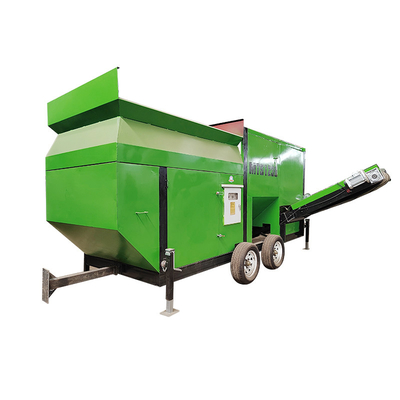

220-420V Mobile Round Garden Soil Sieve Topsoil Trommel Screen for Manufacturing Plant
Product Details:
| Place of Origin: | China |
| Brand Name: | Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $15,900.00/sets 1-1 sets |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Farms, Home Use, Construction Works , Energy & Mining, Other | Showroom Location: | Canada, United States, Italy, Mexico, UAE, Colombia, Australia |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator |
| Production Capacity: | 98% | Voltage: | 220-420V, Customized |
| Dimension(L*W*H): | 5.4*2.1*2.7m | Weight: | 3300 KG |
| Warranty: | 1 Year | Marketing Type: | New Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Engine |
| Key Selling Points: | High Productivity | Product Name: | Mobile Topsoil Trommel Screen |
| Usage: | Remove Dirty Soil,separate Different Sizes | Keywords: | High Quality, With Conveyors |
| Capacity: | 60m3/h | Feature: | High Performance |
| After Sale Service: | Supply Technical Support At Any Time | Installation: | Send Video, CAD Drawing, And/or Dispatch Engineer |
| Trommel Diameter: | 1200mm | Trommel Length: | 3000mm |
Product Description
Portable topsoil trommel screen are very useful tools for contractors and landscapers. These machines are also referred to as trommel drums or drum screeners. The soil generated from job sites and re-developed land in many cases can be recycled, re-purposed and reused to create great organic products for use with farms, plant and tree nurseries, landscaping firms and more.
Small materials enough to pass through the screen (fines) while the larger debris exits through the opposite end of the trommel drum. This produces two products, one of a finer soil and one of rocks, roots, wood waste, etc., which is referred to as rejects, overs, or trash.
The mobile topsoil trommel screen machine is a screening equipment developed by our company for small and medium-sized and light materials such as topsoil, compost, wood chips, cow dung, sand and gravel.
Structure and Principle
The mobile trommel screen is mainly composed of hopper, screen drum, idler assembly, transmission part, discharge conveyor, brush, underframe, rear axle, traction, diesel generator, control cabinet, protective cover and other parts. The basic working principle of the trommel screen: the material is poured into the silo by the loader, and transported to the trommel screen by the conveyor on the silo, and then the motor reducer drives the idler to rotate the screen cylinder, and the material particles in the screen cylinder follow the screen. The drum rotates to a certain height, is thrown and dropped by gravity, and is filtered through the screen to form a screening. Finally, the screened materials are transported to different places by different conveyors.
Model | Trommeldiameter (mm) | Trommel length (mm) | Capacity (m3/h) | motor power （KW） | Weight (Kg) | Dimensions (L*W*H) |
MTS1230 | 1200 | 3000 | ≤60 | 10.6 | 3210 | 5.4*2.1*2.7 |
