Supply Carbon Black Briquette Making Machine for Coal Charcoal Briquettes Production Line
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $2,000.00/sets >=1 sets |
|
Detail Information |
|||
| Type: | Briquette Machines | Applicable Industries: | Energy & Mining |
|---|---|---|---|
| Weight (KG): | 800 | Showroom Location: | Canada, United States, Viet Nam, Brazil, Indonesia, Mexico, Russia |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | Gearbox, Motor, Gear | Condition: | New |
| Production Capacity: | 10-15t/h | Motor Type: | AC Motor |
| Dimension(L*W*H): | 3.7*2.55*2.6m | Warranty: | 1 Years |
| Product Name: | Coal Briquettes Making Line Carbon Black Briquette Making Machine | Keyword: | Briquettes Making Line |
| Briquette Shape: | Oval | Application: | Press Coal Powder To Oval Shape Coal Briquettes |
| Installation: | Under Engineers Guidance | Briquette Ratio: | 95% Briquetting Ratio |
| Voltage: | 220V/380V/415V/460V | Machine Including: | Feeder, Hopper, Conveyor, Mixer, Briquette Machine, Briquette Dryer |
| Capacity: | 10-15t/h Coal Briquette Line | Color: | Red,Gray, Green |
Product Description

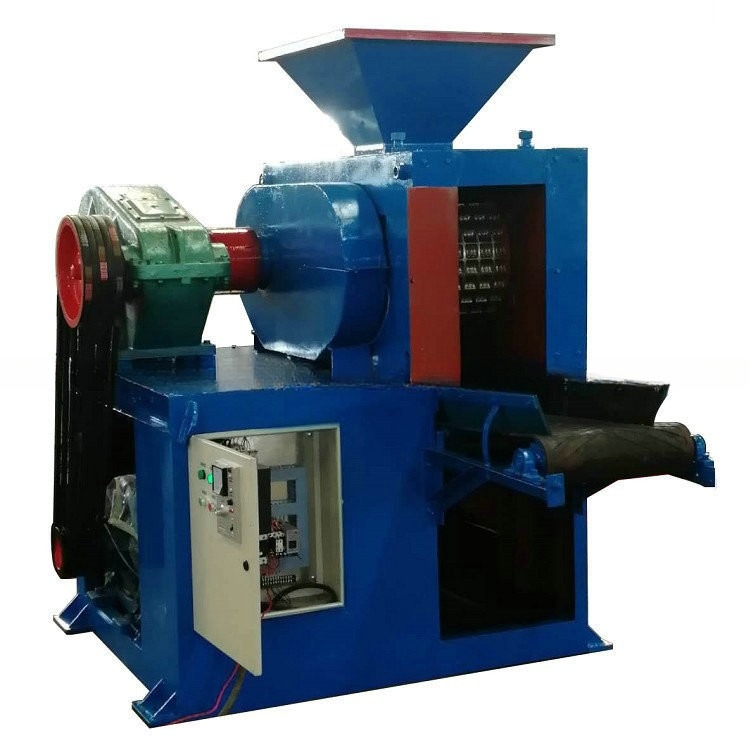

coal charcoal briquettes making line carbon black briquette making machine
Briquette machine can be used to press coal powder, iron powder, coke, mineral powder, iron ore fines, metal dust, mill scale, iron oxide skin, carbon powder, slag, gypsum, tailing, sludge, kaolin clay, activated carbon, coke breeze and other powder and waste material .The briquette machine is widely used in refractory, power plants, metallurgy, chemicals, energy, transportation, heating, etc. industries. The final products have features of environmental friendly, easy to transport, improving the waste recycling, and good economic and social benefits.
Feature:
Briquette machine unique design is with lowest operating cost and very less maintenance for years makes it very successful & different from others.
| Model | Reducer | Roller size | Power (Kw) | Yield (t/h) | Roller Material | Roller pressure (t/cm) |
| XM290 | ZQ300 | Φ290 | 5.5 | 0.8-2 | 65Mn | 1 |
| XM360 | ZQ350 | Φ360 | 7.5 | 2-3.5 | 65Mn/9Cr2Mo | 1 |
| XM400 | ZQ400 | Φ400 | 11 | 4-5 | 65Mn/9Cr2Mo | 1 |
| XM430 | ZQ400 | Φ430 | 11 | 5-7 | 65Mn/9Cr2Mo | 1-2 |
| XM500 | ZQ500 | Φ500 | 18.5-30 | 6-8 | 65Mn/9Cr2Mo | 1-2.5 |
| XM650 | ZQ650 | Φ650 | 22 | 8-12 | 65Mn/9Cr2Mo | 1-2.5 |
| XM750 | ZQ750 | Φ750 | 30-75 | 12-18 | 65Mn/9Cr2Mo | 1-2.5 |
| XM850 | ZQ850 | Φ850 | 55-90 | 18-25 | 65Mn/9Cr2Mo | 1-2.5 |
| XM1000 | ZQ1000 | Φ1000 | 75-130 | 25-30 | 65Mn/9Cr2Mo | 2-2.5 |
| Roller press works with two close rotating rollers at the same speed but with opposite direction. The two rollers, with the same width and diameter, have holes on the surface. When they move, the same two holes on the different roller will coincide at the intersection of the midline and the briquette will be pressed there. With different pressure requirement, roller press can be designed to several types. A normal roller press will use a wedge iron to fix the movable roller as it works on a low pressure. The hydraulic pump station is also can be used to fix the roller and supplies a much bigger but flexible support to the roller to work stable on big pressure. |
Packing Details : All products will be processed to be rustproof and moisture proof before delivery.
20GP container or 40GP container
Equipment is packed with plastic wrap or steel case, depends on machine weight.
Motro is packed with steel case or wooden case. Control panel is packed with steel case.
Loading container in factory.
Delivery Details : 15-25 days after confirming order,detail delivery date should be decided according to production season and order quantity.
If you have interest on our machine or have questions on our machine, please don't hesitate to contact us.
| | |
