Professional Heavy Duty Stone Sand Drum Screen Filter with Easy Installation
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $1,500.00/sets >=1 sets |
|
Detail Information |
|||
| Applicable Industries: | Energy & Mining | Showroom Location: | None |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 2 Years |
| Core Components: | Gearbox, Motor | Condition: | New |
| Type: | Other | Application: | Other, Glass, Mulch, Organics, Bark, MSW, Plaster Board |
| Voltage: | 380V/415V/440V( As Client Request) | Dimension(L*W*H): | As Per Different Model |
| Weight: | 2200 KG | Warranty: | 24 Months Excluding Spare Parts |
| Product Name: | Heavy Duty Stone Sand Drum Screen Filter Price | Screen Material: | Steel Bar, Steel Plate, Manganese Steel Wire Woven, Stainless Steel |
| Power: | 3-45KW | Dimension: | 7600x2115x4010mm |
| Installation: | Supply Manual To Guide User | Capacity: | 20-500 Tons Per Hour |
| Feeding Size: | Less Than 300mm | ||
Product Description

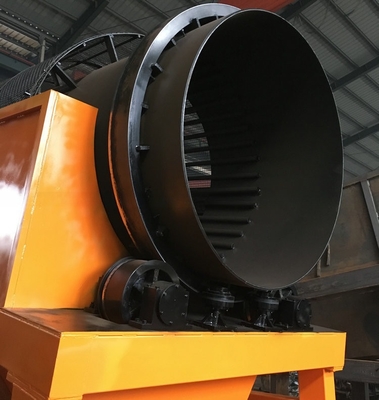

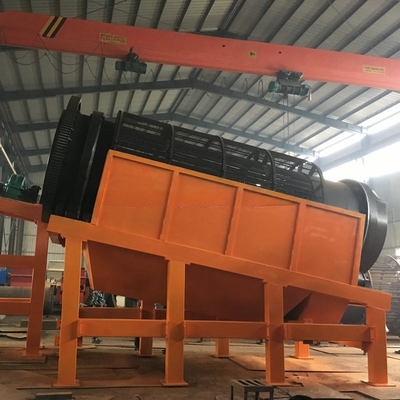

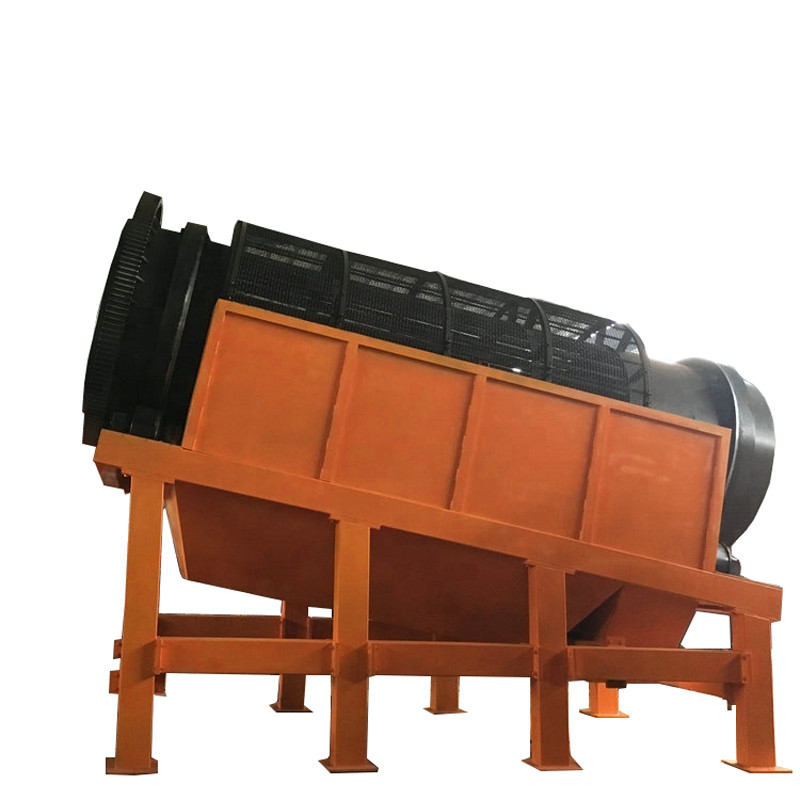

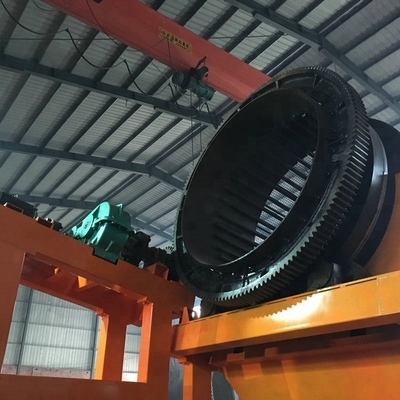

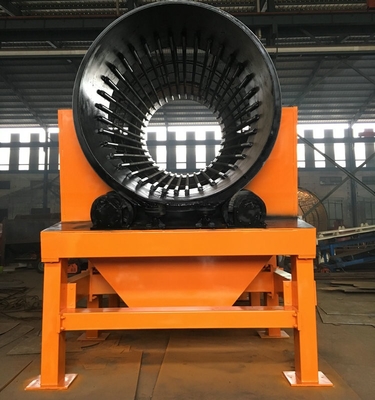

Trommel screen is also known as rotary screen. The trommel screen is a slowly rotating screen that is installed obliquely or horizontal. When sieving, the oversize is separated at end, and then the tumbler continuously tumbling in the sieve, and the fine granules finally pass through the sieve.
This easy to operate, low maintenance, user friendly, compost screener comes with 1 year warranty. Full-length brushes clean compost screen of debris as it rotates.
Although stationary when operating, the portable compost screener and conveyor can be easily transported with a forklift. The mobile compost is adjustable for equipment position assembly allowing for site friendly variation to suit your needs. The conveyor can be positioned on either side of the screener with ease as required. Continuous feed hopper provides maximum flow through efficiency. The compost screen is capable of handling up to 50 cubic yards per hour.
Applications of trommel screen:
Peat, topsoil, construction on & demolition waste, crusher stone and concrete, woodchip, compost, hard-core, skip waste, sand and gravel, municipal solid waste, green waste, landfill recovery.
Drum screen filter specifications:
| Model | Capacity | Power | Screen Diameter | Screen Length | Discharge Size | Input Size | Dimension (L×W×H) | Weight |
| (t/h) | (kw) | (mm) | (mm) | (mm) | (mm) | (mm) | (Kg) | |
| GTS1015 | 50 | 3.0 | 1000 | 1500 | 0~100 | ≤300 | 2600×1400×1700 | 2200 |
| GTS1020 | 100 | 4.0 | 1000 | 2000 | 0~100 | ≤300 | 3390×1400×2140 | 2800 |
| GTS1225 | 160 | 5.5 | 1200 | 2500 | 0~100 | ≤300 | 4146×1600×2680 | 4200 |
| GTS1530 | 250 | 7.5 | 1500 | 3000 | 0~100 | ≤300 | 4460×1900×2820 | 5100 |
| GTS1545 | 350 | 11 | 1500 | 4500 | 0~100 | ≤400 | 5960×1900×3080 | 6000 |
| GTS1848 | 450 | 15 | 1800 | 4800 | 0~100 | ≤400 | 6500×2350×4000 | 7500 |
| GTS2055 | 600 | 22 | 2000 | 5500 | 0~100 | ≤400 | 7500×2550×4800 | 9600 |
| GTS2265 | 800 | 30 | 2000 | 6500 | 0~100 | ≤400 | 8500×2750×5000 | 12800 |
| Model | drum screen filter |
| Screen material | steel bar, steel plate, manganese steel wire woven, stainless steel |
| Power | 3-45KW |
| Dimension | 7600x2115x4010mm |
| Application | stone, sand, mulch, organics, bark, MSW, plaster board |
| Installation | supply manual to guide user |
| Capacity | 20-500 tons per hour |
| Feeding size | less than 300mm |
| Discharge size | less than 6mm or as request |
| Color | yellow, white, red, blue, gray( or as client request) |
| Product Keywords | drum screen filter |
