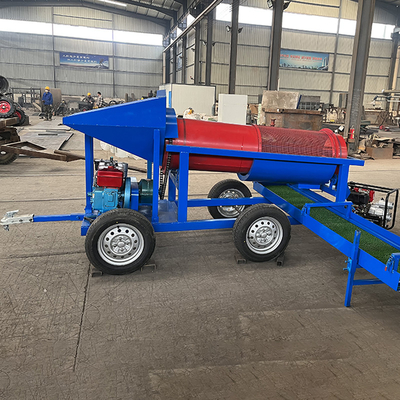

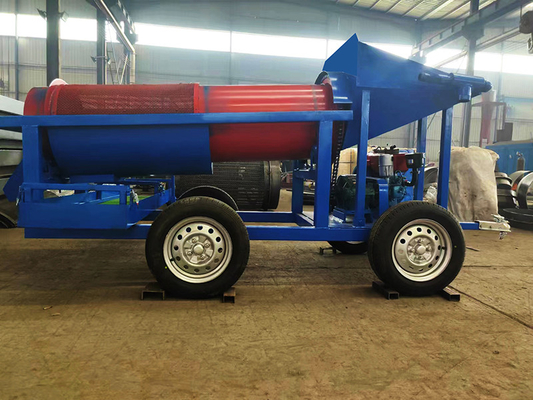

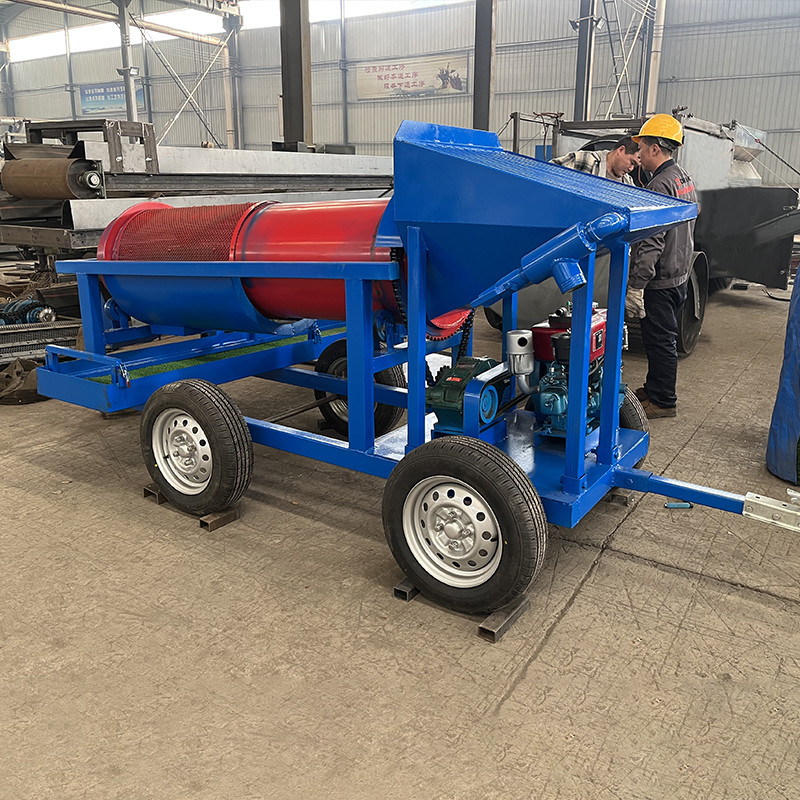

Mini Portable Sieve Drum Trommel Screener for Alluvial Rock River Sand Ore Water Powered
Product Details:
| Place of Origin: | Henan Zhengzhou |
| Brand Name: | Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $4,080.00/sets 1-1 sets |
| Packaging Details: | All products will be processed to be rustproof and moisture proof before delivery. <br>20GP container or 40GP container <br>Equipment is packed with plastic wrap or steel case, depends on machine weight. <br>Motor is packed with steel case or wooden case. |
| Supply Ability: | 50 Set/Sets per Month gold trommel screening plant |
|
Detail Information |
|||
| Applicable Industries: | Energy & Mining, Other, Gold Washing | Showroom Location: | United Kingdom, United States, Italy, Mexico, UAE, Colombia, Australia |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator |
| Production Capacity: | 0-10 Tons/hour | Voltage: | 220/380 |
| Dimension(L*W*H): | 3*0.8*1.6 M | Weight: | 400 KG, 400 Kg |
| Warranty: | 1 Year | Marketing Type: | Hot Product 2022 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Pump, Gear |
| Key Selling Points: | Easy To Operate | Capacity: | 0-10 Tons/hour |
| Drum Diameter: | 500 Mm | Drum Length: | 1900 Mm |
| Feeding: | ≤300 Mm | Sluice Box: | 350*1500 Mm |
| Color: | Blue, Red, Gray, Pink | Port: | Qingdao, Tianjin, Lianyungang, Shanghai Guangzhou( As Client Request) |
Product Description
Product Description
Performance characteristics
2、The first section of mini gold trommel is 910mm steel drum, the second section is 840mm with manganese wire mesh, and the pole diameter is 5mm. The width of the discharge tank is 400mm and the length 1500mm contains gold panning grass.

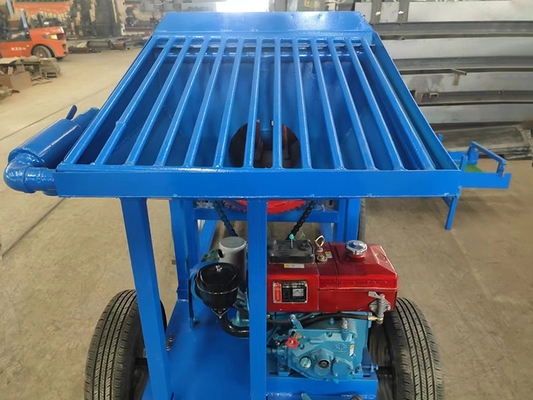

3、There is grizzly on top of in feed hopper which can separate stones in river gold, round steel diameter 10mm,

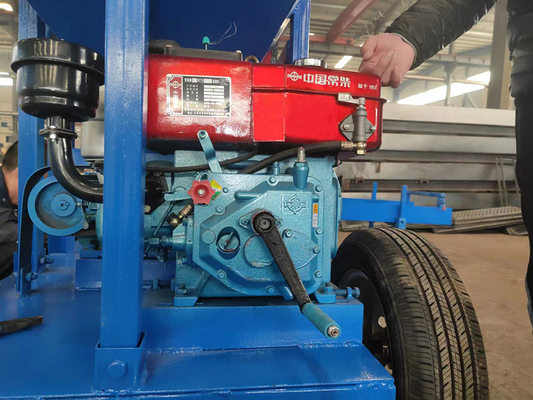

4、It is equipped with HONDA gasoline engine which makes it work at any place without electricity.
Towing hook : It connects with the trailer for better movement. Grille : It prevent large pieces from entering the roller. Motor: It connects the reducer and chain to drive the drum to rotate.

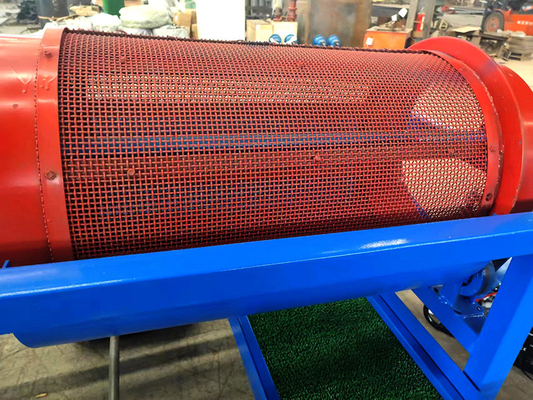

Drum trommel : It screen raw materials by gravity and water pressure. The screen mesh : It is made of manganese woven. Tire : The number 4 or 2 can be selected.
model | GMTS0519 | ||||
Pole of mesh | 5-8 mm as request | Material of mesh | Manganese woven | ||
Gearbox | WPS-100-20 | Tyre model | 165/70RB | ||
Chain | 16A | Spray pipe diameter | 42 MM | ||
Optional parts as request
Application
The complete gold washing plants of One-stop service below :
Sinolion centrifugal concentrator is a machine that has been patented in China. It is most especially useful for recovering fine gold which gets lost during the operation of gravitational concentrators. It is not only used for placer gold mining, but it can also be used for the recovery of natural gold from rocks that are hard, for replacing amalgamation and recovering of gold from the tailings.
***SHAKING TABLE
Under the effect of gravity, crosswise running water momentum, inertia and friction force produced by the bed reciprocating asymmetrical movement, minerals are stratified by weight and size, and make the longitudinal motion along the bed and transversal motion along the tilt bed. Therefore, the proportion and the granularity different minerals fan out along the respective heading from feeding to discharging, discharged separately from the different areas of concentrate side and tailing side, and then divided into the concentrates, middlings and Tailings.
***FURNACE
This portable small induction melting furnace is dedicated to precious metal smelting, refining, casting, component analysis, Sprinkling and other technology. Machine small size, light weight, energy-saving, environmental protection and other characteristics. Meet factory security and customer audit standards.
***WATER PUMP
The clean water pump, slurry pump,submersible pump can be chosen by your request. The slurry pump is used by feeding materials water into shaker table.The clean water pump and submersible pump can be optional for trommel screen, sluice box, centrifuhal concentrator and other equipment.
***SLUICE BOX
We can make the sluice box as your actual site request, such as 1*6 m , 1*9 m, with width 1 m , and length 6 m or 9 m. There are also thick mat on sluice surface for collecting gold.
***GOLD AMALGAMATOR
Gold amalgamator is newly designed and used for mixing the mercury and gold concentrate to get the gold amalgam. Then we distill the gold amalgam in the mercury retort and get the pure gold. Its a high recovery rate gold refining equipment.
******Our factory has our own research and development centre.
******We will provide the most suitable production line for the actual scene from a professional perspective.
******You can buy the whole production line at one time in our factory.
******Our 24 * 7 after-sales service can provide you with installation and technical guidance.
