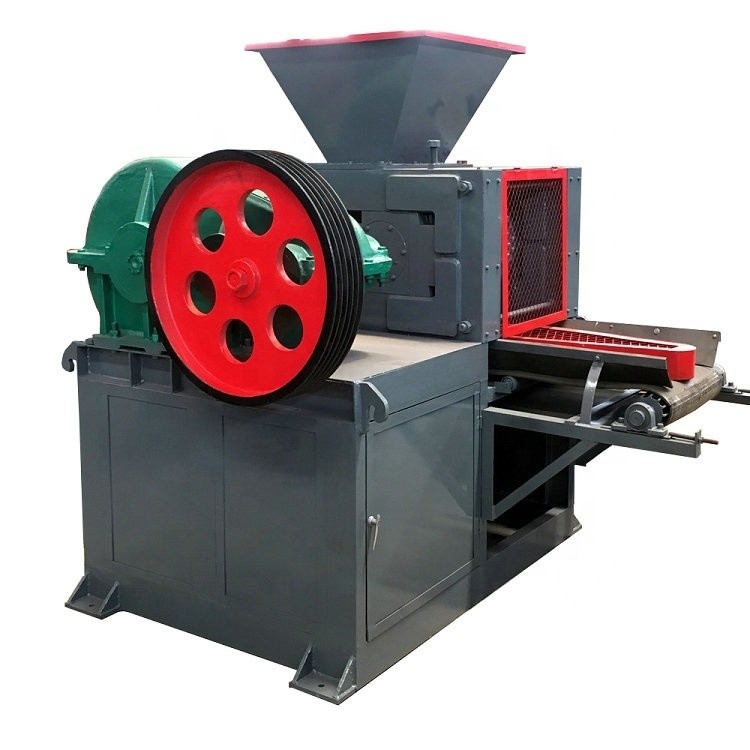

Supply Whole Life High Pressure Coal/Gypsum/Iron Powder/Shisha/Saw Dust Briquette Making Machine
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $4,000.00/sets >=2 sets |
|
Detail Information |
|||
| Type: | Briquette Machines | Applicable Industries: | Energy & Mining |
|---|---|---|---|
| Weight (KG): | 800 | Showroom Location: | None |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Condition: | New |
| Production Capacity: | 1-2t/h Coal Briquette Pressing Machine | Motor Type: | AC Motor |
| Dimension(L*W*H): | 2.26*1.53*1.76m | Warranty: | 1 Year |
| Product Name: | Coal/gypsum/iron Powder/shisha/saw Dust Briquette Making Machine | Briquette Shape: | Saw Dust Briquette Making Machine |
| Roller Diameter: | 290mm | Roller Material: | 65Mn |
| Applicable Material: | Coal, Charcoal, Carbon Black, Coke, Iron, Fluorite Powder Etc | Material Size: | Less Than 5mm |
| Material Moisture: | Less Than 18% | Spare Parts: | Supply Whole Life Of Coal Briquetting Machine |
| Service Life: | Supply Whole Life | Factory Visit: | Any Time |
Product Description
High pressure coal/gypsum/iron powder/shisha/saw dust briquette making machine
hot selling :
1. The general introduction of the briquette machine price
Our briquette machine are rollers pressing type. This type of briquette presses can apply higher pressures and thus produce higher density briquettes . These briquettes can be designed of oval shape, egg shape, pillow shape, square shape etc. This machine is widely used in coal industry and metallurgy industry.
2. The raw material of the briquette machine
3. The working principles of the briquette machine
This series of Briquette Ball Press will pass the power on to the two pressure roller through the reducer.The two sides and roll rotation, in both the rotating roll,Natural materials to enter the ball roll mode, with the roll rotation, material pressure on a small become larger, When the material to the two rollers rotating line contact point, the pressure of materials has reached the peak. Tremendous pressure in the role of line, the materials become a finished product from the powder ball.
4. The specifications of the briquette machine
| Model | Reducer | Roller size | Power (Kw) | Yield (t/h) | Roller Material | Pressure type |
| XM290 | ZQ350 | Φ290 | 5.5 | 0.9-1.0 | 65Mn | Constant pressure Hydraulic pressure |
| XM360 | ZQ350 | Φ360 | 7.5 | 1.5-2.0 | 65Mn/9Cr2Mo | |
| XM400 | ZQ400 | Φ400 | 7.5 | 2.5-3.5 | 65Mn/9Cr2Mo | |
| XM430 | ZQ400 | Φ430 | 11 | 3.5-4.5 | 65Mn/9Cr2Mo | |
| XM500 | ZQ650 | Φ500 | 37 | 7.5-8.5 | 65Mn/9Cr2Mo | |
| XM650 | ZQ850 | Φ650 | 45 | 9-10 | 65Mn/9Cr2Mo | |
| XM750 | ZQ1000 | Φ750 | 90 | 13-14 | 65Mn/9Cr2Mo | |
| XM850 | ZQ1250 | Φ850 | 110 | 15-17 | 65Mn/9Cr2Mo |

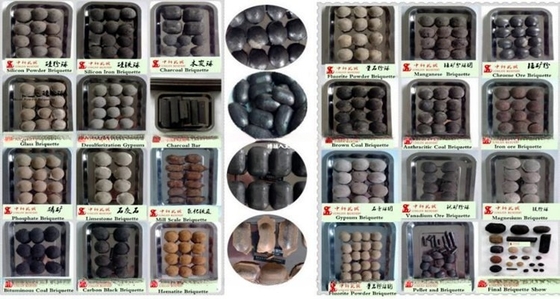

5. The shape of the final briquettes:round ball shape ,oval shape ,pillow shape ,egg shape ,oblateness ,square shape etc.
Note: the briquettes shape and size are defined by users
6. The production line of the briquette machine
The transportations of the briquette machine
single machine use wooden case and for the whole production line in container
we have different types of the charcoal briquettes machines, if you need other final charcoal briquettes
if you need more photos and video , please click here to contact me :
if you want to get the shisha briquettes , you need use our shisha charcoal briquettes machine below :
if you need more photos and video , please click here to contact me : machines in our warehouse ready for the delivery :
Certifications for the machines :
If you have interest on our machine or have questions on our machine, please don't hesitate to contact us.
