Gravity Separator Gold Trommel Screen for Placer Gold and Diamonds Sieving from Source
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | ZHENGHZOU Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $14,500.00/sets |
| Packaging Details: | All products will be processed to be rustproof and moisture proof before delivery. <br>20GP container or 40GP container <br>Equipment is packed with plastic wrap or steel case, depends on machine weight. <br>Motor is packed with steel case or wooden case. |
| Supply Ability: | 50 Set/Sets per Month gold trommel screening plant |
|
Detail Information |
|||
| Applicable Industries: | Energy & Mining | Showroom Location: | Egypt, United Kingdom, United States, France, Germany, Philippines |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator |
| Production Capacity: | 50-80t/h | Voltage: | 380v/415v/440v |
| Dimension(L*W*H): | 8*2.2*3.6m | Weight: | 6500 KG |
| Warranty: | 1 Year | Marketing Type: | New Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Gear, Engine |
| Key Selling Points: | Big Capacity | Application: | Gold |
| Product Name: | Gold Mining Machine | Keywords: | Centrifugal Gold Concentrtor |
| After-sales Service Provided: | Service Machinery Overseas | Advantage: | Long Working Life |
| Usage: | Mining Concentration | Name: | Gold Ore Processing Equipment |
| Color: | Customized Making | Material: | Steel |
| Installation: | Under Guidance | Port: | Qingdao, Tianjin, Lianyungang, Shanghai Guangzhou( As Client Request) |
Product Description
Product Description

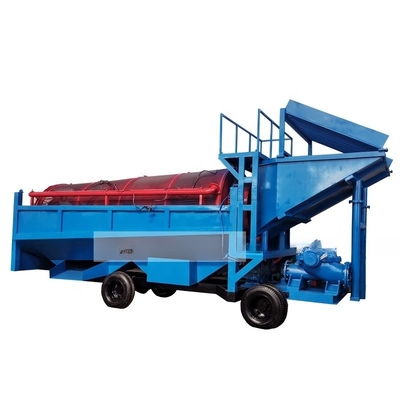

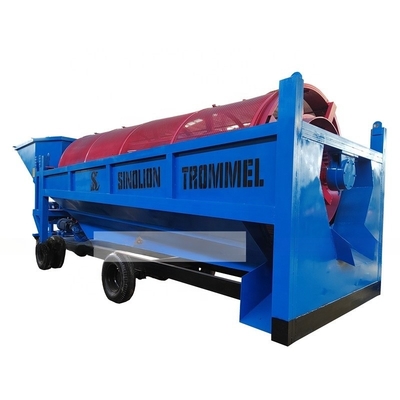

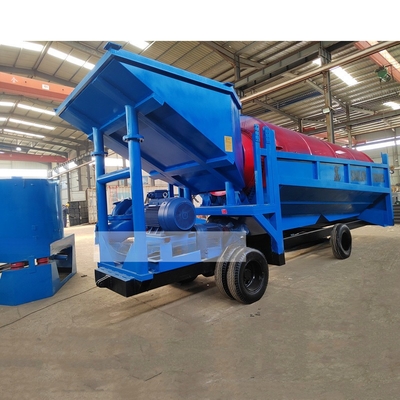

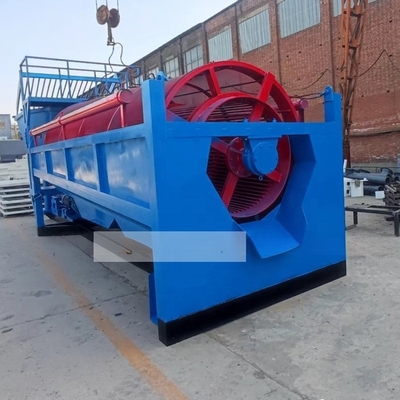

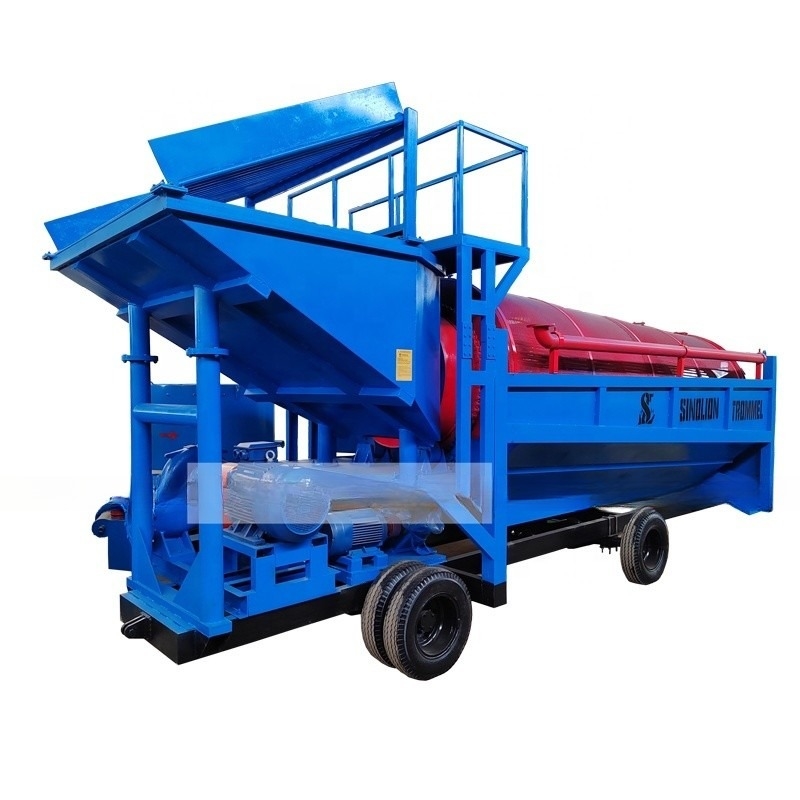

Gold mobile trommel screen 1548
The 1548 model gold rush trommel adopts double-layer screen design. The inner layer adopts a round steel structure, which is beneficial to prevent large materials from directly impacting the screen, greatly improving the service life of the outer screen and improving the screening efficiency of the outer screen. The galvanized seamless nozzle is located above the drum, and the water can flow directly into the drum to wash gold when the equipment is running. There is a ladder on the side of the equipment, and an artificial workbench on the upper part of the feeding hopper. It can be equipped with clean water centrifugal pump IS100-65-200.
Working principle
The motor reducer is connected through a coupling, and the roller is driven to rotate through a chain. When the material enters the drum device, due to the inclination and rotation of the drum device, the material on the screen surface is turned and rolled, and the qualified material is discharged from the equipment through the discharge port at the bottom of the drum. Unqualified materials are discharged from the discharge port at the end of the drum.
Specification
Model | Trommel Diameter (mm) | Trommel Length (mm) | Capacity (t/h) | Dimension （mm） |
GMTS1548 | 1500 | 4800 | 80-150 | 8460*2300*2500 |
Certifications
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
