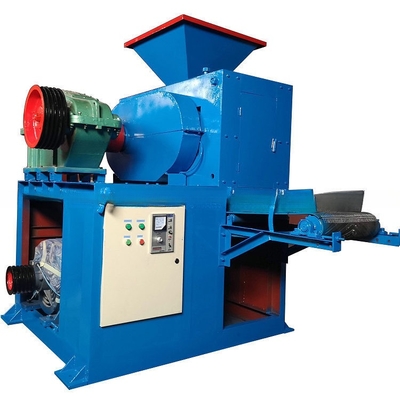

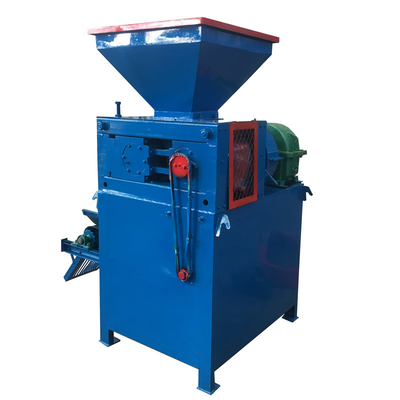

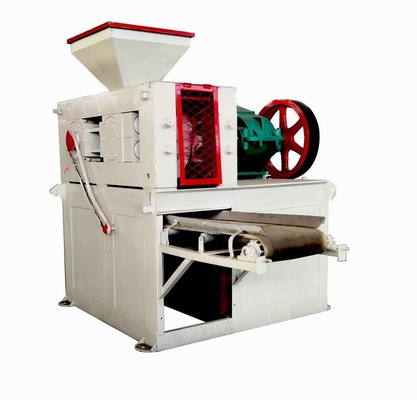

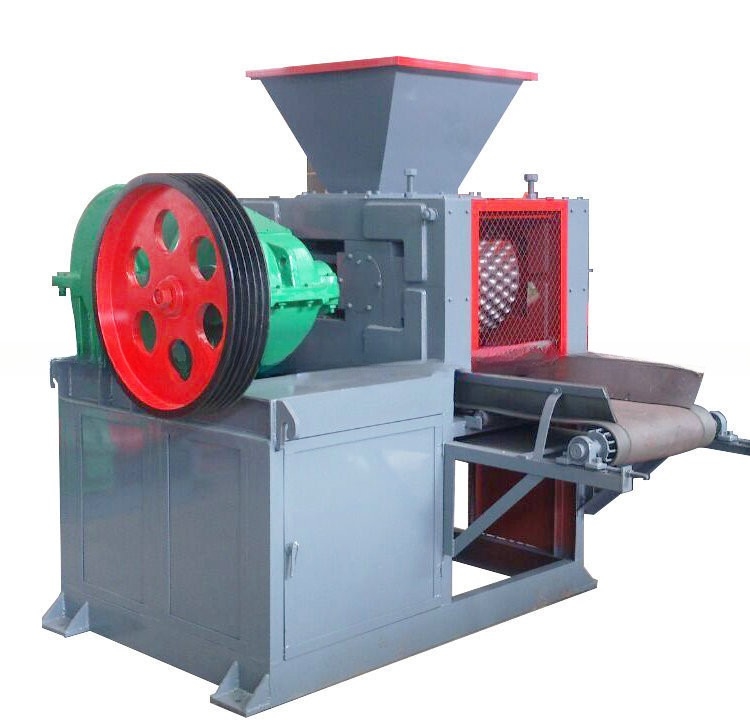

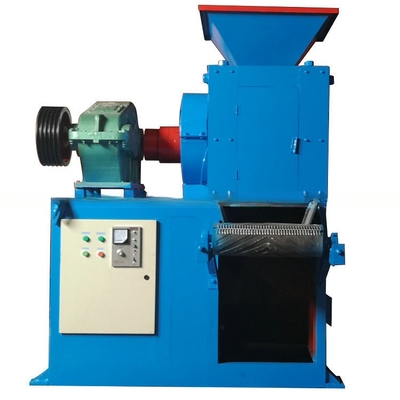

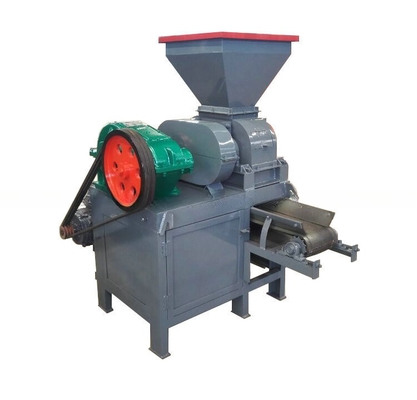

Coal Slime Ball Press Briquette Machine for Fuel Installation Under Engineers Guidance
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | SINOLION |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $2,500.00/sets 1-1 sets |
|
Detail Information |
|||
| Type: | Briquette Machines | Applicable Industries: | Manufacturing Plant, Energy & Mining |
|---|---|---|---|
| Weight (KG): | 700 | Showroom Location: | Canada, United States, Pakistan, Mexico, Russia, Thailand |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | Gearbox, Motor | Condition: | New |
| Production Capacity: | 1-30t/h | Motor Type: | AC Motor |
| Warranty: | 1 Year | Raw Material: | Coal, Coal Powder, Coal Dust, Coal Breeze, Coal Fines |
| Keyword: | Coal Ball Press Machine | Voltage: | Coal, Coal Powder, Coal Dust, Coal Breeze, Coal Fines |
| Material Moisture: | Less Than 50% | Color: | Client's Required |
| Application: | Fuel, Metallurgy,chemical Industry,coal And Refractories Industries | Installation: | Under Engineers Guidance Use Briquette Machine |
| Roller Diameter: | 290-1000mm | Briquette Shape: | Oval, Pillow And Oblate Iron Briquettes Etc |
| Material Size: | Coal Size Less Than 5mm | ||
Product Description
Product Description
Brief introduction of coal slime ball press
Working principle of coal slime ball press
This series of coal slime ball press will pass the power on to the two pressure roller through the reducer.The two sides and roll rotation, in both the rotating roll. Natural materials to enter the ball roll mode, with the roll rotation, material pressure on a small become larger, When the material to the two rollers rotating line contact point, the pressure of materials has reached the peak. Tremendous pressure in the role of line, the materials become a finished product from the powder ball.
Advantages of coal slime ball press
1. The coal slime ball press is made from hard materials with good wear resistance, so as to make it long time using.
2. The service life of wearing parts is much longer.
3. The machine electricity consumption reduce a lot.
4. The machine is easy operated and maintained.
5. The final products are smokeless, non toxic, non peculiar and environmental protection.
6. The final briquettes are energy saving, easy to transport and higher utilization of waste.
Main technical parameter of coal slime ball press
Model | Reducer | Roller Size (mm) | Main Shaft Speed(r/min) | Matched Power(kw) | Capacity(t/h) | Pressure Type |
XM290 | ZQ350 | 290*200 | 12-14 | 5.5 | 0.9-1.0 | Constant Pressure |
XM360 | ZQ350 | 360*250 | 12-14 | 7.5 | 1.5-2.0 | Constant Pressure Hydraulia Pressure |
XM400 | ZQ400 | 400*250 | 12-14 | 7.5 | 2.5-3.5 | |
XM430 | ZQ400 | 430*250 | 12-14 | 11 | 3.5-4.5 | |
XM500 | ZQ650 | 500*470 | 10-12 | 37 | 7.5-8.5 | |
XM650 | ZQ850 | 650*470 | 9-11 | 45 | 9-10 | |
XM750 | ZQ1000 | 750*570 | 9-11 | 90 | 13-14 | |
XM850 | ZQ1250 | 850*570 | 8-10 | 110 | 15-17 |
Certifications
Detailed Images
Our Service
1. Pre-sale service:
1) Sinolion will provide production line design, quotation sheet, working sites video, machinery photos, sample testing(gold ore, tin ore , iron ore, tungsten processing in laboratory).
2) Welcome to visit us at any time, we will pick you up.
2. Sale service:
1) Keep clients updated when our company gets advance payment.
2) Confirm production details with clients.
3) Take photos and send all pictures to customers during production.
4) Inspection and testing the product before delivery;
5) Clients are welcome to inspect the equipment when the equipment are ready to delivery.
6) logistics service if needed.
3. After Sale service:
1) Provide foundation drawing to the clients for installation.
2) Besides, our engineers are available to help with installation and workers training.
3) Repairing and maintenance if any problem during the warranty.
4) Spare parts and wearing parts will be offered with production cost in 10 years.
