Professional Briquette Press Machine and Molding Machine for Your Production Needs
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | SINOLION |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $2,200.00/sets >=1 sets |
|
Detail Information |
|||
| Applicable Industries: | Energy & Mining | Showroom Location: | Canada, United States, Brazil, Mexico, Russia, Kenya, Sri Lanka, Nigeria, Australia |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Gearbox, Motor | Application: | Coal ,charcoal ,coke |
| Voltage: | 220V 380V | Dimension(L*W*H): | 140*132*165cm |
| Weight: | 720 KG | Condition: | New |
| Warranty: | 1 Year | Product Name: | Manufacturer Briquette Press Machine And Briquette Molding Machine |
| Keyword: | Coal Briquetting Production | Density Of Briquette: | 0.8-1.4g/cm3 |
| Material Moisture: | 15-30% | Briquette Size: | 40/50mm |
| Spare Parts: | Supply Whole Life | Service Life: | Supply Whole Life |
| Factory Visit: | Any Time | Pressure Mode: | Straw Briquette Machine |
| MOTOR: | Y120M-4 | ||
Product Description

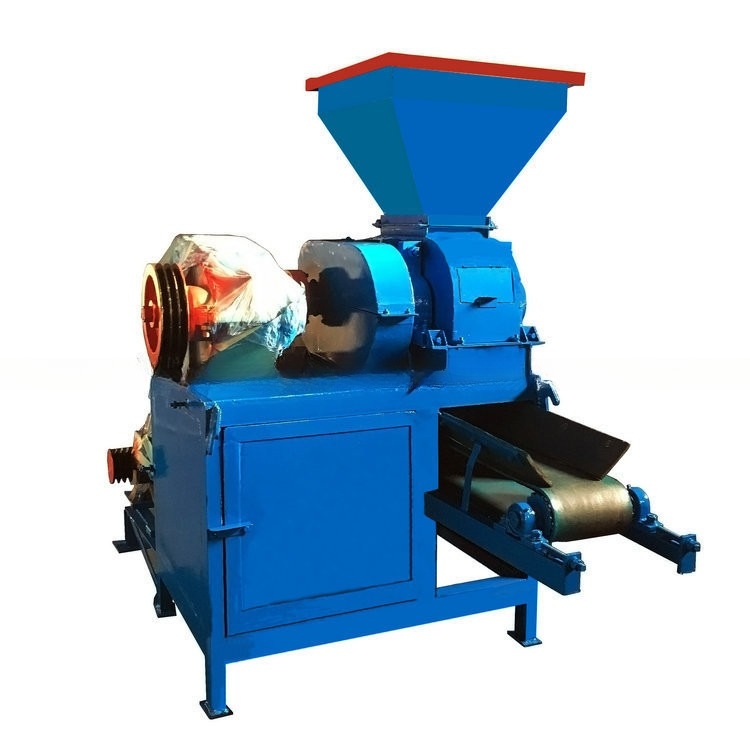

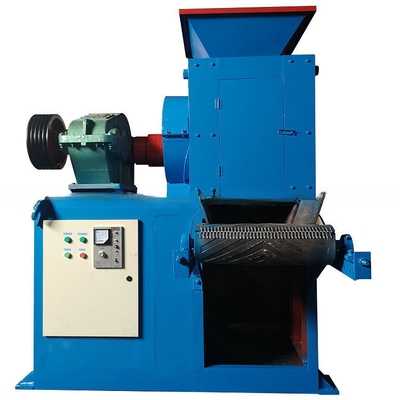

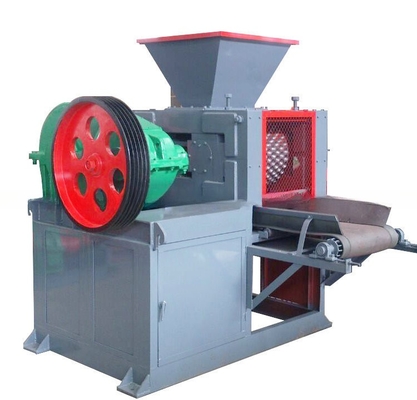

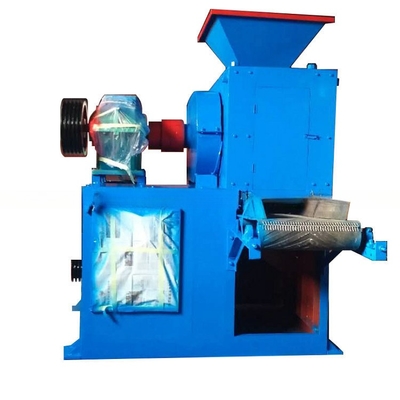

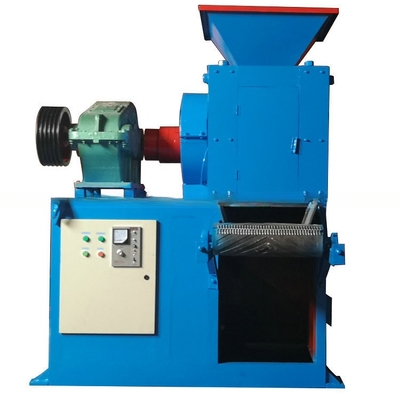

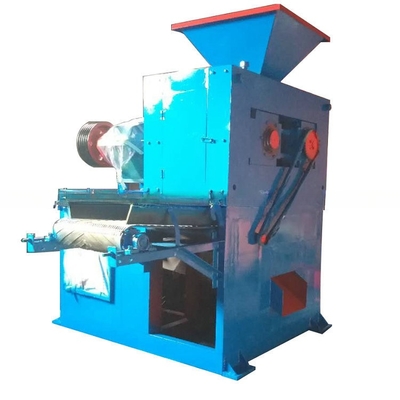

This kind of machine specializes in pressing various powder material, like coal, coke, charcoal powder and carbon black. Due to the double roller forced squeezing, the output briquettes have the features of high density, high strength, high hardness, roller material adopts 65Mn and other wear-resistant alloy material. With different pressure requirement, this machine can be designed to two types, a wedge iron and hydraulic type.
Requirement of raw material
1.Size
High quality briquette comes from the small raw material, for common materials, less than 5mm is a good choice for energy saving and usage.
2.Moisture
Moisture is very important in briquetting process, if the material is too wet, it will stick in the roller hole and the machine won’t make briquette anymore, too dry, you can’t even get the shaped briquette.
So, what is the proper moisture for briquetting?
This is different from material to material, and also have something to do with the binder you plan to use.
A binder mixed briquetting process
In the roller briquette press process, the materials need to add binder before briquetting, we have different consideration for the binders, for example, if your material is too wet to briquette, we usually need to dry it, but if the moisture is not that high, we solve the problem by adding some dry binder not only for briquetting also for moisture controlling. The proportion of binder is different for different materials.
Herewith an article for you to learn more about binder: All about binders – make briquette with the proper binder
The briquette ball size
Size can be between 10mm to 110mm.
With further consideration of capacity and the briquette strength, our recommend size is between 25mm to 50mm.
| Model | XM290 |
| Reducer | ZQ350 |
| Roller Size | Φ290 |
| Power (Kw) | 5.5 |
| Yield (t/h) | 0.8-2 |
| Roller Material | 65Mn |
| Roller pressure (t/cm) | 1 |
Zhengzhou Sinolion Machinery Co., Ltd. is a high-tech company which professional manufacturing the production of briquette equipment, stone crusher and screening equipment. After 30 years of development, Sinolion is now setting up branches, integrating engineering, trade, research and development, production and sale to develop to be a large sized enterprise. Sinolion has modern standard workshops, as well as advanced technology and testing equipment. Extensively cooperating with coal research institutions and other research departments, Sinolion has continuously improved product values and performance. Now, 10, 000-300, 000 tons briquette production lines are renowned in domestic and foreign markets, and Sinolion products have been exported to Serbia, The United Kingdom, Turkey, Malaysia, Indonesia, Kazakhstan, Vietnam, North Korea, Egypt, Mexico, Ghana and other countries and regions.
Packing Details : All products will be processed to be rustproof and moisture proof before delivery.
20GP container or 40GP container
Equipment is packed with plastic wrap or steel case, depends on machine weight.
Motro is packed with steel case or wooden case. Control panel is packed with steel case. Loading container in factory.
Delivery Details : 15-25 days after confirming order,detail delivery date should be decided according to production season and order quantity.
Q:How do I choose a suitable briquette machine for my project?
A: In your first inquiry, please offer us information about your raw materials, its size, moisture, and the shape of final briquettes you required, also tell the output per hour you required
Q: What is the binder in process?
A: It is depend on the properties of your raw materials and also usage of briquettes. We have some formula of binders for some of raw materials, we would like to share them to our customers.
Q: How long of your machine quality guarantee terms ?
A: Quality guarantee time is one year(wearing parts excluded).
Q: After ordered a briquette machine, how do we slove the equipment installing?
A: For a small single machine, we offer you user manual, the user will install and commissioning following operating introduction. A complete production line, we will send our engineer to workplace to help with install and commissioning untill machines work normally.
| | |
