The drum part is made of round steel and manganese wire, and the outer screen is made of manganese wire, which is strong and durable. The design of the double-layer screen improves the screening efficiency on the one hand, and can screen materials of three specifications On the one hand, it protects and improves the service life of the screen.
 |
Installation Supply Manual to Guide User Mobile Gold Trommel Screen Machine Wash Plant
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | sinolion |
| Certification: | CE ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $14,500.00/sets 1-1 sets |
| Packaging Details: | All products will be processed to be rustproof and moisture proof before delivery. <br>20GP container or 40GP container <br>Equipment is packed with plastic wrap or steel case, depends on machine weight. <br>Motor is packed with steel case or wooden case. |
| Supply Ability: | 50 Set/Sets per Month gold trommel screening plant |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Construction Works , Energy & Mining, Other | Showroom Location: | Canada, United States, Germany, Australia |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator |
| Production Capacity: | 80-150T/H | Voltage: | 220V/380V/415V/480V |
| Dimension(L*W*H): | 8000*2200*3600 | Weight: | 6500 KG |
| Warranty: | 1 Year | Marketing Type: | Ordinary Product, Hot Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Engine, Gearbox |
| Key Selling Points: | High Rigidity, High Separation Efficiency | Installation: | Supply Manual To Guide User |
| Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) | Port: | Qingdao, Tianjin, Lianyungang, Shanghai Guangzhou( As Client Request) |
Product Description
Product Description

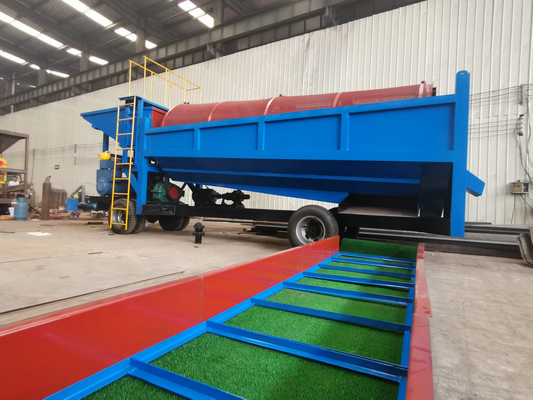

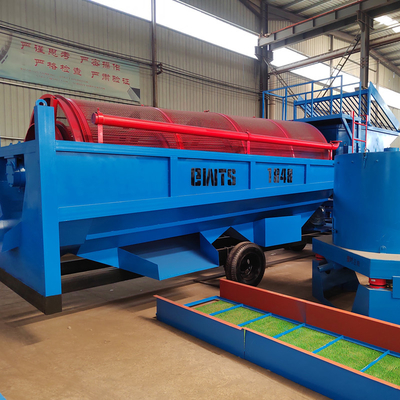

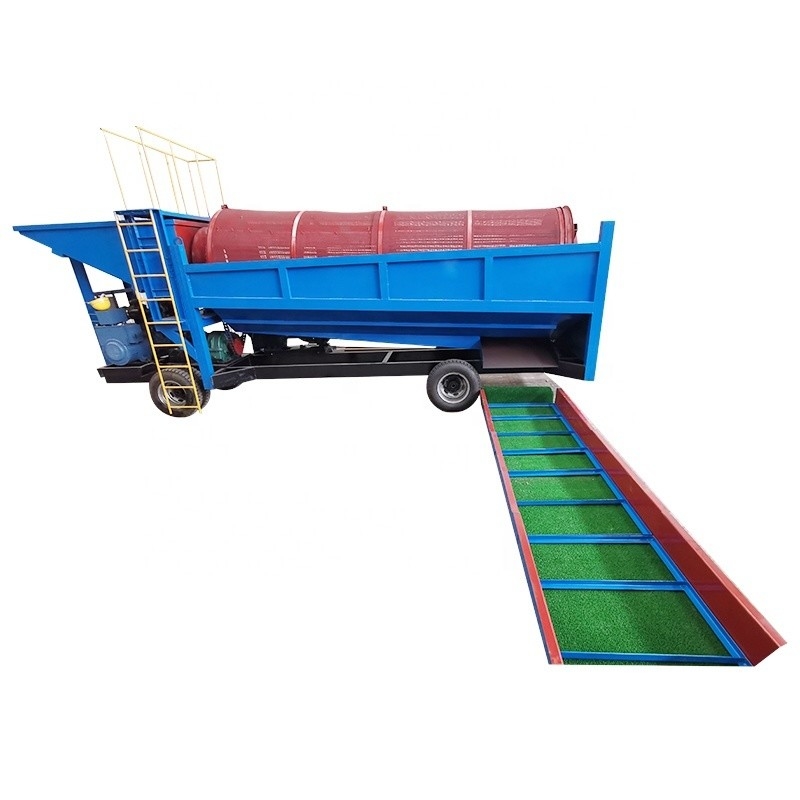

The gold trommel screen is mainly used in dry land beach, river is a gravity processing equipment is mainly used in sand gold ore and the recovery of monomer gold in the vein. It can be easily movable on land, it has a compact structure, strong integrity, large handling capacity, simple operation, reliable work, and easy maintenance, easy to move and so on.
Screen material
Steps

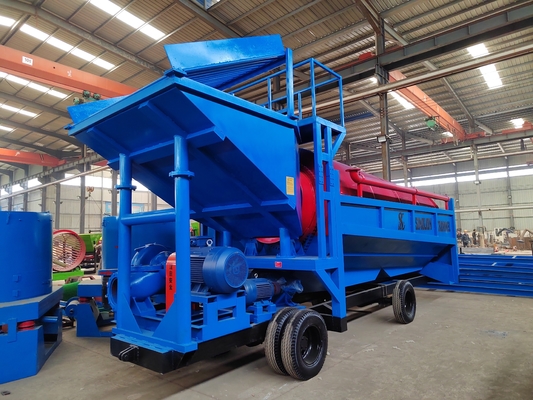

Firstly，the raw material input through the hopper inlet is pushed into the screen drum by the powerful water pressure of the nozzle loaded in the hopper.
secondly, the screen barrel has a built-in galvanized seamless water spray pipe (diameter 42mm), and the raw materials are washed by water and selected through the gold panning tank through the rotation of the trommel screen.
Finally, light dirt and sand are washed away by the water, and heavier gold will gather in the gold blanket.
Technical Parameters
Model | Capacity (t/h) | Power (kw) | Diameter (mm) | Length(mm) | Discharge(mm) | Input(mm) | Dimension (mm) |
GMTS0519 | 5—10 | 1.5 | 500 | 1910 | ≤300 | 0—100 | 3000*1000*1800 |
GMTS1020 | 10—30 | 4 | 1000 | 2000 | ≤300 | 0—100 | 3200*1400*1900 |
GMTS1225 | 30—50 | 5.5 | 1200 | 2500 | ≤300 | 0—100 | 4300*1650*2220 |
GMTS1548 | 80—150 | 11 | 1500 | 4800 | ≤300 | 0—100 | 8000*2200*3600 |
GMTS1848 | 100—200 | 15 | 1800 | 4800 | ≤300 | 0—100 | 8000*2200*4000 |
