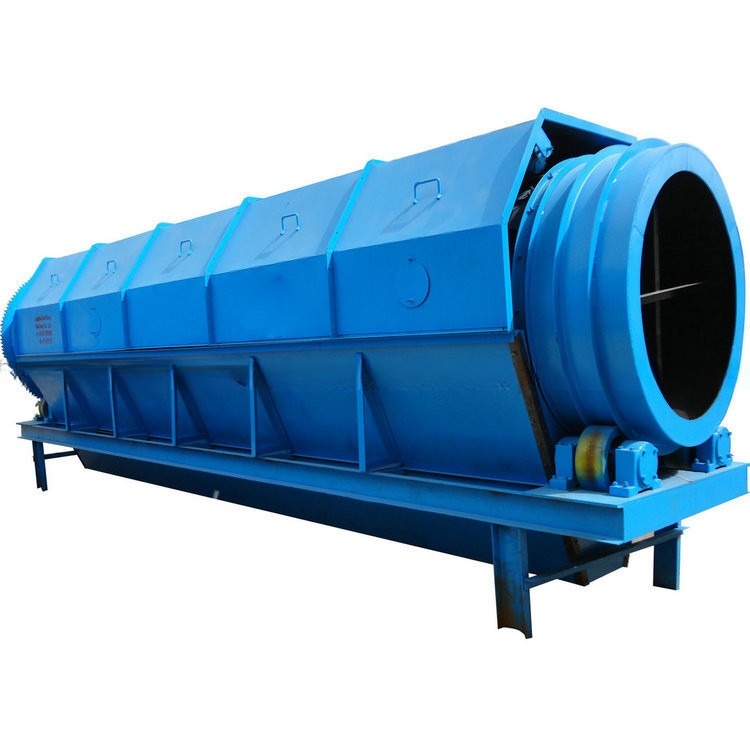

CE Approved Coal Ash Screening Sieving Machine Industrial Rotating Drum Sieve
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $16,000.00/sets >=10 sets |
|
Detail Information |
|||
| Applicable Industries: | Manufacturing Plant, Energy & Mining | Showroom Location: | Canada, United Kingdom, United States, Brazil, Mexico, Russia, Australia |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2021 | Warranty Of Core Components: | 2 Years |
| Core Components: | PLC, Engine, Pressure Vessel, Pump | Condition: | New |
| Type: | Circular | Application: | Ore, Coal, Coke, Mulch, Organics, Bark, MSW, Building Waste |
| Voltage: | 380v/415v/440v | Dimension(L*W*H): | Depends On Models |
| Weight: | 2200 KG | Warranty: | 1 Year |
| Power: | 3-45kw | Screen Material: | Steel Bar, Steel Plate Punch Hole, Steel Wire Woven, Stainless Steel |
| Installation: | Supply Manual To Guide User | Capacity: | 50-500t/h |
| Feeding Size: | Less Than 300mm | Discharge Size: | As Request |
| Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) | Product Name: | Hot Selling CE Approved Drum Screen/trommel Washing Equipment |
| Keyword: | Trommel Washing Equipment | ||
Product Description
The vibrating trammel provide a simple, efficient and economical solution to upgrade a wide rang of material and optimize the subsequent process steps of recovery. This method of screening helps to reduce operating and investment cost and to increase product quality, while allowing rapid and large volume processing.
Vibrating screen machine is applied to material classification and ore washing operation. It can make out more than two kinds of products. The equipment has the advantages of simple installation and maintenance, easy operation, small installation slope,un-easy blocking, small space, low dust pollution, stable operation and high screening efficiency.
Characteristics of vibrating screen machine :
1. Adopting the principle of rolling conveying, the friction coefficient is small, the wear is light, and the mesh hole is not easy to block.
2. The roller support adopts the integral through-shaft structure, which runs smoothly, does not vibrate, and has low noise.
3. The internal drum screen accessories adopt split design, the structure is simple, and the replacement and repair are quick and convenient.
4. The drum body adopts an effective full sealing structure, which does not dust or pollute.
5. Safe and reliable operation, adopting deceleration transmission, high transmission efficiency, low power distribution, low energy consumption and obvious energy saving effect.
6. Different screen materials can be used according to customer requirements, mesh size, high screening efficiency, long service life and low maintenance cost.
Technical parameters of vibrating screen machine:
|
Model
|
Capacity
(t/h)
|
Power
(kw)
|
Diameter
(mm)
|
Length
(mm)
|
Discharge
(mm)
|
Input
(mm)
|
Dimension
(mm)
|
|
GTS1015
|
50
|
3
|
1000
|
1500
|
0-100
|
≤300
|
2600×1400×1700
|
|
GTS1020
|
100
|
4
|
1000
|
2000
|
0-100
|
≤300
|
3390×1400×2140
|
|
GTS1225
|
160
|
5.5
|
1200
|
2500
|
0-100
|
≤300
|
4146×1600×2680
|
|
GTS1530
|
250
|
7.5
|
1500
|
3000
|
0-100
|
≤300
|
4460×1900×2820
|
|
GTS1545
|
350
|
11
|
1500
|
4500
|
0-100
|
≤400
|
5960×1900×3080
|
|
GTS1848
|
450
|
15
|
1800
|
4800
|
0-100
|
≤400
|
6500×2350×4000
|
|
GTS2055
|
600
|
22
|
2000
|
5500
|
0-100
|
≤400
|
7500×2550×4800
|
|
GTS2265
|
800
|
30
|
2200
|
6500
|
0-100
|
≤400
|
8500×2750×5000
|
Main Features of vibrating screen machine :
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
|
Packaging
|
|
|
|
Size
|
Depends on models
|
|
|
Weight
|
Depends on models
|
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
