220V/380V/440V High Gold Recovery Mobile Mine Washing Plant 5-10 Ton Sieving Gold Trommel Screen
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | ZHENGZHOU SINOLION |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $4,080.00/sets |
| Packaging Details: | All products will be processed to be rustproof and moisture proof before delivery. <br>20GP container or 40GP container <br>Equipment is packed with plastic wrap or steel case, depends on machine weight. <br>Motor is packed with steel case or wooden case. |
| Supply Ability: | 50 Set/Sets per Month gold trommel screening plant |
|
Detail Information |
|||
| Applicable Industries: | Energy & Mining | Showroom Location: | Egypt, United Kingdom, United States, France, Germany |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator |
| Production Capacity: | 5-10t/h | Voltage: | 220V/380V/440V |
| Dimension(L*W*H): | 3.0m*0.8m*1.6m | Weight: | 400 KG, 400KG |
| Warranty: | 1 Year | Marketing Type: | New Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Engine, Gearbox |
| Key Selling Points: | Energy Saving | Application: | Gold |
| Product Name: | Gold Mining Machine | Keywords: | Centrifugal Gold Concentrtor |
| Usage: | Mining Concentration | Quality: | 100% Tested |
| Installation: | Technical Guidance | Color: | Customized Making |
| Capacity: | 5-10T/H | Material: | Steel |
| Port: | Qingdao, Tianjin, Lianyungang, Shanghai Guangzhou( As Client Request) | ||
Product Description
Product Description
The 5-10 tons per hour gold laundering facility is equipped with a sluice box and internal flushing pipes. This machine is ideal for small miners or as a test plant. It also consumes less water, has high concentration capacity, and is equipped with a large lock box, which can be cleaned during batch testing or after a day of work. At the same time, it can provide you with a gold recovery rate of about 98%. The recovery fineness can reach 300 mesh. Adopting continuous processing and advanced reverse spiral system, it helps you improve the gold recovery rate and reduce the operator's operating ability. Mobile gold laundering equipment is a gold laundering equipment that can be moved on land. It has the characteristics of compact structure, strong integrity, light weight, large processing capacity, simple operation, reliable operation, convenient maintenance and convenient operation. Mobile trommel screens offer a simple, efficient and cost-effective solution to upgrade a variety of materials and optimize subsequent processing steps. This screening method not only helps reduce manual operations and investment, but also improves product quality while allowing for fast, high-volume processing. The drum screen is specially designed for beneficiation of placer gold ore, river placer gold, diamonds, etc.

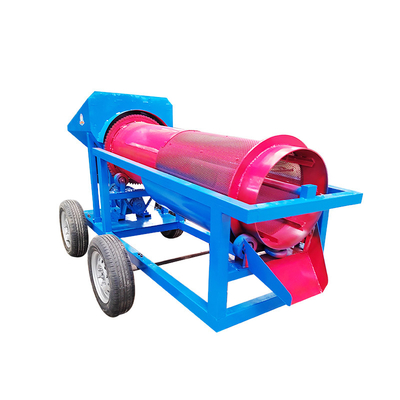

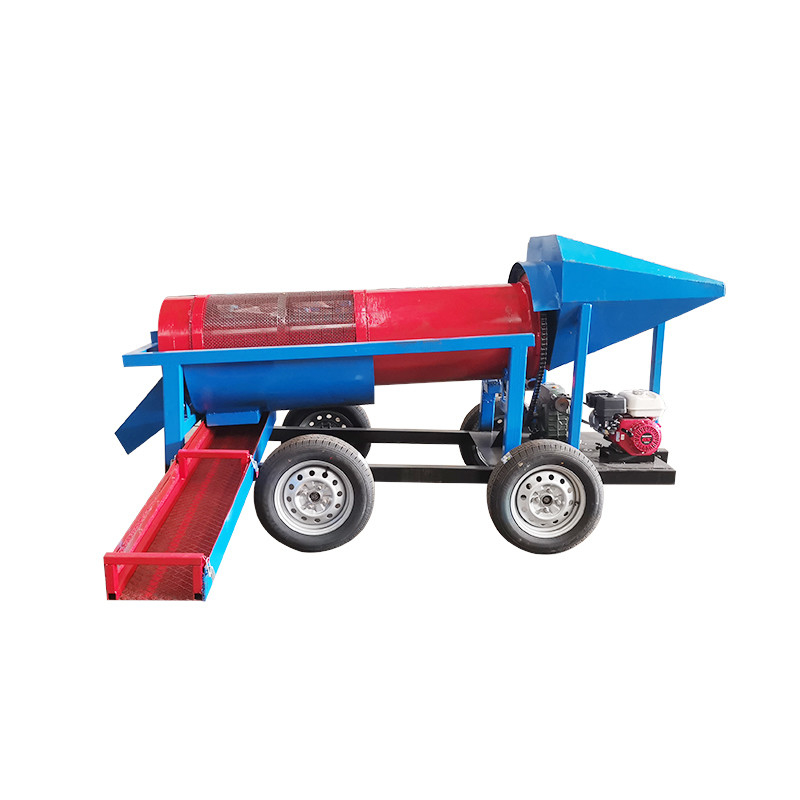

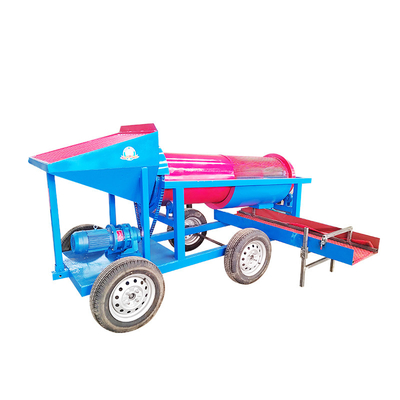

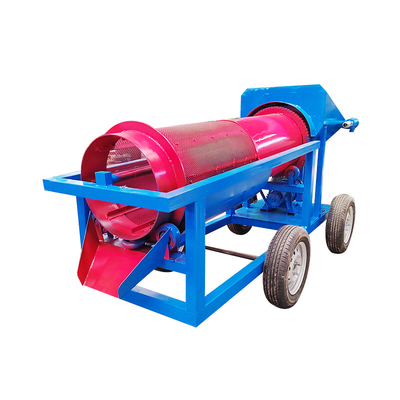

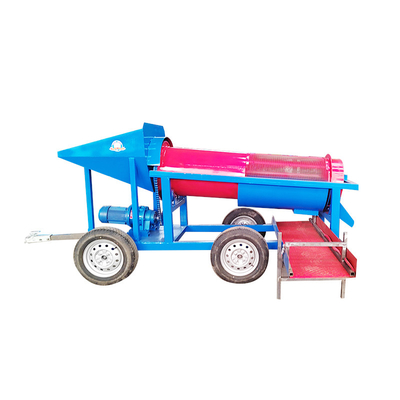

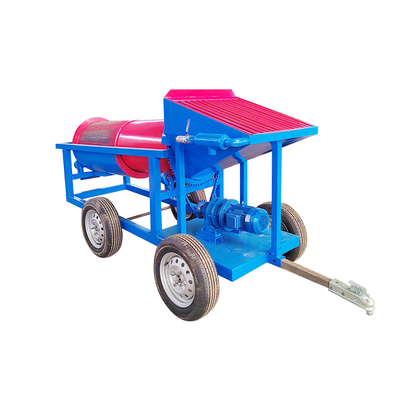

The 10 tons per hour mobile gold washing equipment is composed of a feeding hopper, a screen drum, a gold chute and wheels. It overcomes the problem of screen blocking when various vibrating screens sieve wet materials. Increase throughput and reliability of screening systems. The maximum size of the under-sieve product is 100mm, the medium size is 10-50mm, and the smallest size can reach 3mm. The products are well received by customers at home and abroad. The first section of the mini gold panning machine is a 910mm steel roller, the second section is an 840mm manganese wire mesh with a hole diameter of 5mm, the third section is a 160mm steel coil, a round steel diameter of 10mm, a small opening of 50mm, a tire diameter, four tires, and an axle. Can be equipped with Honda diesel or Hongda gasoline engine, equipped with reducer, chain, outriggers, rollers. The unloading chute is 400mm wide and 1500mm long, with gold grass inside.
Sinolion offers turnkey solutions for 5-300 tph Gold Mining Equipment. We are one of the leading project suppliers. Gold Washing Plant and we work closely with our customers to fulfill their specific needs for a customized packaged solution. Specialized in the fabrication of these machines for 30 years and this enables us to be in a leading position in the field of Mining Equipment-Gold Washing Plant.
Specification
Model | Trommel Diameter (mm) | Trommel Length (mm) | Capacity (t/h) | Dimension (mm) |
GMTS0519 | 500 | 1910 | 5-10t/h | 3000*1000*1800 |
Packing & Delivery
All products will be processed to be rustproof and moisture proof before delivery. 20GP container or 40GP container Equipment is packed with plastic wrap or steel case, depends on machine weight. Motor is packed with steel case or wooden case. Control panel is packed with wooden case. Loading container in factory.
