Product Details:

Place of Origin: Henan, China
Brand Name: Sinolion
Certification: CE ISO

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $2,400.00/sets >=1 sets
Get Best Price Contact Now

Detail Information

Type: Briquette Machines Applicable Industries: Manufacturing Plant, Energy & Mining
Weight (KG): 1300 Showroom Location: None
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: Ordinary Product Warranty Of Core Components: 1 Year
Core Components: Engine, Bearing, Motor, Gear Condition: New
Production Capacity: 2t/h Charcoal Briquette Line Motor Type: AC Motor
Dimension(L*W*H): 2026*1530*1760mm Warranty: 3 Years
After-sales Service Provided: Engineers Available To Service Machinery Overseas Raw Material: Charcoal Fines
Capacity: 2t/h Charcoal Briquette Line Application: Make Charcoal Fines To Briquettes
Name: Charcoal Briquette Line Briquette Shape: Pillow Shape Charcoal Briquettes
Voltage: 380v 50hz 3phase Briquette Size: 45*26mm
Roller Material: 65Mn

Product Description

Whole Line Describe
2026*1530*1760mm Charcoal Activated Carbon Briquette Machine with Advanced Technology 0

Sinolion supply 2tph charcoal activated carbon briquette machine design

According to purchaser’s requirements, our company supply 2t/h charcoal briquettes line design and production. The obvious advantage of oue design is low cost, highly-automotive. Introducing advanced processing technology, qualified equipment, simple, stable control system and best after sale service, these made our customer's charcoal briquette production line achieved the requirements of our customers both in output and the quality.

Raw material information and technical Standard

Raw material information
Technical requirment
Raw material: Charcoal fines
Capacity : 2t/h charcoal briquette line
Material moisture:≤16%
Briquette size and :45mm, thickness:32mm
Material size: ≤10mm
Briquette shape : Round shape

C.C.S of briquette:  80-100kg/briquette
2026*1530*1760mm Charcoal Activated Carbon Briquette Machine with Advanced Technology 1
2026*1530*1760mm Charcoal Activated Carbon Briquette Machine with Advanced Technology 2
2026*1530*1760mm Charcoal Activated Carbon Briquette Machine with Advanced Technology 3
2026*1530*1760mm Charcoal Activated Carbon Briquette Machine with Advanced Technology 4
Process Flowchart

To meet customer's demands, our engineers designed several scheme of this 2t/h charcoal briquette line.

The charcoal briquette line process flowchart which our engineer fixed together with our customer as below

2026*1530*1760mm Charcoal Activated Carbon Briquette Machine with Advanced Technology 5
Euipment Information

charcoal briquettes line Relative Equipment
The 2t/h charcoal briquette line supply scope includes:Belt conveyor(4 set),  Wheel grinding mixer (2set), Binder stirring pot (1 set), Box feeder(1 set), SLB-360 Model briquette machine (1 set) ,, Belt conveyor(4 set),mesh belt dryer (1 sets)Electric control cabinet(1set).

1.Pit

We have supplied the drawings of pit and built by the buyer

2 Wheel Grinding Mixer of charcoal briquette line
It is specially designed for the agitation machine. It has two 1500kg rollers and internal & exterior scrapers which make the adhesive material well mixed in short time, when it is agitated and crushed. According to the different proportions of the material, each time adds 700-1000kg material and agitated 2-4 minutes. The machine has automatic discharge device, thus it will be greatly save the labors.

2026*1530*1760mm Charcoal Activated Carbon Briquette Machine with Advanced Technology 6
Model
S1120
Design capacity (kg/time)
100-300kg charcoal
Stir time(min/time)
3-5
Runner wheel size(mm)
750*240mm
Power(kw)
15
Color
Blue
Overall size (mm)
2000*900*1800
Quantity(set)
1
2026*1530*1760mm Charcoal Activated Carbon Briquette Machine with Advanced Technology 7

3.Box Feeder of sponge charcoal briquette line
For the wheel grinding mixer is batch mixer(input ,output ), the box feeder store the material temporary after mixed, makes the briquette machine normal working and feeding smoothly.

2026*1530*1760mm Charcoal Activated Carbon Briquette Machine with Advanced Technology 8
Model
650
Belt width(mm)
600mm
Power(kw)
7.5
Color
Blue
Overall size (mm)
3000*650*670
Quantity(set)
2
2026*1530*1760mm Charcoal Activated Carbon Briquette Machine with Advanced Technology 9

4.Binder Stirring Pot of charcoal briquette line
The agitated adhesive maybe controlled by quantitative vessel or timely controlled by mud pump, and then it will be add to the roller rolling mixing equipment in proportion and mixed with the material. There is a tee on the both bottom of the agitation tank to connect the machine and the mud pump to quantitatively feed the roller rolling mixing equipment.

2026*1530*1760mm Charcoal Activated Carbon Briquette Machine with Advanced Technology 8
Model
Φ1.0*1.2
Stirring layers
3
Power(kw)
3
Reducer
BLD13
Capacity every time
630L
Color
Blue
Overall size (mm)
Φ1200*2300
Quantity(set)
1
2026*1530*1760mm Charcoal Activated Carbon Briquette Machine with Advanced Technology 11

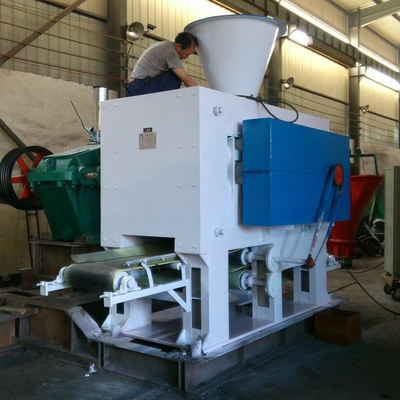

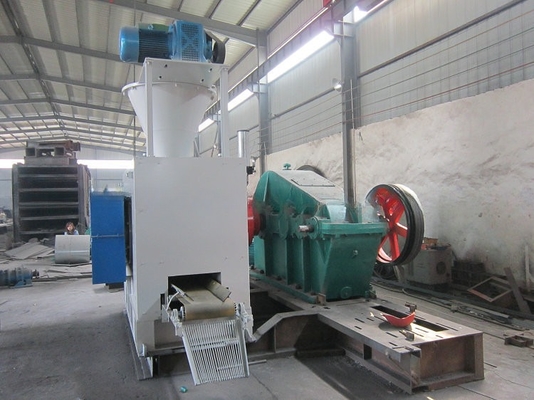

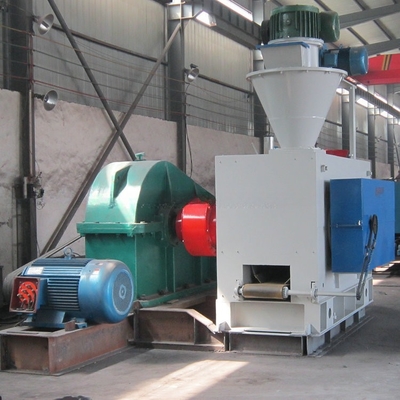

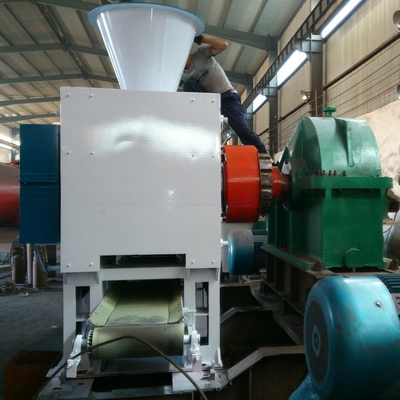

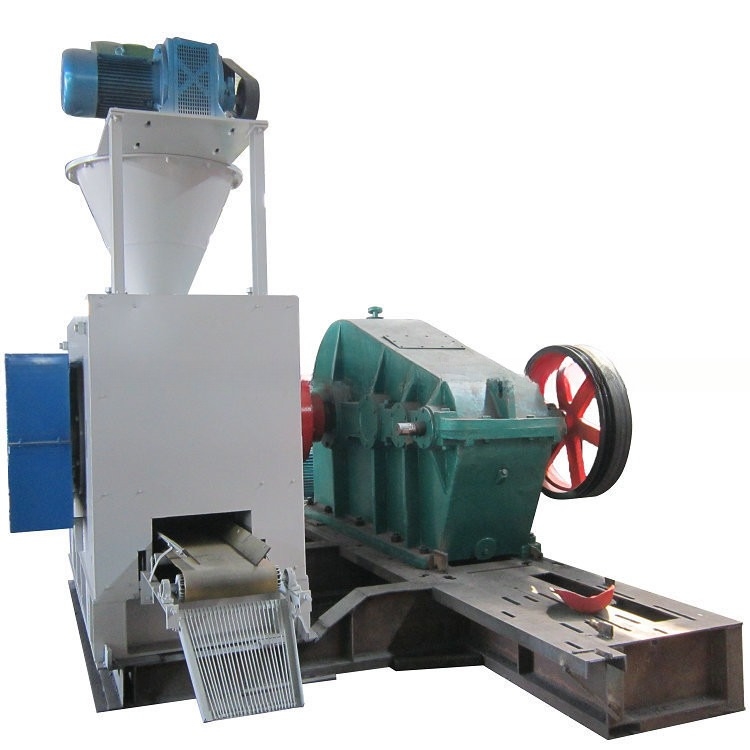

5.Briquette machine  of charcoal briquette line
By pressing, the machine can mold a variety of mineral power, metal power, coal power, coke power, charcoal power and other material. Due to the use of forced squeeze by pair roller, the products have high density, high strength and high hardness. Besides, the press roller of the machine with good abrasion resistance, lengthening effectively service life of the press roller.

2026*1530*1760mm Charcoal Activated Carbon Briquette Machine with Advanced Technology 12
Model
SLB360
Reducer
ZQ350
Motor model
Y132M-4
Motor power(kw)
7.5
Roller size(mm)
360*250
Roller material
65Mn
Color
gray
Overall size (mm)
2260*1530*1760
Quantity(set)
1
2026*1530*1760mm Charcoal Activated Carbon Briquette Machine with Advanced Technology 13

Briquette machine pressure roller

2026*1530*1760mm Charcoal Activated Carbon Briquette Machine with Advanced Technology 14
Roller
SLB-360
1250-850
Roller material
65Mn
ZGCr15SiMn
Briquette size
45*26mm
Φ25*13mm
Briquette shape
Oblate
Oblate
Roller Diameter
360mm
850mm
Roller width
250mm
350mm

6.Mesh Belt Dyer of charcoal briquette ine
The charcoal briuqettes mesh belt dryer’s work principle is as follows: the charcoal briquettes laid evenly on the mesh belt, driven by the transmission device, the materials move back and forth in the dryer, where hot wind passes through the material and the water vapor is discharged from the weep hole, so as to achieve the purpose of drying. The dryer is composed of standard sections; to save place, the dryer can be made in multi layers, and the common structure includes three layers with two rooms and five layers with two rooms. with 6-40m length and 0.6-3m effective width.

2026*1530*1760mm Charcoal Activated Carbon Briquette Machine with Advanced Technology 15
Model
26.5*2.44*5(layer)
Reducer
BWED74
Motor power(kw)
7.5*2
Mesh belt diameter (mm)
3
Color
whrite
Fan
Y5-48 NO-8C
Fan power(kw)
22
Fan quantity (set)
4
Overall size (mm)
26500*2440* 5 layer
Quantity(set)
1
2026*1530*1760mm Charcoal Activated Carbon Briquette Machine with Advanced Technology 16
