Gold Diamond Rotary Trommel Screen Sieving Machine for Gold and Diamond Recovery
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | ZHENGZHOU SINOLION |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $5,310.00/sets |
| Packaging Details: | All products will be processed to be rustproof and moisture proof before delivery. <br>20GP container or 40GP container <br>Equipment is packed with plastic wrap or steel case, depends on machine weight. <br>Motor is packed with steel case or wooden case. |
| Supply Ability: | 60 Set/Sets per Month gold trommel screening plant |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Farms, Home Use, Construction Works , Energy & Mining | Showroom Location: | Canada, United Kingdom, United States, Germany, Philippines |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator, Gravity Separation |
| Production Capacity: | 10-30t/h | Voltage: | 220V/380V/440V |
| Dimension(L*W*H): | 3.2m*1.4m*1.9m | Weight: | 1200 KG |
| Warranty: | 1 Year, 1 Year Excluding Spare Parts | Marketing Type: | New Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Pump, Pressure Vessel, Engine |
| Key Selling Points: | Easy To Operate | Application: | Gold Mining |
| Keywords: | Gold Washing Vibrating Screen | Name: | Gold Ore Processing Equipment |
| Material: | Steel | Installation: | Technical Guidance |
| Processed Materials: | Alluvial Gold Sand Gold | Color: | As Your Request |
| Product Name: | Gold Mining Machine | Port: | Qingdao, Tianjin, Lianyungang, Shanghai Guangzhou( As Client Request) |
Product Description
Product Description

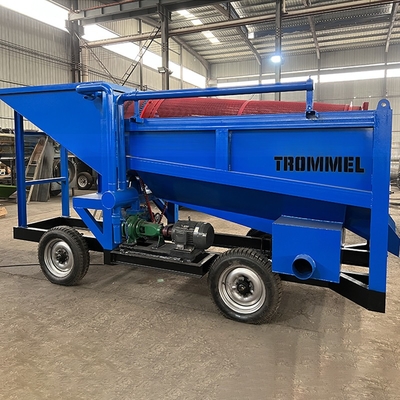

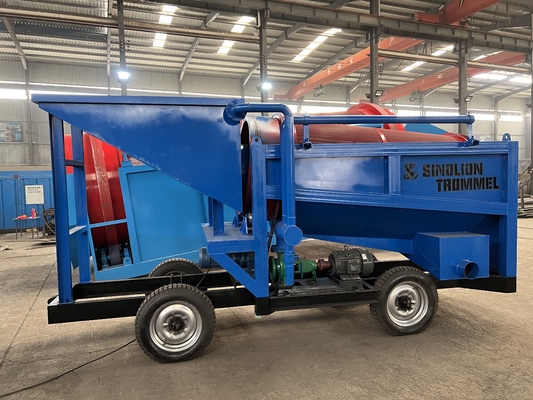

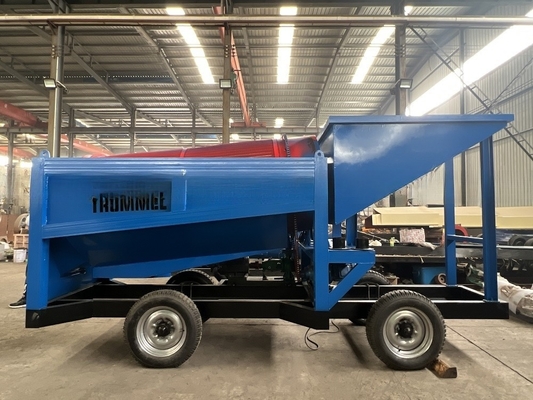

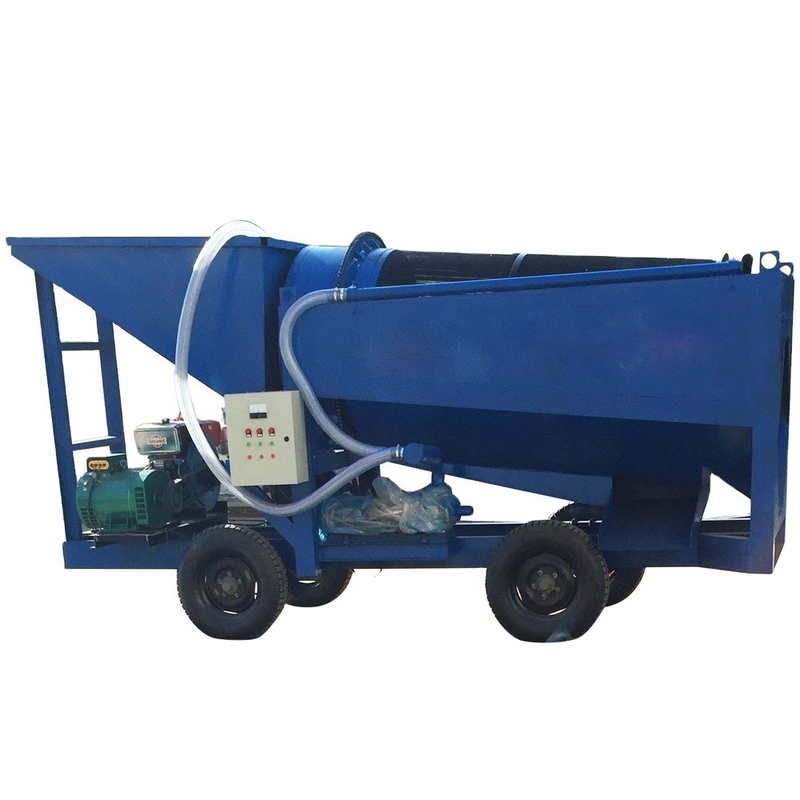

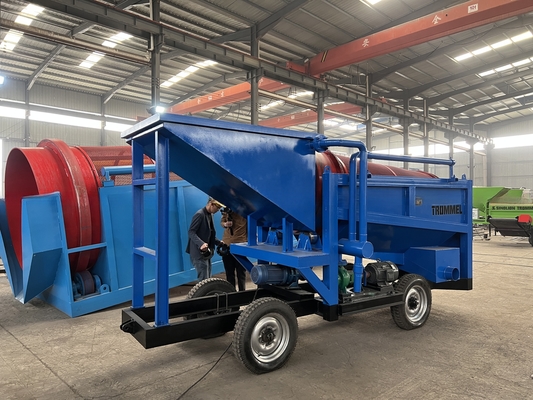

The mobile gold trommel screen is a movable gold selection platform, mainly used in dry land, beaches, and ancient rivers. It is a kind of gravity mineral processing equipment, which has the characteristics of less investment, less labor, quick return on investment, simple operation, and flexibility.
The size of the feed port: ≤300 mm
Round steel gap： 30mm
Hopper size： 1600x1100x1000mm
Specifications
Model | Drum diameter (mm) | Drum length (mm) | Capacity (t/h） | Power （kw） |
GMTS1020 | 1000 | 2000 | 10-30 | 4 |
Working Principle
The trommel screen is mainly composed of a motor, a reducer, a drum device, a frame, and a material inlet and outlet. The motor is connected with the roller device through the reducer through the coupling, and drives the roller device to rotate around its axis.
