100-200 Tons/Hour Portable Gold Mining Trommel Screen Plant with Advanced Technology
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | SinoLion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $17,900.00/sets 1-1 sets |
| Packaging Details: | All products will be processed to be rustproof and moisture proof before delivery. <br>20GP container or 40GP container <br>Equipment is packed with plastic wrap or steel case, depends on machine weight. <br>Motor is packed with steel case or wooden case. |
| Supply Ability: | 50 Set/Sets per Month gold trommel screening plant |
|
Detail Information |
|||
| Applicable Industries: | Manufacturing Plant, Construction Works , Energy & Mining, Other | Showroom Location: | United States |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator |
| Production Capacity: | 100-200 TONS/HOUR | Voltage: | 220V/380V/415V/480V |
| Dimension(L*W*H): | 8000*2200*4000 | Weight: | 6800 KG |
| Warranty: | 1 Year | Marketing Type: | Ordinary Product, Hot Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Engine, Gearbox |
| Key Selling Points: | Energy Saving, Obvious Gold-selected Effect | Installation: | Supply Manual To Guide User |
| Sieve: | Manganese Wire | Color: | Yellow, White, Red, Blue, Gray |
| Port: | Qingdao, Tianjin, Lianyungang, Shanghai Guangzhou( As Client Request) | ||
Product Description
Product Description

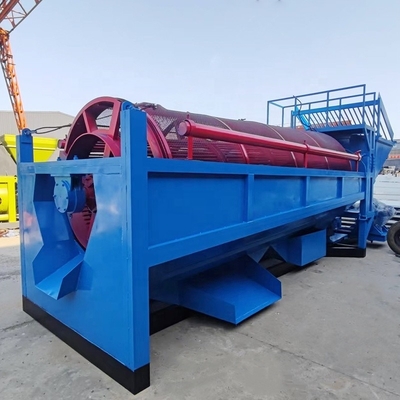

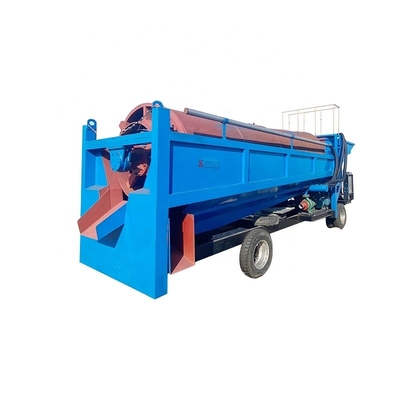

Our equipment is called gold mobile trommel screen, which is used to collect gold from placer gold and alluvial gold. Its
advantages are flexible movement, simple operation, high efficiency, and obvious gold selection effect.
advantages are flexible movement, simple operation, high efficiency, and obvious gold selection effect.
Due to the large processing capacity of this equipment, it is additionally equipped with a manual operation table to facilitate the observation of material processing.
We have professional engineers who can customize suitable equipment for your situation, welcome to consult!
We have professional engineers who can customize suitable equipment for your situation, welcome to consult!
Operation

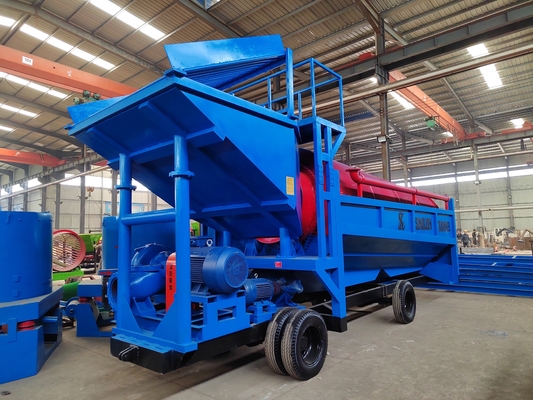

1、 Raw material feeding The raw material input through the hopper inlet is pushed into the screen drum by the powerful water pressure of the nozzle loaded in the hopper. 2、Washing The screen barrel has a built-in galvanized seamless water spray pipe (diameter 42mm), and the raw materials are washed by water and selected through the gold panning tank through the rotation of the trommel screen. 3、Fine gold collection Light dirt and sand are washed away by the water, and heavier gold will gather in the gold blanket.

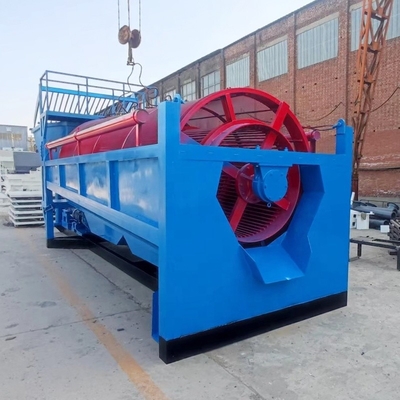

The drum part is made of round steel and manganese wire, and the outer screen is made of manganese wire.which is strong and
durable. The design of the double-layer screen improves the screening efficiency on the onenand. and can screen materials of three specifications On the one hand. it protects and improves the service life of the screen.
durable. The design of the double-layer screen improves the screening efficiency on the onenand. and can screen materials of three specifications On the one hand. it protects and improves the service life of the screen.
Technical Parameters
Model | Capacity (t/h) | Power (kw) | Diameter (mm) | Length(mm) | Discharge(mm) | Input(mm) | Dimension (mm) |
GMTS0519 | 5—10 | 1.5 | 500 | 1910 | ≤300 | 0—100 | 3000*1000*1800 |
GMTS1020 | 10—30 | 4 | 1000 | 2000 | ≤300 | 0—100 | 3200*1400*1900 |
GMTS1225 | 30—50 | 5.5 | 1200 | 2500 | ≤300 | 0—100 | 4300*1650*2220 |
GMTS1548 | 80—150 | 11 | 1500 | 4800 | ≤300 | 0—100 | 8000*2200*3600 |
GMTS1848 | 100—200 | 15 | 1800 | 4800 | ≤300 | 0—100 | 8000*2200*4000 |

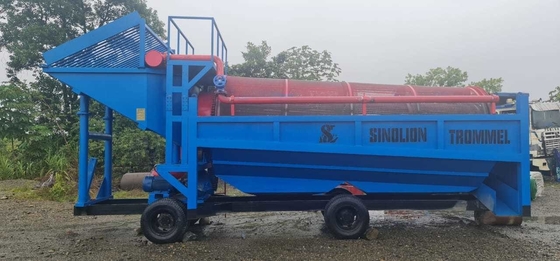

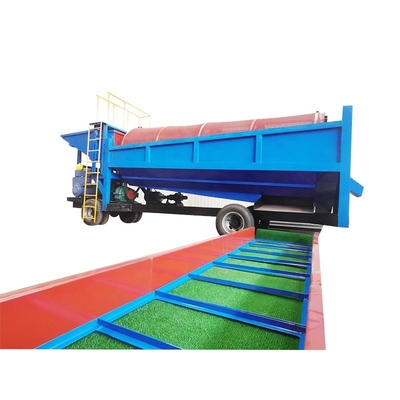

The mobile trommel gold washing plant is designed for alluvial/placer gold ore processing, it's consist a half covered trommel screen, one diesel engine/ electric motor, water pump& water pipes, and other facilities such as the feeding hoper and the mobile system. This mobile trommel machine normally working together with sluice box , gold centrifugal concentrator and shaking table to form a complete concentration plant(check below picture) .
Packing & Delivery
All products will be processed to be rustproof and moisture proof before delivery. 20GP container or 40GP container. Equipment is packed with plastic wrap or steel case, depends on machine weight. Motor is packed with steel case or wooden case. Control panel is packed with wooden case. Loading container in factory.
