Double Screen Gravity Separator Gold Trommel Washing Plant Multiple Material Cleaning
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $7,750.00/sets 1-2 sets |
| Packaging Details: | All products will be processed to be rustproof and moisture proof before delivery. <br>20GP container or 40GP container <br>Equipment is packed with plastic wrap or steel case, depends on machine weight. <br>Motor is packed with steel case or wooden case. |
| Supply Ability: | 50 Set/Sets per Month gold trommel screening plant |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Construction Works , Energy & Mining, Other | Showroom Location: | Canada, United States |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator |
| Production Capacity: | 90% | Voltage: | 220V/380V/415V/480V |
| Dimension(L*W*H): | 3200*1400*1900 | Weight: | 1900 KG |
| Warranty: | 1 Year | Marketing Type: | Hot Product 2023, Hot Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Engine, Gearbox |
| Key Selling Points: | High Rigidity | Installation: | Supply Manual To Guide User |
| Customizable: | Logo / Packing / Graphic | Advantege: | Obvious Gold-selected Effect |
| Double Screen: | Multiple Material Output | Port: | Qingdao, Tianjin, Lianyungang, Shanghai Guangzhou( As Client Request) |
Product Description
Product Description

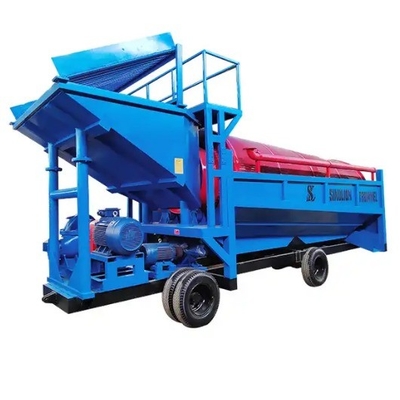

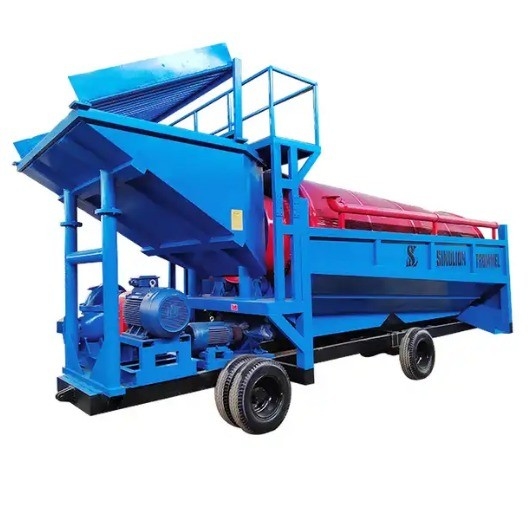

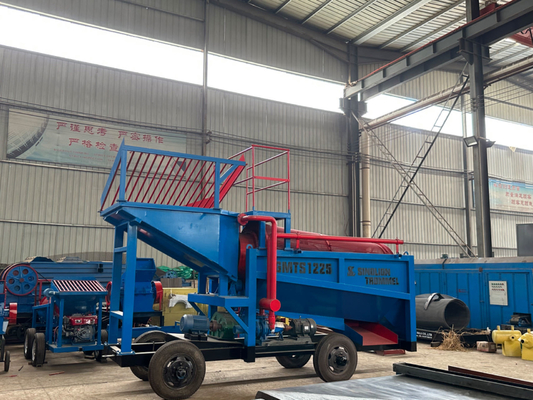

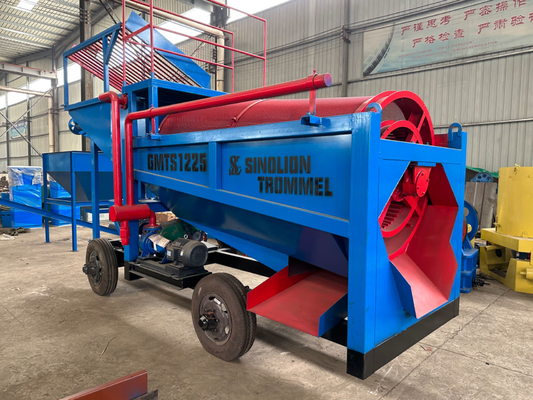

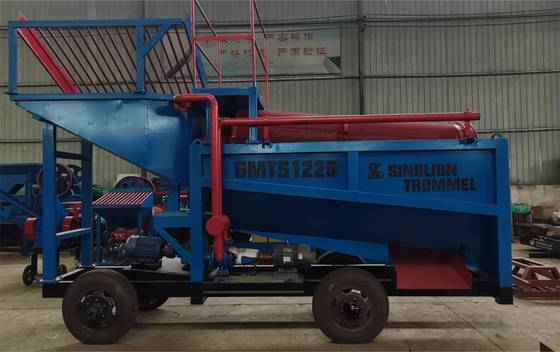

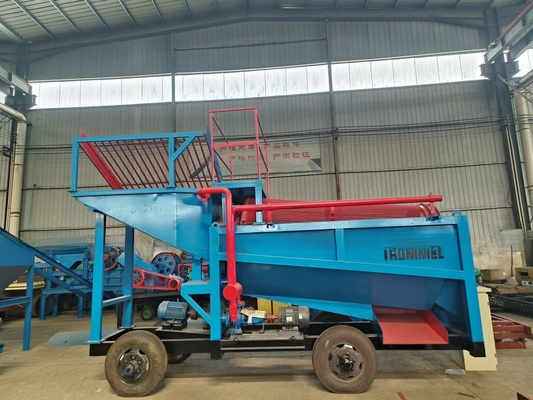

Our equipment is called gold mobile trommel screen, which is used to collect gold from placer gold、alluvial gold and rock gold .Gold mobile trommel screen is composed of feed hopper, drum, motor, water pump, reducer, wheel roller, transmission device (optional parts: gasoline engine and belt conveyor).
It is mainly used in the processing and collection of alluvial gold and placer gold. Its advantages include flexible movement, small size and high screening efficiency.
Sluice Box
Gold sluice box is lined with a professional sticky gold blanket made of polyethylene non-woven bottom, which has strong catching ability, high recovery rate, and is also effective for fine-grained gold. And it has the advantages of favorable price, simple structure and easy operation.
Double Screen
The drum part is made of round steel and
manganese wire, and the outer screen is made of manganese wire.which is strong and
durable. The design of the double-layer screen improves the screening efficiency on the one hand. and can screen materials of three specifications, On the other hand. it protects and improves the service life of the screen.
manganese wire, and the outer screen is made of manganese wire.which is strong and
durable. The design of the double-layer screen improves the screening efficiency on the one hand. and can screen materials of three specifications, On the other hand. it protects and improves the service life of the screen.

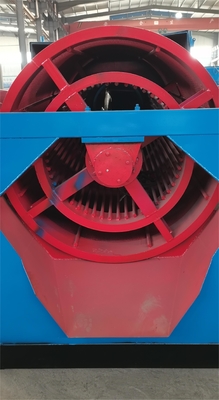

Trommel Screen
The drum part is made of round steel and manganese wire, and also has three outlets.it improves the screening efficiency of materials, the maximum product under the sieve is 100mm. the middle is 10-50 mm, the thinnest can reach 3 mm.
Technical Parameters
Model | Capacity (t/h) | Power (kw) | Diameter (mm) | Length(mm) | Discharge(mm) | Input(mm) | Dimension (mm) |
GMTS0519 | 5—10 | 1.5 | 500 | 1910 | ≤300 | 0—100 | 3000*1000*1800 |
GMTS1020 | 10—30 | 4 | 1000 | 2000 | ≤300 | 0—100 | 3200*1400*1900 |
GMTS1225 | 30—50 | 5.5 | 1200 | 2500 | ≤300 | 0—100 | 4300*1650*2220 |
GMTS1548 | 80—150 | 11 | 1500 | 4800 | ≤300 | 0—100 | 8000*2200*3600 |
GMTS1848 | 100—200 | 15 | 1800 | 4800 | ≤300 | 0—100 | 8000*2200*4000 |
Packing & Delivery
Wooden box packing or Container shipping.
