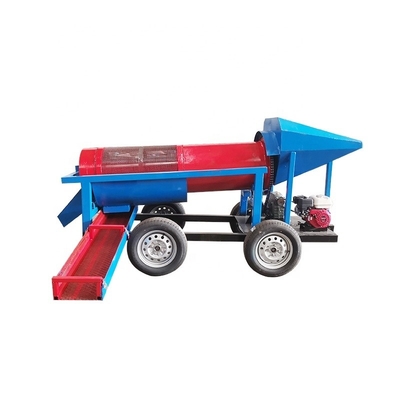

Small and Placer Gold Washing Plant Portable Gold Mining Equipment with 220V Voltage
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $4,080.00/sets 1-2 sets |
|
Detail Information |
|||
| Applicable Industries: | Manufacturing Plant, Farms, Home Use, Construction Works , Energy & Mining | Showroom Location: | Canada, United States, Australia |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator |
| Production Capacity: | 5-10T/H | Voltage: | 220V |
| Dimension(L*W*H): | 3000*1000*1800 | Weight: | 400 KG |
| Warranty: | 1 Year | Marketing Type: | Ordinary Product, Hot Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Engine, Gearbox |
| Key Selling Points: | Long Service Life, High Separation Efficiency | Advantege: | Obvious Gold-selected Effect |
| Installation: | Supply Manual To Guide User | Customizable: | Logo / Packing / Graphic |
Product Description
Product Description

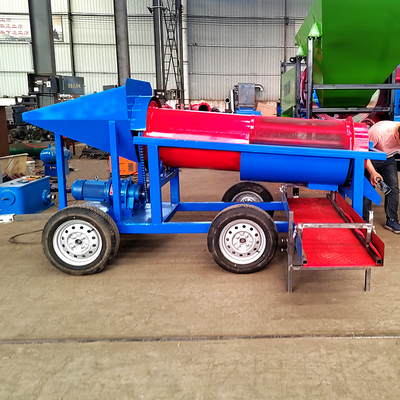

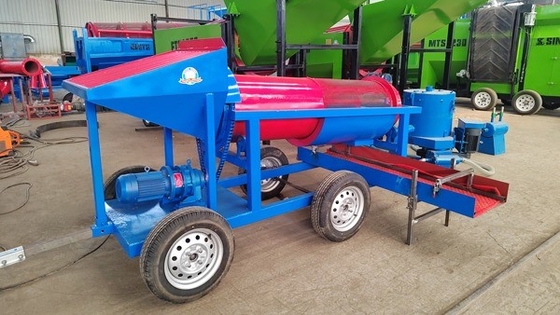

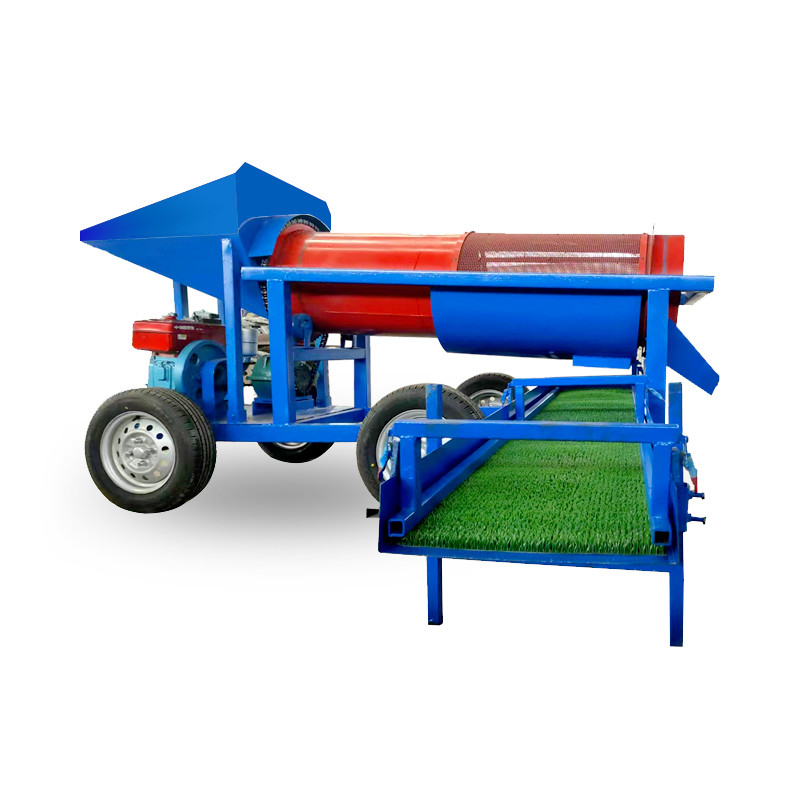

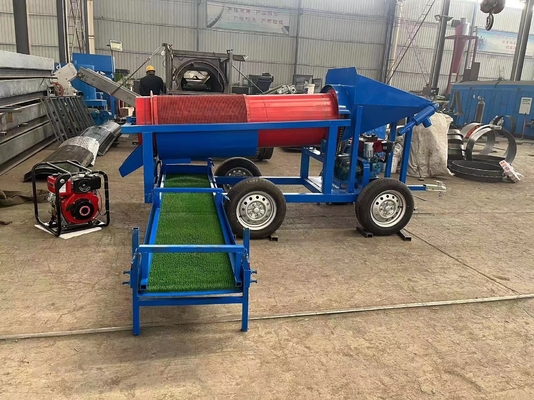

Our production is called a mobile gold trommel screen , also known as mobile gold car. The sieve-type gold mobile washing equipment is mainly used for sand splitting and gold selection.
It is suitable for energy and mining, building materials store, manufacturing plant, construction engineering, energy and mining.
Our trommel screen has a lot of advantages ,such as: move conveniently ,well-adapted，Integrated design, operate simply, labor-saving,strongly-processing capacity, work efficiently, obvious gold-selected effect and so on.
It is suitable for energy and mining, building materials store, manufacturing plant, construction engineering, energy and mining.
Our trommel screen has a lot of advantages ,such as: move conveniently ,well-adapted，Integrated design, operate simply, labor-saving,strongly-processing capacity, work efficiently, obvious gold-selected effect and so on.
Working Principle
1> Raw material feeding The raw material input through the hopper inlet is pushed into the screen drum by the powerful water pressure of the nozzle loaded in the hopper. 2> Washing The screen barrel has a built-in galvanized seamless water spray pipe (diameter 42mm), and the raw materials are washed by water and selected through the gold panning tank through the rotation of the trommel screen. 3> Fine gold collection Light dirt and sand are washed away by the water, and heavier gold will gather in the gold blanket.
Feeding hopper
Above the feed hopper there is a layer of grille made of round steel with a diameter of 20 mm and a spacing of 50 mm.,which prevents large materials from entering the hopper and destroying the equipment; the feed hopper is surrounded by water pipes, and high-pressure water is used to flush the materials to prevent blockage.

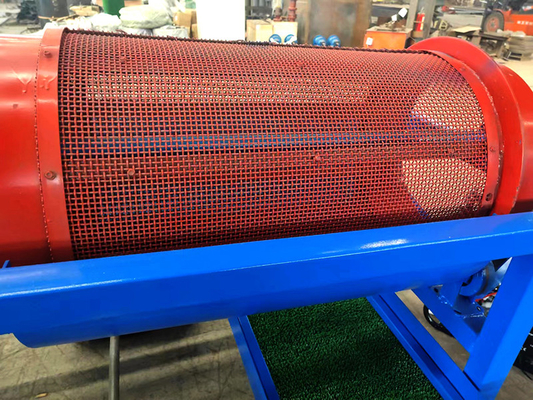

Screen Drum
The drum part is woven of manganese wire，the aperture of manganese wire screen is usually 5mm, and the range of customization is 2mm-80mm, which can be made according to customer requirements. And the manganese wire material is durable, not easy to corrode and block, and can be replaced.
Our mobile trommel screen is suitable for energy and mining, building materials store, manufacturing plant, construction
engineering, energy and mining.
engineering, energy and mining.
We have professional engineers who can customize suitable equipment for your situation, welcome to consult!
Technical Parameters
Model | Capacity (t/h) | Power (kw) | Diameter (mm) | Length(mm) | Discharge(mm) | Input(mm) | Dimension (mm) |
GMTS0519 | 5—10 | 1.5 | 500 | 1910 | ≤300 | 0—100 | 3000*1000*1800 |
GMTS1020 | 10—30 | 4 | 1000 | 2000 | ≤300 | 0—100 | 3200*1400*1900 |
GMTS1225 | 30—50 | 5.5 | 1200 | 2500 | ≤300 | 0—100 | 4300*1650*2220 |
GMTS1548 | 80—150 | 11 | 1500 | 4800 | ≤300 | 0—100 | 8000*2200*3600 |
GMTS1848 | 100—200 | 15 | 1800 | 4800 | ≤300 | 0—100 | 8000*2200*4000 |
Packing & Delivery
Wooden box packing or Container shipping.
