The grille is located above the feed hopper. It
is made of round steel with a diameter of 20mm and an interval of 50mm. The grille blocks larger diameter materials from the
hopper and prevents larger materials from entering the hopper from clogging and damaging the screen cylinder.
 |

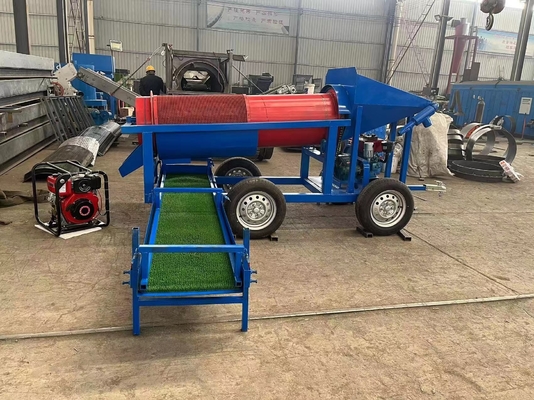

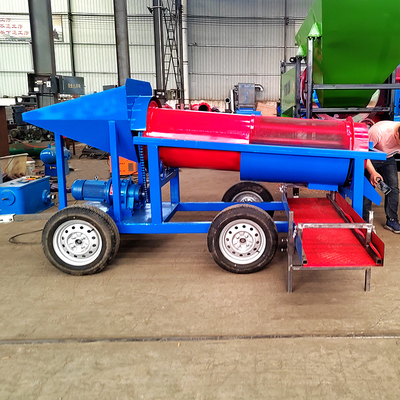

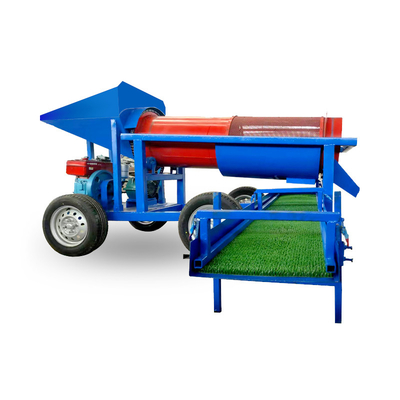

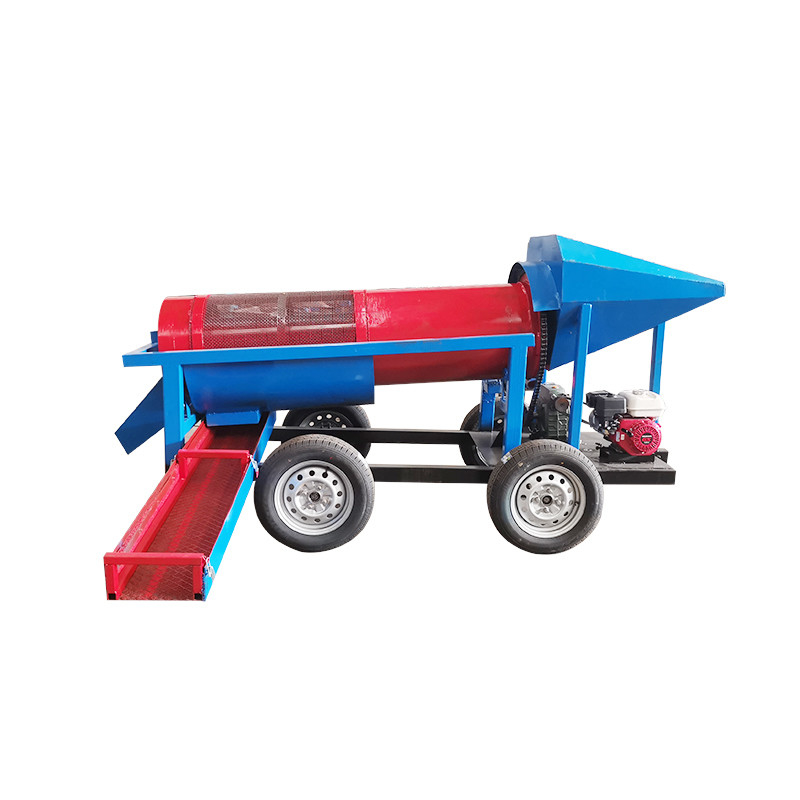

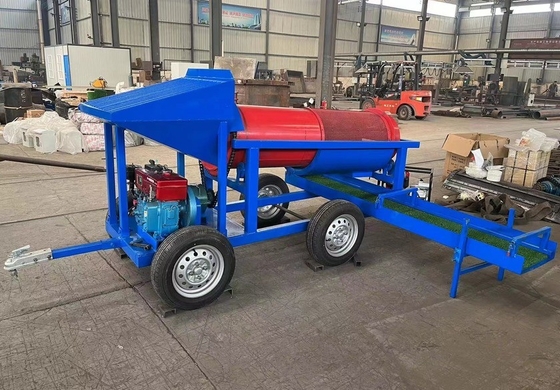

Mobile Gold Mining Trommel Screen with Obvious Gold-Selected Effect in 10 Tons Plant
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $4,080.00/sets 1-2 sets |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Farms, Home Use, Energy & Mining, Other | Showroom Location: | Canada, United States |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator |
| Production Capacity: | 98% | Voltage: | 220V/380V |
| Dimension(L*W*H): | 3000x800x1640 | Weight: | 600 KG |
| Warranty: | 1 Year | Marketing Type: | Ordinary Product, Hot Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Engine, Gearbox |
| Key Selling Points: | Long Service Life, Work Efficiently/obvious Gold-selected Effect | Customizable: | Logo / Packing / Graphic |
| Installation: | Supply Manual To Guide User | Feeding Size: | Less Than 300mm |
| Color: | Yellow, White, Red, Blue, Gray | ||
Product Description
Product Description
This 10 tons per hour capacity gold washing plant equipped with a reversible wet material hopper and screen. This machine is perfect for small scale miners or as a testing plant.Little water consumption but high efficient enrichment capability, equipped with a wide sluice box which need clean up just when batch test or after one day work. At the same time can provide you around 98% recovery rate. Recovery fineness can reach 300 mesh. With continuous processing, advanced reverse helix system, help you increase the gold recovery rate, lower ability to the operation of the operator.
Working Principle

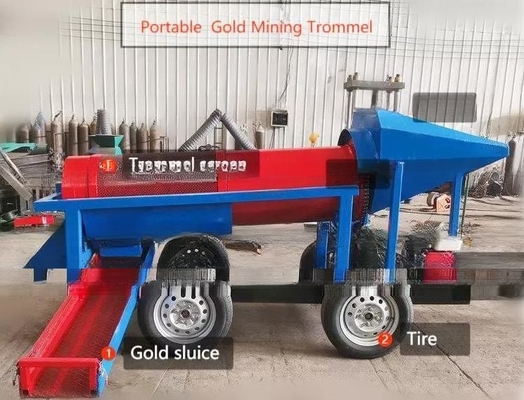

1> Raw material feeding The raw material input through the hopper inlet is pushed into the screen drum by the powerful water pressure of the nozzle loaded in the hopper. 2> Washing The screen barrel has a built-in galvanized seamless water spray pipe (diameter 42mm), and the raw materials are washed by water and selected through the gold panning tank through the rotation of the trommel screen. 3> Fine gold collection Light dirt and sand are washed away by the water, and heavier gold will gather in the gold blanket.
Grille
Screen drum
The drum part is woven of manganese wire，the aperture of manganese wire screen is usually 5mm, and the range of customization is 2mm-80mm, which can be made according to customer requirements. And the manganese wire material is durable, not easy to corrode and block, and can be replaced.
Technical Parameters
Model | Capacity (t/h) | Power (kw) | Diameter (mm) | Length(mm) | Discharge(mm) | Input(mm) | Dimension (mm) |
GMTS0519 | 5—10 | 1.5 | 500 | 1910 | ≤300 | 0—100 | 3000*1000*1800 |
GMTS1020 | 10—30 | 4 | 1000 | 2000 | ≤300 | 0—100 | 3200*1400*1900 |
GMTS1225 | 30—50 | 5.5 | 1200 | 2500 | ≤300 | 0—100 | 4300*1650*2220 |
GMTS1548 | 80—150 | 11 | 1500 | 4800 | ≤300 | 0—100 | 8000*2200*3600 |
GMTS1848 | 100—200 | 15 | 1800 | 4800 | ≤300 | 0—100 | 8000*2200*4000 |
More models
Case
Packing & Delivery
Wooden box packing or Container shipping.
