Obvious Gold-Selected Effect Mobile Gold Sand Mining Trommel Machinery Washing Plant
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | SinoLion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $7,750.00/sets 1-2 sets |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Construction Works , Energy & Mining, Other | Showroom Location: | Canada, United States, Australia |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator |
| Production Capacity: | 90% | Voltage: | 220V/380V/415V/480V |
| Dimension(L*W*H): | 3200*1400*1900 | Weight: | 1900 KG |
| Warranty: | 1 Year | Marketing Type: | Hot Product 2023, Hot Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Engine, Gearbox |
| Key Selling Points: | Long Service Life | Installation: | Supply Manual To Guide User |
| Advantege: | Obvious Gold-selected Effect | Double Screen: | Multiple Material Output |
| Customizable: | Logo / Packing / Graphic | ||
Product Description
Product Description

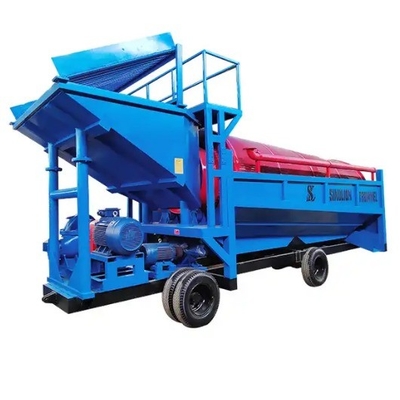

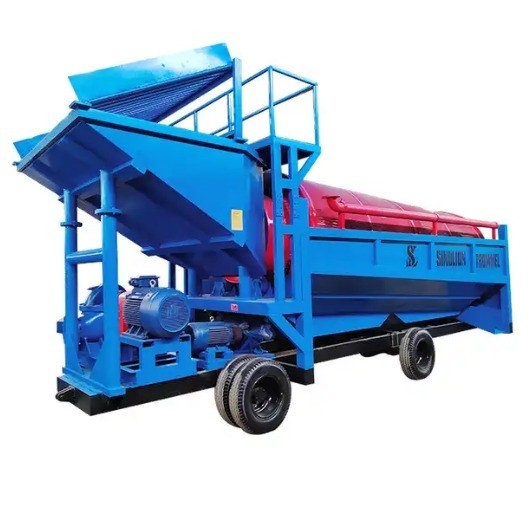

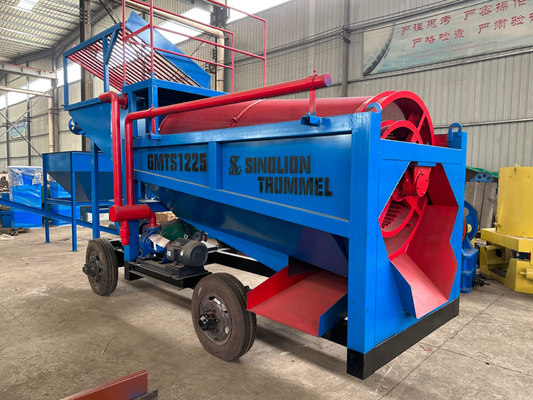

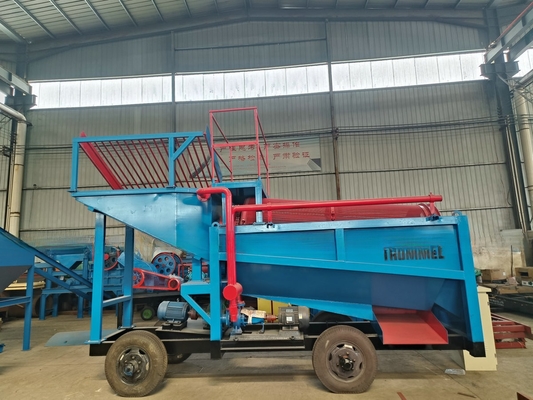

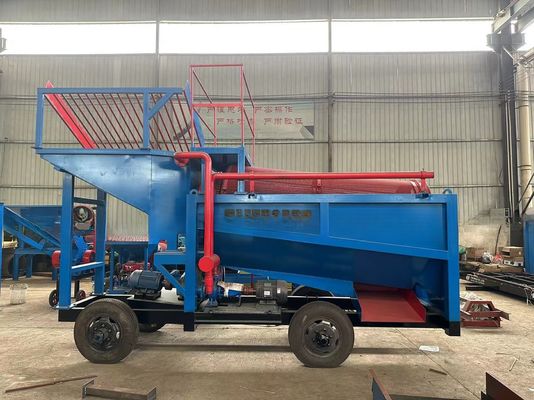

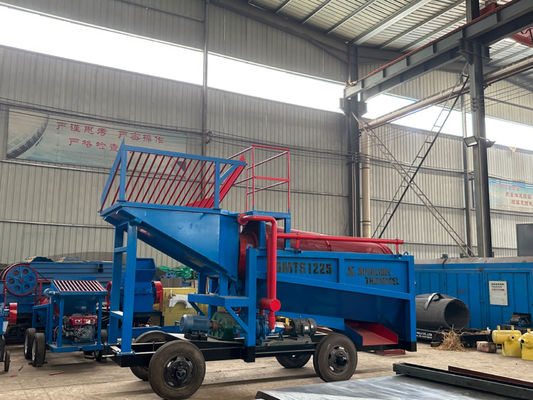

Our equipment is called gold mobile trommel screen, which is used to collect gold from placer gold、alluvial gold and rock gold .
Gold mobile trommel screen is composed of feed hopper, drum, motor, water pump, reducer, wheel roller, transmission device (optional parts: gasoline engine and belt conveyor). It is mainly used in the processing and collection of alluvial gold and placer gold. Its advantages include flexible movement, small size and high screening efficiency.
Sluice box
Gold sluice box is lined with a professional sticky gold blanket made of polyethylene non-woven bottom, which has strong catching ability, high recovery rate, and is also effective for fine-grained gold. And it has the advantages of favorable price, simple structure and easy operation.

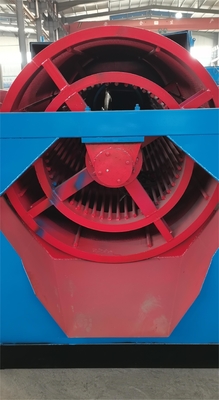

Trommel screen
The drum part is made of round steel and manganese wire, and also has three outlets.it improves the screening efficiency of materials, the maximum product under the sieve is 100mm. the middle is 10-50 mm, the thinnest can reach 3 mm.
Technical Parameters
Model | Capacity (t/h) | Power (kw) | Diameter (mm) | Length(mm) | Discharge(mm) | Input(mm) | Dimension (mm) |
GMTS0519 | 5—10 | 1.5 | 500 | 1910 | ≤300 | 0—100 | 3000*1000*1800 |
GMTS1020 | 10—30 | 4 | 1000 | 2000 | ≤300 | 0—100 | 3200*1400*1900 |
GMTS1225 | 30—50 | 5.5 | 1200 | 2500 | ≤300 | 0—100 | 4300*1650*2220 |
GMTS1548 | 80—150 | 11 | 1500 | 4800 | ≤300 | 0—100 | 8000*2200*3600 |
GMTS1848 | 100—200 | 15 | 1800 | 4800 | ≤300 | 0—100 | 8000*2200*4000 |
Packing & Delivery
Wooden box packing or Container shipping.
