98% Efficiency Gold Separation Mining Trommel Equipment for 6500 KG Gold Washing Plant

Product Details:

Place of Origin:	Henan, China
Brand Name:	Sinolion

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	$14,500.00/sets 1-1 sets
Packaging Details:	All products will be processed to be rustproof and moisture proof before delivery. <br>20GP container or 40GP container <br>Equipment is packed with plastic wrap or steel case, depends on machine weight. <br>Motor is packed with steel case or wooden case.
Supply Ability:	50 Set/Sets per Month gold trommel screening plant

Get Best Price Contact Now

Detail Information
Product Description

Detail Information
Applicable Industries:	Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works , Energy & Mining	Showroom Location:	Canada, United States, Australia
Condition:	New	Type:	Gravity Separator
Production Capacity:	98%	Voltage:	220V/380V/415V/480V
Dimension(LWH):	320014001900	Weight:	6500 KG
Warranty:	1 Year	Marketing Type:	Hot Product 2023
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	Bearing, Motor, Engine, Gearbox
Key Selling Points:	High Rigidity, High Separation Efficiency	Installation:	Supply Manual To Guide User
Customizable:	Logo / Packing / Graphic	Double Screen:	Multiple Material Output
Color:	Yellow, White, Red, Blue, Gray( Or As Client Request)	Port:	Qingdao, Tianjin, Lianyungang, Shanghai Guangzhou( As Client Request)

Product Description

The sieve-type gold washing equipment is mainly used for sand splitting and gold selection. It's called a mobile gold equipment , also known as mobile gold car.

This equipment consumes less water, has high concentration capacity, and is equipped with a large lock box. It can be cleaned up during batch testing or after a day of work, and can provide you with a recovery rate of about 98%. The recovery fineness can reach 10mm. Using continuous processing, the advanced reverse spiral system helps you increase gold recovery and reduce operator capacity.

The drum part is made of round steel and
manganese wire, and has three discharge ports, which can screen materials of three different specifications;
In addition, the screen can be designed with two different sizes of apertures, which greatly improves the screening efficiency of
materials and reduces working time. The maximum product under the screen is 100mm, the middle is 10-50mm, and the thinnest can be up to 3mm.

Gold mobile trommel screen is composed of feed hopper, drum, motor, water pump, reducer, wheel roller, transmission device (optional parts: gasoline engine and belt conveyor). It is mainly used in the processing and collection of alluvial gold and placer gold. Its advantages include flexible movement, small size and high screening efficiency.

Technical Parameters

Model	Capacity (t/h)	Power (kw)	Diameter (mm)	Length(mm)	Discharge(mm)	Input(mm)	Dimension (mm)
GMTS0519	5—10	1.5	500	1910	≤300	0—100	300010001800
GMTS1020	10—30	4	1000	2000	≤300	0—100	320014001900
GMTS1225	30—50	5.5	1200	2500	≤300	0—100	430016502220
GMTS1548	80—150	11	1500	4800	≤300	0—100	800022003600
GMTS1848	100—200	15	1800	4800	≤300	0—100	800022004000

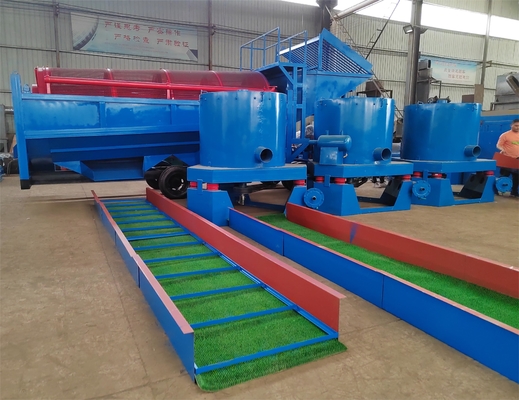

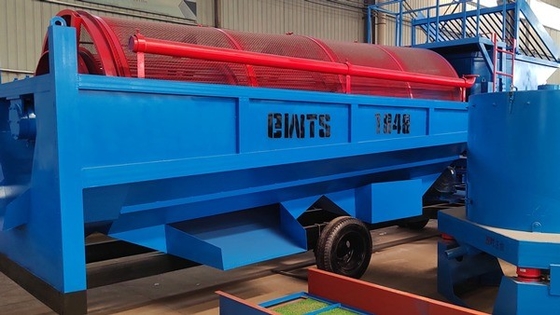

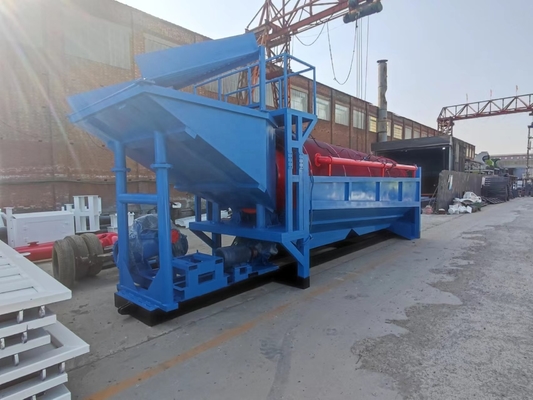

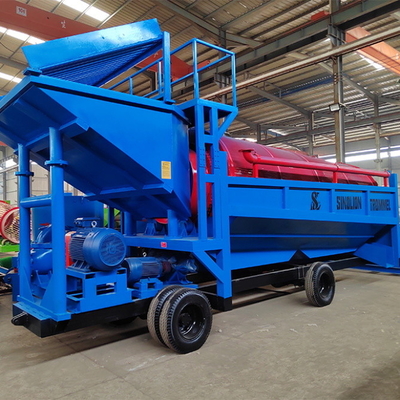

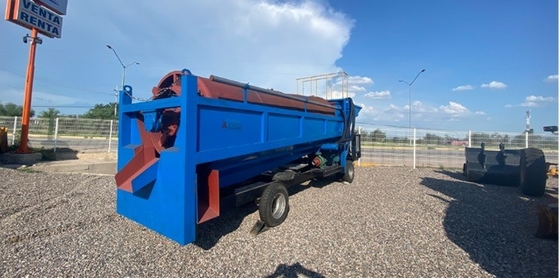

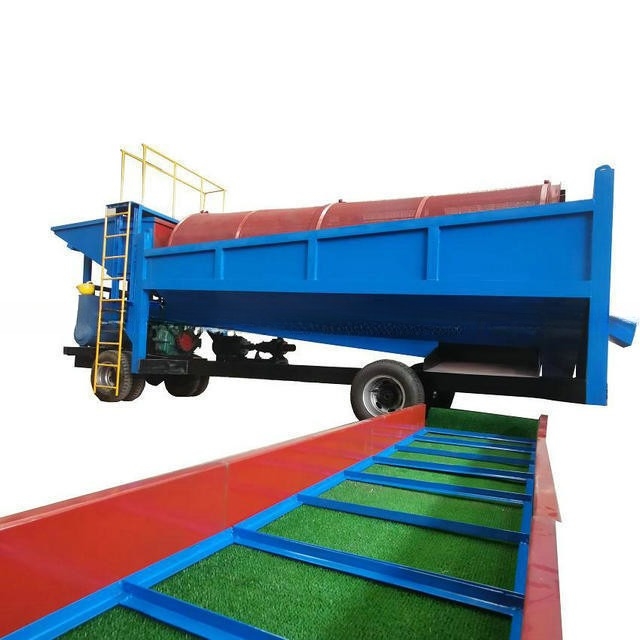

Product show

Case

Packing & Delivery

Wooden box packing or Container shipping.
