Gold Separation Mining Equipment Mobile Trommel Gold Washing Plant with Double Screen
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion |
| Certification: | CE ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $17,900.00/sets 1-1 sets |
| Packaging Details: | All products will be processed to be rustproof and moisture proof before delivery. <br>20GP container or 40GP container <br>Equipment is packed with plastic wrap or steel case, depends on machine weight. <br>Motor is packed with steel case or wooden case. |
| Supply Ability: | 50 Set/Sets per Month gold trommel screening plant |
|
Detail Information |
|||
| Applicable Industries: | Manufacturing Plant, Construction Works , Energy & Mining | Showroom Location: | Canada, United States |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator |
| Production Capacity: | 100-200T/H | Voltage: | 220V/380V/415V/480V |
| Dimension(L*W*H): | 8000*2200*4000 | Weight: | 6800 KG |
| Warranty: | 1 Year | Marketing Type: | Ordinary Product, Hot Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided, Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Engine, Gearbox |
| Key Selling Points: | PORTABLE, Obvious Gold-selected Effect | Machinery Test: | Provided |
| Sieve: | Manganese Wire | Double Screen: | Multiple Material Output |
| Port: | Qingdao, Tianjin, Lianyungang, Shanghai Guangzhou( As Client Request) | ||
Product Description
Product Description
Our equipment is called gold mobile trommel screen, which is used to collect gold from placer gold and alluvial gold. Its
advantages are flexible movement, simple operation, high efficiency, and obvious gold selection effect.
advantages are flexible movement, simple operation, high efficiency, and obvious gold selection effect.

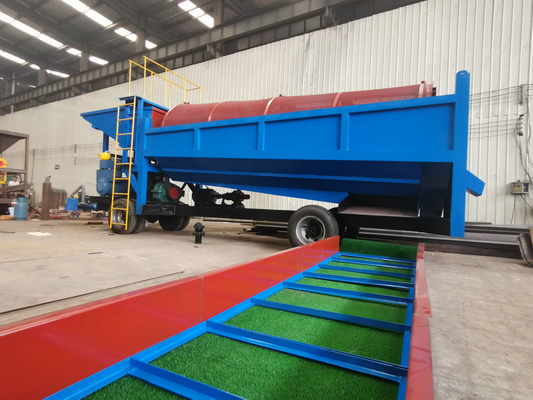

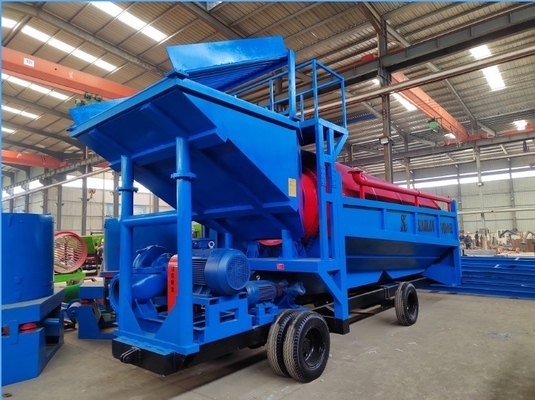

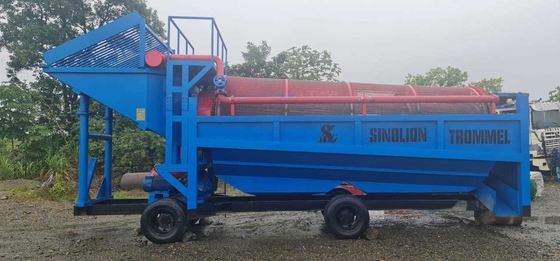

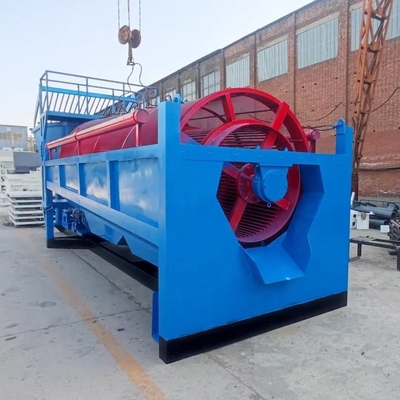

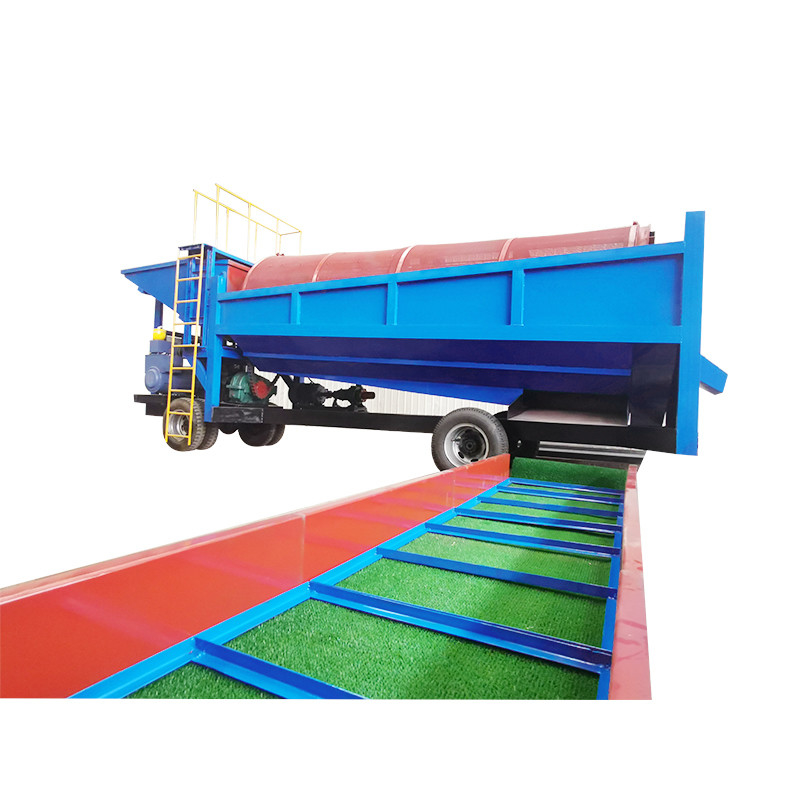

Mobile 100 tons per hour gold washing plant is composed of feeding hopper, screen drum, gold chute, wheels. It overcomes the problem of screen blocking of various vibrating screens when screening wet materials. Increased production and reliability of the screening system. The maximum product under the sieve is 100mm, the middle is 10-50mm, and the finest is up to 3mm. The product is well received by the vast majority of customers at home and abroad.
The mobile gold washing plant is a kind of gold equipment which can be moved on land. It has the characteristics of compact structure, strong integrity, light weight, large handling capacity, simple operation, reliable operation, easy maintenance and convenient operation.We has been exported to Sudan, Africa, North Korea, Tanzania, Ghana etc.
Working principle
1. Raw material feeding
The raw material input through the hopper inlet is pushed into the screen drum by the powerful
water pressure of the nozzle loaded in the hopper.
2. Washing

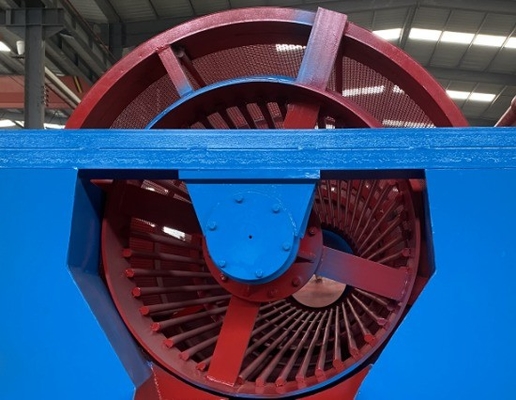

The screen barrel has a built-in galvanized seamless water spray pipe (diameter 42mm), and the raw materials are washed by water and selected through the gold panning tank through the rotation of the trommel screen.
3. Fine gold collection
Light dirt and sand are washed away by the water, and heavier gold will gather in the gold panning grass.
Technical Parameters
Model | Capacity (t/h) | Power (kw) | Diameter (mm) | Length(mm) | Discharge(mm) | Input(mm) | Dimension (mm) |
GMTS0519 | 5—10 | 1.5 | 500 | 1910 | ≤300 | 0—100 | 3000*1000*1800 |
GMTS1020 | 10—30 | 4 | 1000 | 2000 | ≤300 | 0—100 | 3200*1400*1900 |
GMTS1225 | 30—50 | 5.5 | 1200 | 2500 | ≤300 | 0—100 | 4300*1650*2220 |
GMTS1548 | 80—150 | 11 | 1500 | 4800 | ≤300 | 0—100 | 8000*2200*3600 |
GMTS1848 | 100—200 | 15 | 1800 | 4800 | ≤300 | 0—100 | 8000*2200*4000 |
Case
Packing & Delivery
Wooden box packing or Container shipping.
