Product Details:

Place of Origin: Henan, China
Brand Name: Sinolion

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $14,500.00/sets 1-1 sets
Packaging Details: All products will be processed to be rustproof and moisture proof before delivery. <br>20GP container or 40GP container <br>Equipment is packed with plastic wrap or steel case, depends on machine weight. <br>Motor is packed with steel case or wooden case.
Supply Ability: 50 Set/Sets per Month gold trommel screening plant
Get Best Price Contact Now

Detail Information
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works , Energy & Mining Showroom Location: Canada, United States, Australia
Condition: New Type: Gravity Separator
Production Capacity: 90% Voltage: 220V/380V/415V/480V
Dimension(L*W*H): 3200*1400*1900 Weight: 6500 KG
Warranty: 1 Year Marketing Type: Hot Product 2023
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: Bearing, Motor, Engine, Gearbox
Key Selling Points: High-accuracy, High Separation Efficiency Installation: Supply Manual To Guide User
Customizable: Logo / Packing / Graphic Double Screen: Multiple Material Output
Color: Yellow, White, Red, Blue, Gray( Or As Client Request) Advantege: Obvious Gold-selected Effect
Port: Qingdao, Tianjin, Lianyungang, Shanghai Guangzhou( As Client Request)

Product Description

Product Description
The sieve-type gold washing equipment is mainly used for sand splitting and gold selection. It's called a mobile gold equipment , also known as mobile gold car.

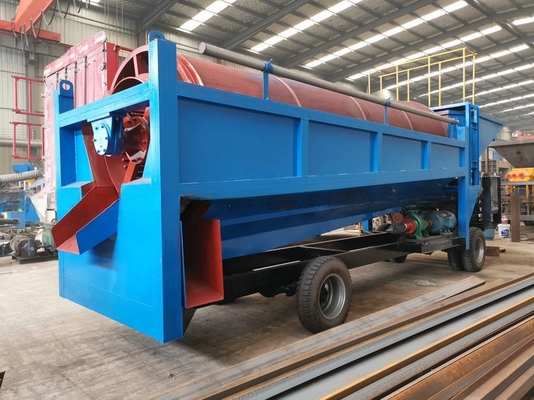

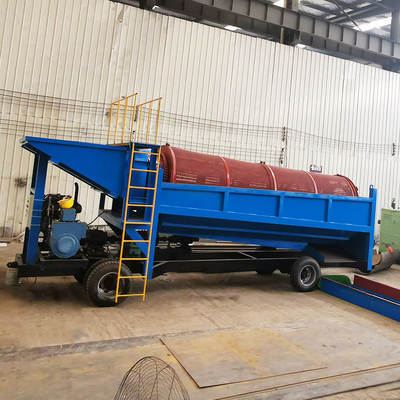

The mobile trommel gold washing plant is designed for alluvial/placer gold ore processing, it's consist a half covered trommel screen, one diesel engine/ electric motor, water pump& water pipes, and other facilities such as the feeding hoper and the mobile system.

This equipment consumes less water, has high concentration capacity, and is equipped with a large lock box. It can be cleaned up during batch testing or after a day of work, and can provide you with a recovery rate of about 98%. The recovery fineness can reach 10mm. Using continuous processing, the advanced reverse spiral system helps you increase gold recovery and reduce operator capacity.
Alluvial Gold Mobile Trommel Gold Wash Plant Trommel Screen for Mine Gold Separation 0
Alluvial Gold Mobile Trommel Gold Wash Plant Trommel Screen for Mine Gold Separation 1
Alluvial Gold Mobile Trommel Gold Wash Plant Trommel Screen for Mine Gold Separation 2
Alluvial Gold Mobile Trommel Gold Wash Plant Trommel Screen for Mine Gold Separation 3
Double Screen
The drum part is made of round steel and
manganese wire, and the outer screen is made of manganese wire.which is strong and durable. the screen can be designed with two
different sizes of apertures,the maximum product under the screen is 100mm, the middle is 10-50mm, and the thinnest can be up to 3mm . The design of the double-layer screen improves the screening efficiency on the one hand. and can screen materials of three specifications ,on the other hand, it protects and improves the service life of the screen.
Alluvial Gold Mobile Trommel Gold Wash Plant Trommel Screen for Mine Gold Separation 4
Alluvial Gold Mobile Trommel Gold Wash Plant Trommel Screen for Mine Gold Separation 5
Alluvial Gold Mobile Trommel Gold Wash Plant Trommel Screen for Mine Gold Separation 6

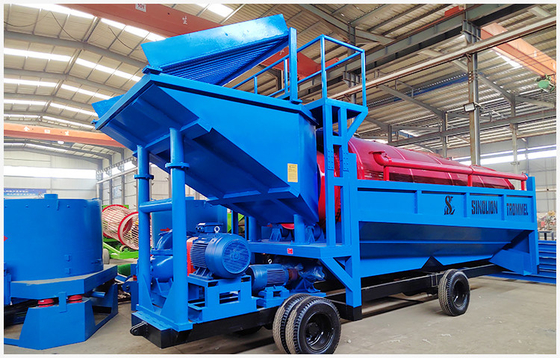

Gold mobile trommel screen is composed of feed hopper, drum, motor, water pump, reducer, wheel roller, transmission device (optional parts: gasoline engine and belt conveyor). It is mainly used in the processing and collection of alluvial gold and placer gold. Its advantages include flexible movement, small size and high screening efficiency.
Technical Parameters
Model
Capacity (t/h)
Power (kw)
Diameter (mm)
Length(mm)
Discharge(mm)
Input(mm)
Dimension (mm)
GMTS0519
5—10
1.5
500
1910
≤300
0—100
3000*1000*1800
GMTS1020
10—30
4
1000
2000
≤300
0—100
3200*1400*1900
GMTS1225
30—50
5.5
1200
2500
≤300
0—100
4300*1650*2220
GMTS1548
80—150
11
1500
4800
≤300
0—100
8000*2200*3600
GMTS1848
100—200
15
1800
4800
≤300
0—100
8000*2200*4000

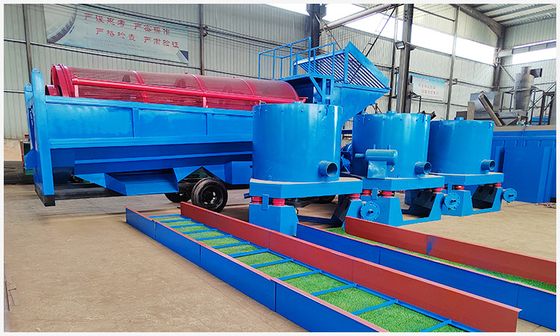

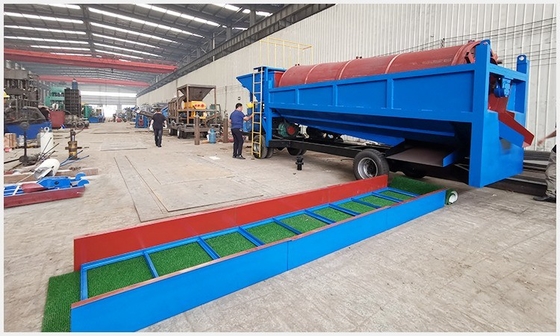

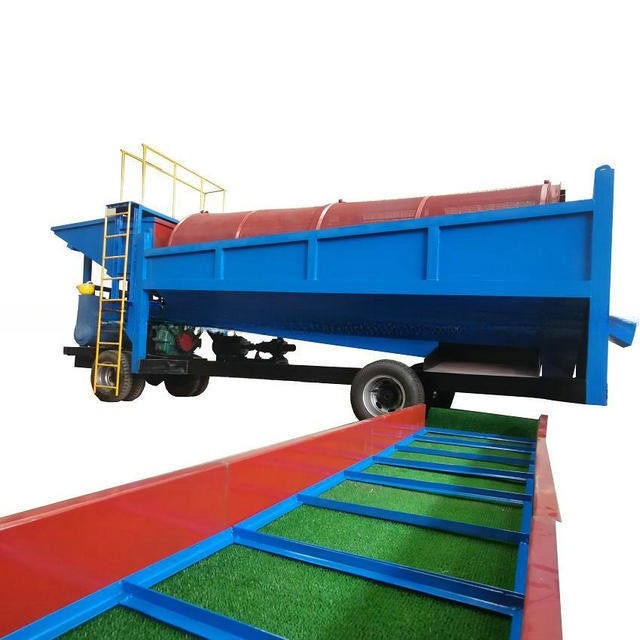

Gold washing plant
Alluvial Gold Mobile Trommel Gold Wash Plant Trommel Screen for Mine Gold Separation 7
Alluvial Gold Mobile Trommel Gold Wash Plant Trommel Screen for Mine Gold Separation 8
Case
Alluvial Gold Mobile Trommel Gold Wash Plant Trommel Screen for Mine Gold Separation 9
Alluvial Gold Mobile Trommel Gold Wash Plant Trommel Screen for Mine Gold Separation 10
Alluvial Gold Mobile Trommel Gold Wash Plant Trommel Screen for Mine Gold Separation 11
Packing & Delivery
Alluvial Gold Mobile Trommel Gold Wash Plant Trommel Screen for Mine Gold Separation 12
Alluvial Gold Mobile Trommel Gold Wash Plant Trommel Screen for Mine Gold Separation 13
Wooden box packing or Container shipping.
