Product Details:

Place of Origin: Henan, China
Brand Name: Sinolion

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $14,500.00/sets 1-1 sets
Packaging Details: All products will be processed to be rustproof and moisture proof before delivery. <br>20GP container or 40GP container <br>Equipment is packed with plastic wrap or steel case, depends on machine weight. <br>Motor is packed with steel case or wooden case.
Supply Ability: 50 Set/Sets per Month gold trommel screening plant
Get Best Price Contact Now

Detail Information
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works , Energy & Mining Showroom Location: Canada, United States, Australia
Condition: New Type: Gravity Separator
Production Capacity: 98% Voltage: 220V/380V/415V/480V
Dimension(L*W*H): 3200*1400*1900 Weight: 6500 KG
Warranty: 1 Year Marketing Type: Ordinary Product
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: Bearing, Motor, Engine, Gearbox
Key Selling Points: High Rigidity, High Separation Efficiency Installation: Supply Manual To Guide User
Customizable: Logo / Packing / Graphic Double Screen: Multiple Material Output
Color: Yellow, White, Red, Blue, Gray( Or As Client Request) Dimension: As Per Different Model
Port: Qingdao, Tianjin, Lianyungang, Shanghai Guangzhou( As Client Request)

Product Description

Product Description

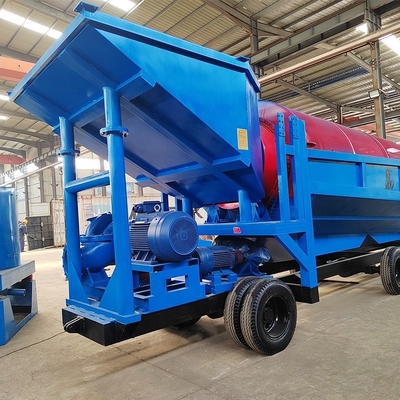

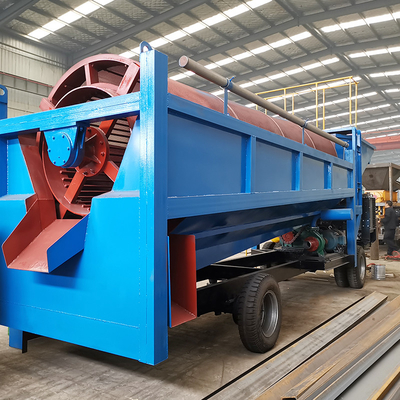

The sieve-type gold washing equipment is mainly used for sand splitting and gold selection. It's called a mobile gold equipment , also known as mobile gold car. It's consist a half covered trommel screen, one diesel engine or electric motor, water pump & water pipes, and with reducer, chain, leg and tire , roller so on , also has the feeding hoper and the mobile system.
This equipment consumes less water, has high concentration capacity, and is equipped with a large sluice box. It can be cleaned up during batch testing or after a day of work, and can provide you with a recovery rate of about 90%. The recovery fineness can reach 10mm. Using continuous processing, the advanced reverse spiral system helps you increase gold recovery and reduce operator capacity.
Blue Big Capacity Mobile Gold Separation Mining Equipment Gold Washing Plant 0
Blue Big Capacity Mobile Gold Separation Mining Equipment Gold Washing Plant 1
Blue Big Capacity Mobile Gold Separation Mining Equipment Gold Washing Plant 2
Double Screen
The drum part is made of round steel and
manganese wire, and has three discharge ports, which can screen materials of three different specifications;
In addition, the screen can be designed with two different sizes of apertures, which greatly improves the screening efficiency of
materials and reduces working time. The maximum product under the screen is 100mm, the middle is 10-50mm, and the thinnest can be up to 3mm.
Blue Big Capacity Mobile Gold Separation Mining Equipment Gold Washing Plant 3
Blue Big Capacity Mobile Gold Separation Mining Equipment Gold Washing Plant 4
Blue Big Capacity Mobile Gold Separation Mining Equipment Gold Washing Plant 5
Blue Big Capacity Mobile Gold Separation Mining Equipment Gold Washing Plant 6

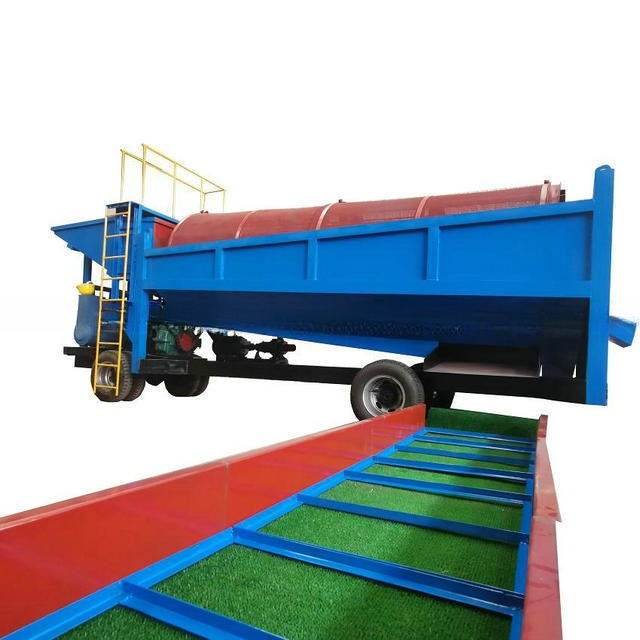

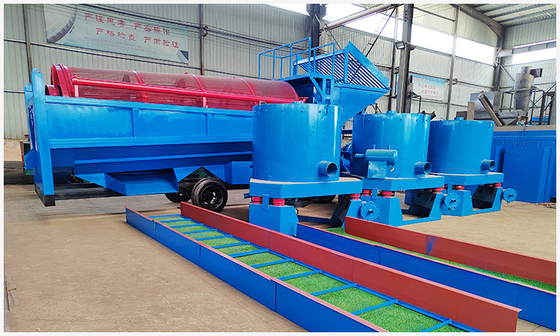

Gold mobile trommel screen is composed of feed hopper, drum, motor, water pump, reducer, wheel roller, transmission device (optional parts: gasoline engine and belt conveyor). It is mainly used in the processing and collection of alluvial gold and placer gold. Its advantages include flexible movement, small size and high screening efficiency.

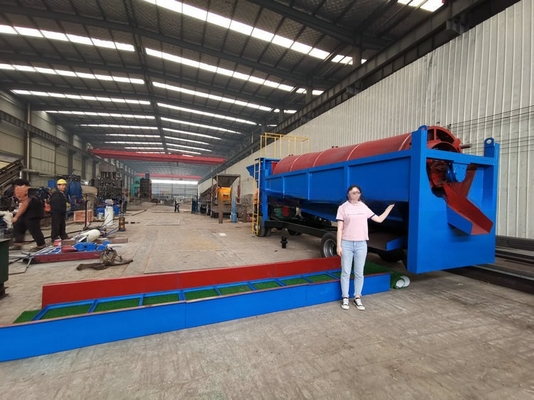

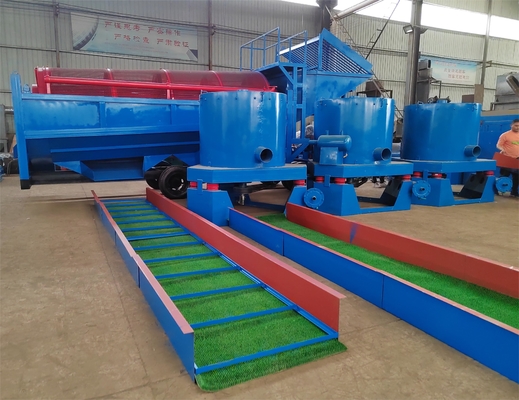

Product show
Blue Big Capacity Mobile Gold Separation Mining Equipment Gold Washing Plant 7
Technical Parameters
Model
Capacity (t/h)
Power (kw)
Diameter (mm)
Length(mm)
Discharge(mm)
Input(mm)
Dimension (mm)
GMTS0519
5—10
1.5
500
1910
≤300
0—100
3000*1000*1800
GMTS1020
10—30
4
1000
2000
≤300
0—100
3200*1400*1900
GMTS1225
30—50
5.5
1200
2500
≤300
0—100
4300*1650*2220
GMTS1548
80—150
11
1500
4800
≤300
0—100
8000*2200*3600
GMTS1848
100—200
15
1800
4800
≤300
0—100
8000*2200*4000
Related Products
Blue Big Capacity Mobile Gold Separation Mining Equipment Gold Washing Plant 8
Blue Big Capacity Mobile Gold Separation Mining Equipment Gold Washing Plant 9
Packing & Delivery
Blue Big Capacity Mobile Gold Separation Mining Equipment Gold Washing Plant 10
Blue Big Capacity Mobile Gold Separation Mining Equipment Gold Washing Plant 11
Ways Of Packing :
1.Small parts packed in the wooden cases
2.Big parts or the whole big machine is loaded in the container by the Ocean Shipping or others .
