Obvious Gold-Selected Effect 30 Tons Sand Gold Separator Trommel Machinery Washing Line
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sionlion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $5,310.00/sets 1-1 sets |
| Packaging Details: | All products will be processed to be rustproof and moisture proof before delivery. <br>20GP container or 40GP container <br>Equipment is packed with plastic wrap or steel case, depends on machine weight. <br>Motor is packed with steel case or wooden case. |
| Supply Ability: | 50 Set/Sets per Month gold trommel screening plant |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Farms, Retail, Construction Works , Energy & Mining | Showroom Location: | United States, Australia |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator |
| Production Capacity: | 5-200 | Voltage: | 220V/380V/415V/480V |
| Dimension(L*W*H): | 3000x800x1640 | Weight: | 600 KG |
| Warranty: | 1 Year | Marketing Type: | Ordinary Product, Hot Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Engine, Gearbox |
| Key Selling Points: | Long Service Life, Obvious Gold-selected Effect | Feeding Size: | Less Than 300mm |
| Advantege: | Obvious Gold-selected Effect | Installation: | Supply Manual To Guide User |
| Customizable: | Logo / Packing / Graphic | Port: | Qingdao, Tianjin, Lianyungang, Shanghai Guangzhou( As Client Request) |
Product Description
Product Description

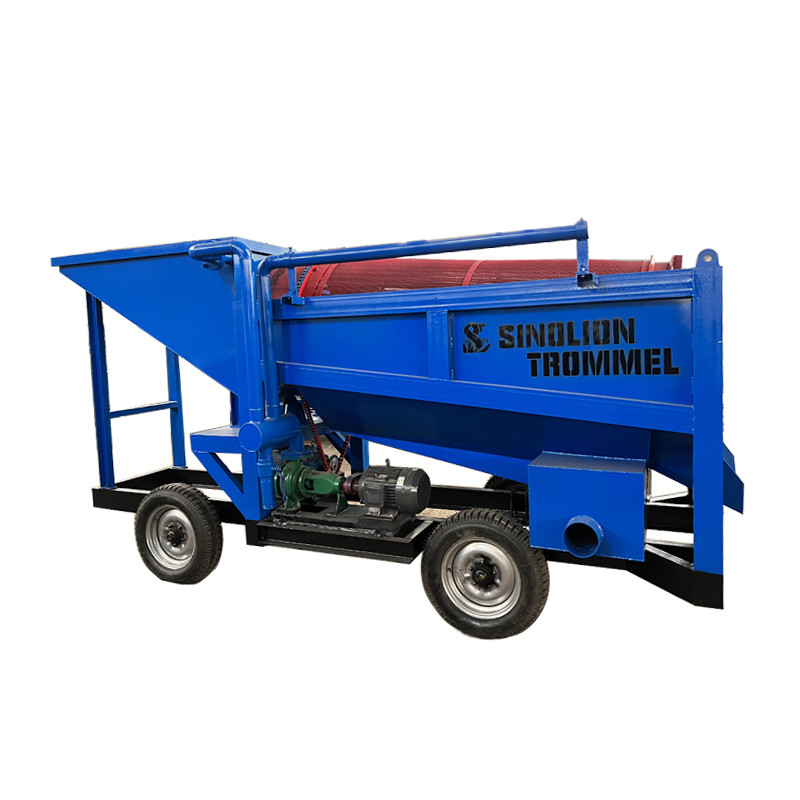

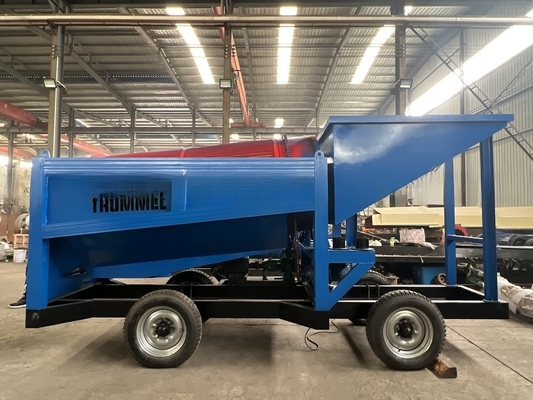

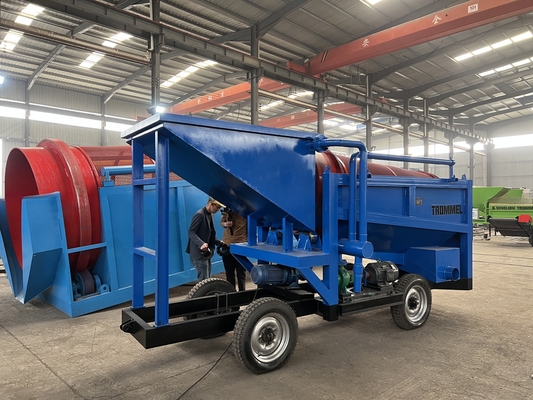

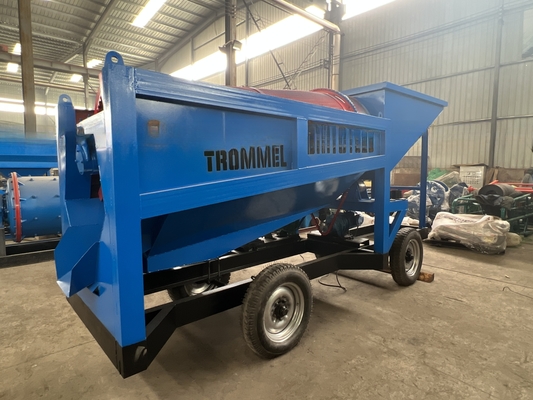

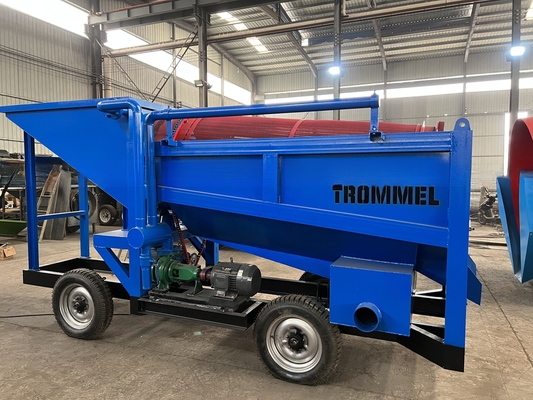

Our production is called a mobile gold trommel screen , also known as mobile gold car. The sieve-type gold mobile washing equipment is mainly used for sand splitting and gold selection. It is suitable for energy and mining, building materials store, manufacturing plant, construction engineering, energy and mining.
Our trommel screen has a lot of advantages ,such as: move conveniently ,well-adapted，Integrated design, operate simply, labor-saving,strongly-processing capacity, work efficiently, obvious gold-selected effect and so on
Working Principle
1. Raw material feeding The raw material input through the hopper inlet is pushed into the screen drum by the powerful water pressure of the nozzle loaded in the hopper. 2. Washing The screen barrel has a built-in galvanized seamless water spray pipe (diameter 42mm), and the raw materials are washed by water and selected through the gold panning tank through the rotation of the trommel screen. 3. Fine gold collection Light dirt and sand are washed away by the water, and heavier gold will gather in the gold blanket.

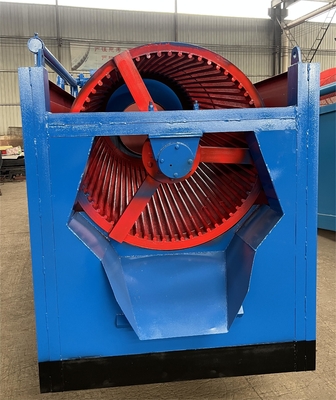

Screen Drum
The drum part is made of round steel and manganese wire mesh. The outermost layer of the screen drum is manganese wire mesh, and the inner layer is round steel with a diameter of 20mm and an interval of 50mm. The design of the double-layer screen on the one hand protects the material from damage caused by impact on the screen, thus extending the service life of the screen, and on the other hand improves the screening efficiency.
Technical Parameters
Model | Capacity (t/h) | Power (kw) | Diameter (mm) | Length(mm) | Discharge(mm) | Input(mm) | Dimension (mm) |
GMTS0519 | 5—10 | 1.5 | 500 | 1910 | ≤300 | 0—100 | 3000*1000*1800 |
GMTS1020 | 10—30 | 4 | 1000 | 2000 | ≤300 | 0—100 | 3200*1400*1900 |
GMTS1225 | 30—50 | 5.5 | 1200 | 2500 | ≤300 | 0—100 | 4300*1650*2220 |
GMTS1548 | 80—150 | 11 | 1500 | 4800 | ≤300 | 0—100 | 8000*2200*3600 |
GMTS1848 | 100—200 | 15 | 1800 | 4800 | ≤300 | 0—100 | 8000*2200*4000 |
More models
Packing & Delivery
Ways Of Packing 1. Small parts packed in the wooden cases 2.Big parts or the whole big machine is loaded in the container by the Ocean Shipping or others .
