Double Screen Middle Capacity 50 Tons Mining Trommel Machine for Alluvial Gold Separation
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $7,750.00/sets 1-2 sets |
| Packaging Details: | All products will be processed to be rustproof and moisture proof before delivery. <br>20GP container or 40GP container <br>Equipment is packed with plastic wrap or steel case, depends on machine weight. <br>Motor is packed with steel case or wooden case. |
| Supply Ability: | 50 Set/Sets per Month gold trommel screening plant |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Construction Works , Energy & Mining, Other | Showroom Location: | United States, Australia |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator |
| Production Capacity: | 90% | Voltage: | 220V/380V/415V/480V |
| Dimension(L*W*H): | 3200*1400*1900 | Weight: | 1200 KG |
| Warranty: | 1 Year | Marketing Type: | Ordinary Product, Hot Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Engine, Gearbox |
| Key Selling Points: | High Rigidity | Installation: | Supply Manual To Guide User |
| Advantege: | Obvious Gold-selected Effect | Double Screen: | Multiple Material Output |
| Customizable: | Logo / Packing / Graphic | Feeding Size: | Less Than 300mm |
| Port: | Qingdao, Tianjin, Lianyungang, Shanghai Guangzhou( As Client Request) | ||
Product Description
Product Description
Mobile gold mining equipment as a mining, recovery of sand gold heavy metal machine is currently used in the global scope of sand gold mining areas. They come in many sizes, but they are all designed and made with the aim of recycling gold.

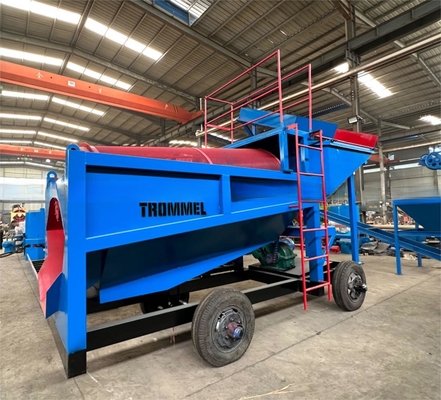

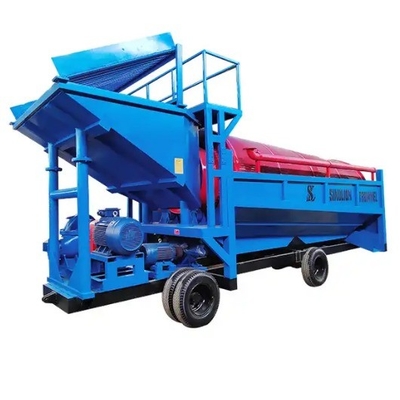

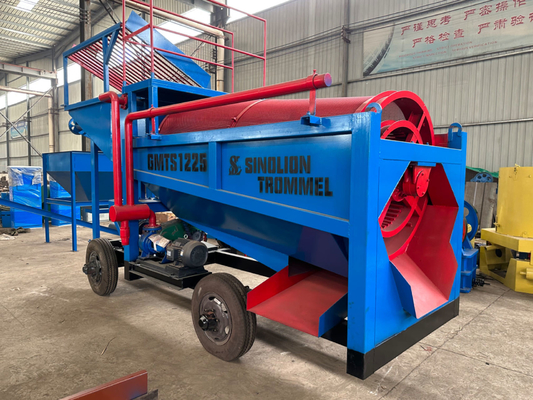

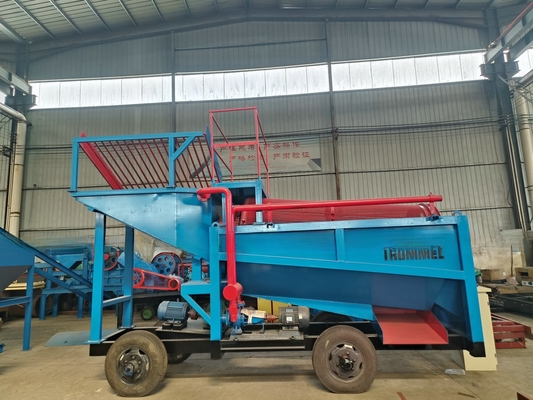

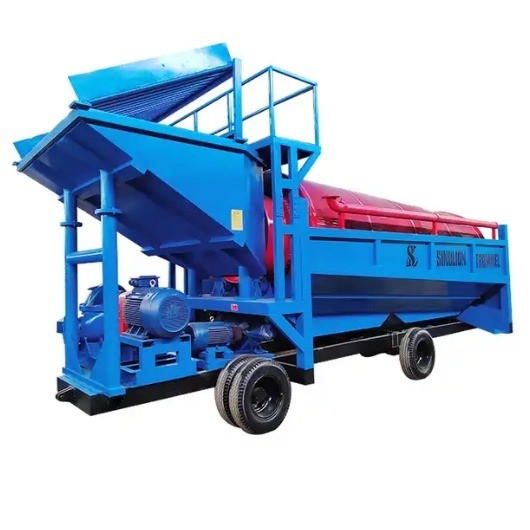

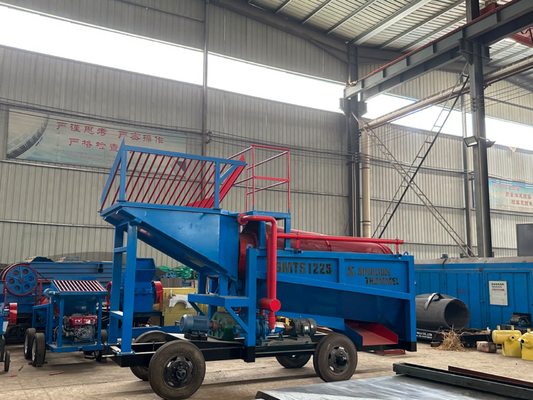

Gold mobile trommel screen is composed of feed hopper, drum, motor, water pump, reducer, wheel roller, transmission device (optional parts: gasoline engine and belt conveyor). It is mainly used in the processing and collection of alluvial gold and placer gold. Its advantages include flexible movement, small size and high screening efficiency.
Sluice box
Gold sluice box is lined with a professional sticky gold blanket made of polyethylene non-woven bottom, which has strong catching ability, high recovery rate, and is also effective for fine-grained gold. And it has the advantages of favorable price, simple structure and easy operation.
Double Screen

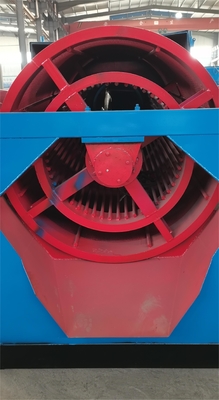

The drum part is made of round steel and manganese wire, and the outer screen is made of manganese wire.which is strong and durable. the screen can be designed with two different sizes of apertures,the maximum product under the screen is 100mm, the middle is 10-50mm, and the thinnest can be up to 3mm . The design of the double-layer screen improves the screening efficiency on the one hand. and can screen materials of three specifications ,on the other hand. it protects and improves the service life of the screen.
Trommel screen
The drum part is made of round steel and manganese wire, and also has three outlets.it improves the screening efficiency of materials, the maximum product under the sieve is 100mm.the middle is 10-50 mm, the thinnest can reach 3 mm.
Technical Parameters
Model | Capacity (t/h) | Power (kw) | Diameter (mm) | Length(mm) | Discharge(mm) | Input(mm) | Dimension (mm) |
GMTS0519 | 5—10 | 1.5 | 500 | 1910 | ≤300 | 0—100 | 3000*1000*1800 |
GMTS1020 | 10—30 | 4 | 1000 | 2000 | ≤300 | 0—100 | 3200*1400*1900 |
GMTS1225 | 30—50 | 5.5 | 1200 | 2500 | ≤300 | 0—100 | 4300*1650*2220 |
GMTS1548 | 80—150 | 11 | 1500 | 4800 | ≤300 | 0—100 | 8000*2200*3600 |
GMTS1848 | 100—200 | 15 | 1800 | 4800 | ≤300 | 0—100 | 8000*2200*4000 |
Case
Packing & Delivery
Ways Of Packing 1. Small parts packed in the wooden cases 2.Big parts or the whole big machine is loaded in the container by the Ocean Shipping or others.
