Big Capacity Mineral Separation Equipment Gold Planning Trommel Screen 8460*2300*2500MM
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | ZHENGZHOU SINOLION |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $14,500.00/sets |
| Packaging Details: | All products will be processed to be rustproof and moisture proof before delivery. <br>20GP container or 40GP container <br>Equipment is packed with plastic wrap or steel case, depends on machine weight. <br>Motor is packed with steel case or wooden case. |
| Supply Ability: | 50 Set/Sets per Month |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Home Use, Construction Works , Energy & Mining | Showroom Location: | Egypt, United Kingdom, United States, France, Germany |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator |
| Production Capacity: | 80-150t/h | Voltage: | 380V/415V/440V |
| Dimension(L*W*H): | 8460*2300*2500MM | Weight: | 3000 KG |
| Warranty: | 1 Year | Marketing Type: | New Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Engine, Gearbox |
| Key Selling Points: | Sustainable | Application: | Mining Separation |
| Keywords: | Centrifugal Gold Concentrtor | Product Name: | Gold Mining Machine |
| After-sales Service Provided: | Service Machinery Overseas | Usage: | Mining Concentration |
| Name: | Gold Ore Processing Equipment | Installation: | Under Guidance |
| Color: | As Your Request | Material: | Steel |
| After Sale Service: | One Year | Port: | Qingdao, Tianjin, Lianyungang, Shanghai Guangzhou( As Client Request) |
Product Description

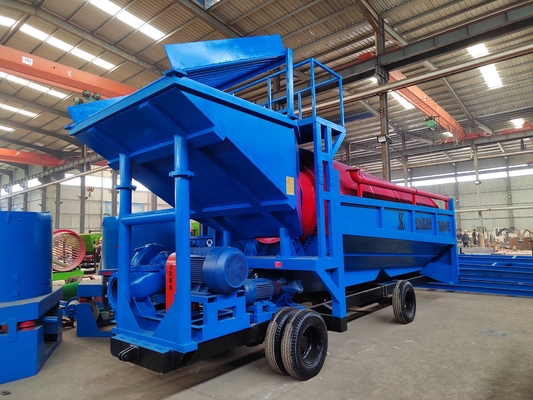

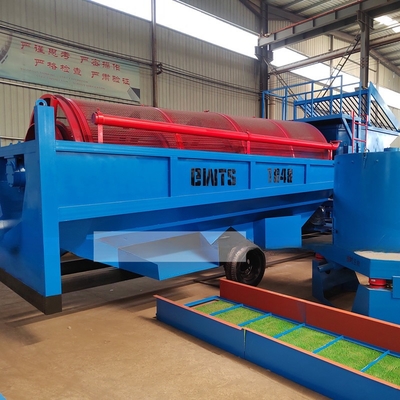

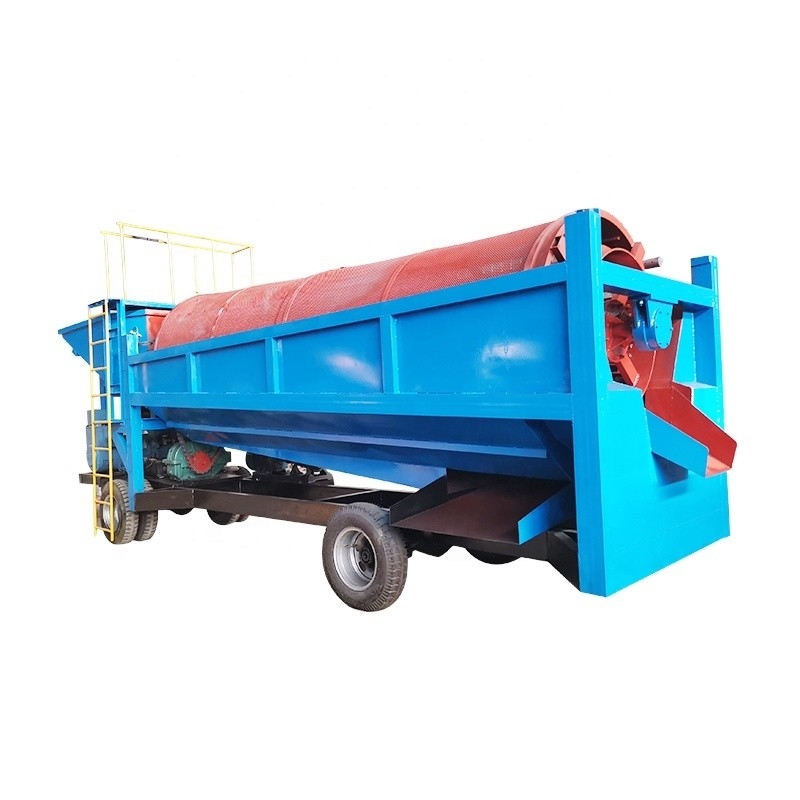

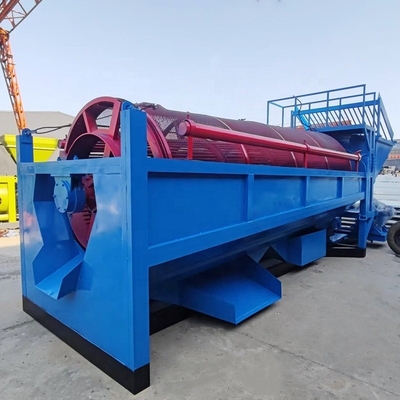

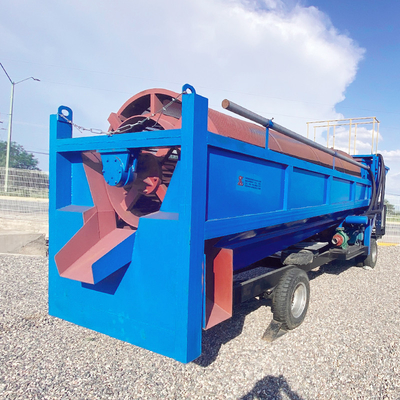

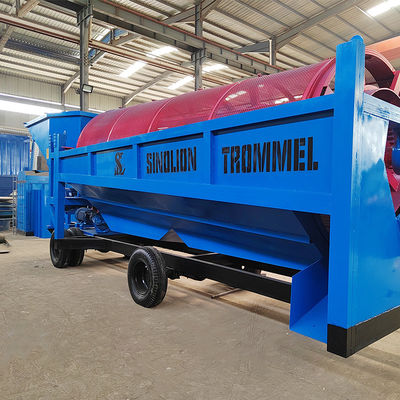

Mobile Stationary Sand Trommel Screen For River Gold Mining Equipment
Mobile Gold Mining Equipment Is Represented By Trommel Screen, Which Is Also Widely Used In Separation Technology. Its Working Principle Is To Control The Size Of Particle Size To Control The Separation Of Waste, Thus Improving The Separation Efficiency. The Advantages Of Small Trommel Screen Are Obvious, And It Is More Flexible And Convenient Than Large-scale Mobile Screen In Terms Of Movement. Trommel Screen Internal Equipment, The Main Roller Screen Shall Have Motor, Reducer, Roller Device, Frame, Seal Cover, Inlet And Outlet Composition. The Roller Device Is Tilted On The Rack And Passed Through The Drum Device. The Axles Are Connected Together To Drive The Drum Device To Rotate Around Its Axis.
Structure and Principle
The Alluvial Gold Trommel Screen Machine Uses The Principle Of Gravity Separation, The Original Ore Through A Layer Of Screening And Classification Under The Impact Of Water Into The Agitation Sluice Chute For Next Step Coarse Separation, If There Is Capillary Gold In The Original Mine, Adding The Agitation Chute Fixed Chute In The Tail To Avoid Tails Running. If There Is Clay Mud In Original Ore, We Will Add Stirring In Front Of The Screen And Flushing Device In Screen Drum, So That The Unfavorable Factors Caused By High Mud Content Can Be Solved Well, And Can Be Adjusted According To Ore Body Condition And Site.
1. Input Of Raw Materials Raw Materials Inputted Through The Entrance Of The Hopper Will Be Pushed Into The Trommel Screen By The
Strong Water Pressure Of The Shower Equipped In The Hopper. 2. Selection And Cleaning Of Raw Materials Raw Materials Of The
Trommel Screen Will Be Cleaned And Selected By The Rotation Of Trommel Screen And By Watering Of The Shower Inside, Run Into The
Gold Dust Separate Panel. 3. Collecting Of Gold Dust Separated Soil And Sands With Lighter Specific Gravity Will Flow Away But
Gold Dusts With Greater Specific Gravity Will Be Staying In The Gathering Mat To Be Collected.
Strong Water Pressure Of The Shower Equipped In The Hopper. 2. Selection And Cleaning Of Raw Materials Raw Materials Of The
Trommel Screen Will Be Cleaned And Selected By The Rotation Of Trommel Screen And By Watering Of The Shower Inside, Run Into The
Gold Dust Separate Panel. 3. Collecting Of Gold Dust Separated Soil And Sands With Lighter Specific Gravity Will Flow Away But
Gold Dusts With Greater Specific Gravity Will Be Staying In The Gathering Mat To Be Collected.
Product Name | Gold Trommel Screen | ||||||||
Model | GMTS0519 | GMTS1020 | GMTS1225 | GMTS1548 | GMTS1848 | ||||
Capacity (t/h) | 5-10 | 10-30 | 30-50 | 80-150 | 100-200 | ||||
Power(kw) | 1.5 | 4 | 5.5 | 11 | 15 | ||||
Diameter(mm) | 500 | 1000 | 1200 | 1500 | 1800 | ||||
Length(mm) | 1910 | 2000 | 2500 | 4800 | 4800 | ||||
Through the working principle of the trommel screen, it can be concluded that the sieve holes of the trommel screen have the function of preventing clogging. Its structure is simple and reliable, runs smoothly, and has good sealing performance, which not only reduces the probability of dust entering the inside of the equipment, but also greatly reduces noise pollution. It has fine classification, large sorting ratio, high output, and convenient screen replacement. In addition to the first time, it is also very convenient in terms of fault repair, especially the cage drum screen, which requires little maintenance.
Sincerely welcome to send your inquiry, you can get best quotation and professional service!
