Small Capacity 20 Tons Gold Sand Separation Alluvial Gold Mining Trommel Washing Plant
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sionlion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $5,310.00/sets 1-1 sets |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Farms, Construction Works , Energy & Mining | Showroom Location: | Canada, United States, Australia |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator |
| Production Capacity: | 10-30T/H | Voltage: | 220V/380V |
| Dimension(L*W*H): | 3200*1400*1900 | Weight: | 1200 KG |
| Warranty: | 1 Year | Marketing Type: | Ordinary Product, Hot Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Engine, Gearbox |
| Key Selling Points: | High Rigidity, Obvious Gold-selected Effect | Advantege: | Obvious Gold-selected Effect |
| Installation: | Supply Manual To Guide User | Customizable: | Logo / Packing / Graphic |
Product Description
Product Description

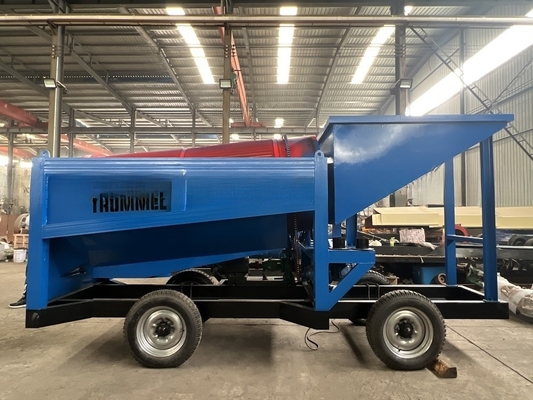

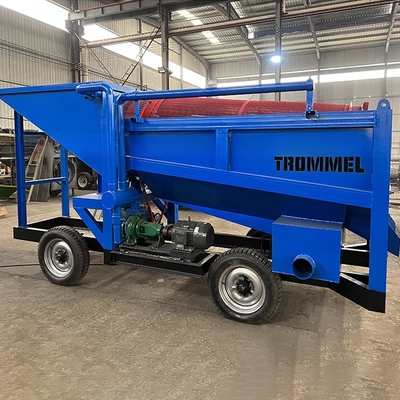

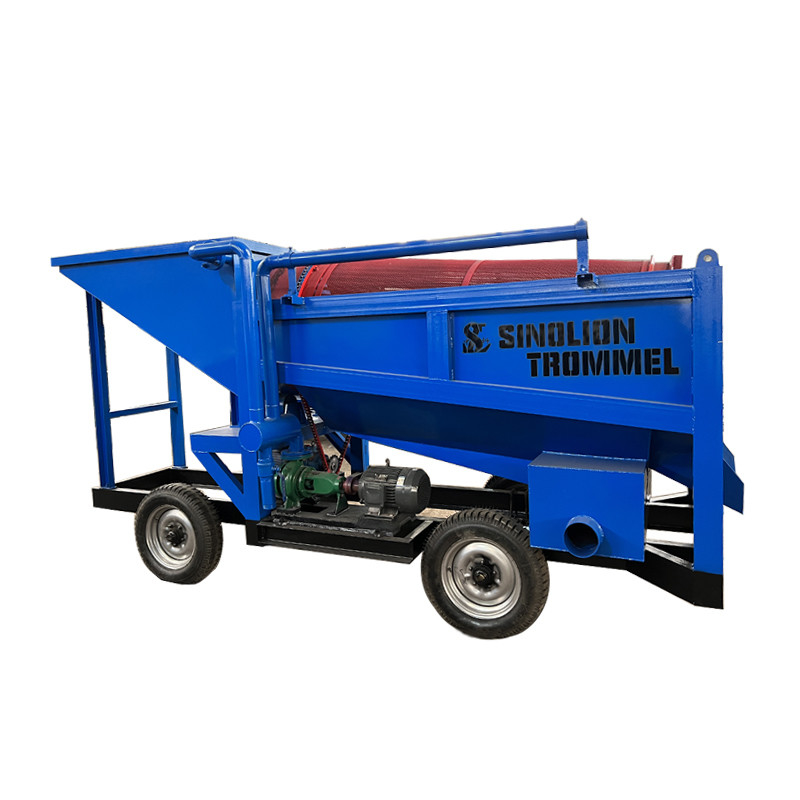

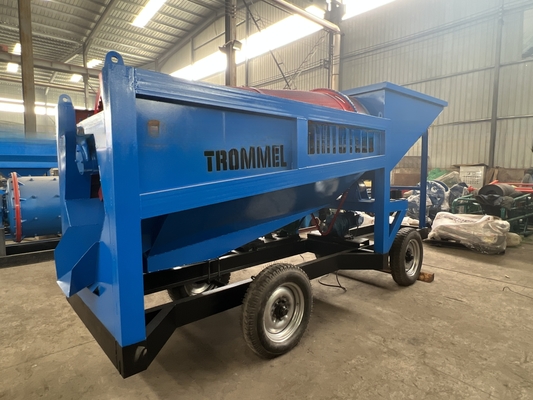

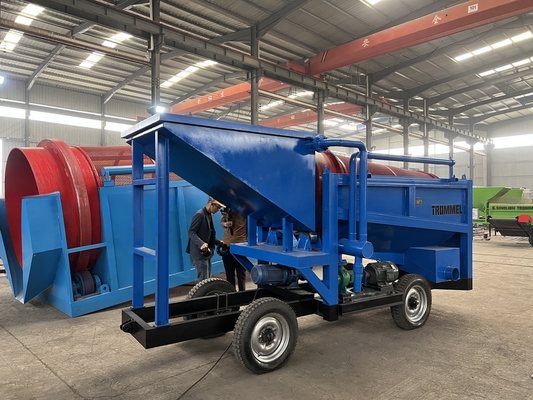

The mobile trommel gold washing plant is designed for alluvial/placer gold ore processing, it's consist a half covered trommel screen, one diesel engine or electric motor, water pump & water pipes, and with reducer, chain, leg and tire , roller so on , also has the feeding hoper and the mobile system.
Working principle
1.>Raw material feeding The raw material input through the hopper inlet is pushed into the screen drum by the powerful water pressure of the nozzle loaded in the hopper. 2> Washing The screen barrel has a built-in galvanized seamless water spray pipe (diameter 42mm), and the raw materials are washed by water and selected through the gold panning tank through the rotation of the trommel screen. 3> Fine gold collection Light dirt and sand are washed away by the water, and heavier gold will gather in the gold blanket.
Double screen

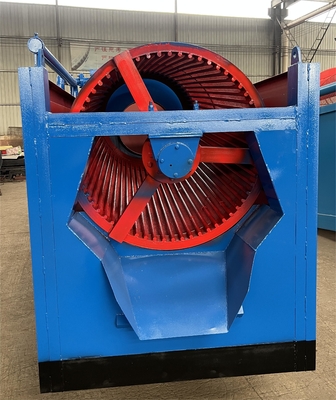

The drum part is made of round steel and manganese wire mesh. The outermost layer of the screen drum is manganese wire mesh, and the inner layer is round steel with a diameter of 20mm and an interval of 50mm. The design of the double-layer screen on the one hand protects the material from damage caused by impact on the screen, thus extending the service life of the screen, and on the other hand improves the screening efficiency.
Technical Parameters
Model | Capacity (t/h) | Power (kw) | Diameter (mm) | Length(mm) | Discharge(mm) | Input(mm) | Dimension (mm) |
GMTS0519 | 5—10 | 1.5 | 500 | 1910 | ≤300 | 0—100 | 3000*1000*1800 |
GMTS1020 | 10—30 | 4 | 1000 | 2000 | ≤300 | 0—100 | 3200*1400*1900 |
GMTS1225 | 30—50 | 5.5 | 1200 | 2500 | ≤300 | 0—100 | 4300*1650*2220 |
GMTS1548 | 80—150 | 11 | 1500 | 4800 | ≤300 | 0—100 | 8000*2200*3600 |
GMTS1848 | 100—200 | 15 | 1800 | 4800 | ≤300 | 0—100 | 8000*2200*4000 |
Packing & Delivery
Ways Of Packing 1. Small parts packed in the wooden cases 2.Big parts or the whole big machine is loaded in the container by the Ocean Shipping or others.
