50Tons Capacity Double Screen Gold Wash Trommel Machine for Multiple Material Output
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $7,750.00/sets 1-2 sets |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Construction Works , Energy & Mining, Other | Showroom Location: | Canada, United States, Australia |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator |
| Production Capacity: | 90% | Voltage: | 220V/380V/415V/480V |
| Dimension(L*W*H): | 3200*1400*1900 | Weight: | 1900 KG |
| Warranty: | 1 Year | Marketing Type: | New Product 2023, Hot Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Engine, Gearbox |
| Key Selling Points: | High Productivity | Advantege: | Obvious Gold-selected Effect |
| Installation: | Supply Manual To Guide User | Double Screen: | Multiple Material Output |
| Customizable: | Logo / Packing / Graphic | Color: | Yellow, White, Red, Blue, Gray |
Product Description
Product Description
The mobile gold washing plant is a kind of gold equipment which can be moved on land. It has the characteristics of compact structure, strong integrity, light weight, large handling capacity, simple operation, reliable operation, easy maintenance and convenient operation.We has been exported to Sudan, Africa, North Korea, Tanzania, Ghana etc.

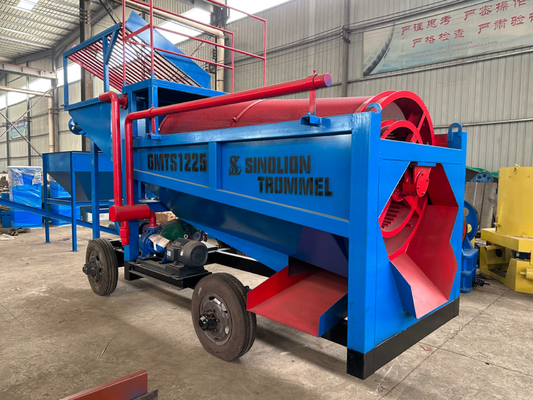

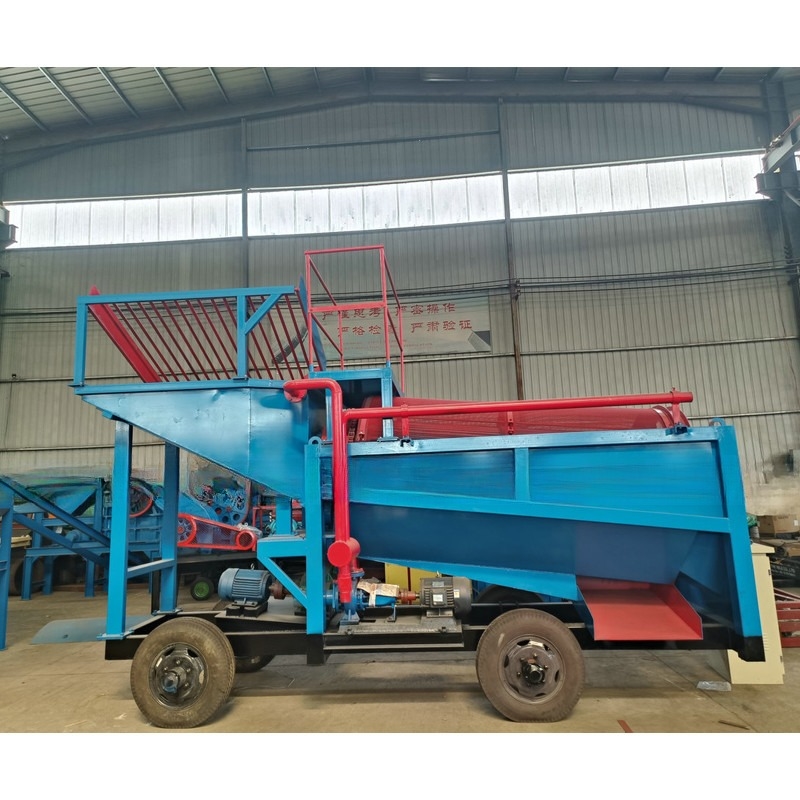

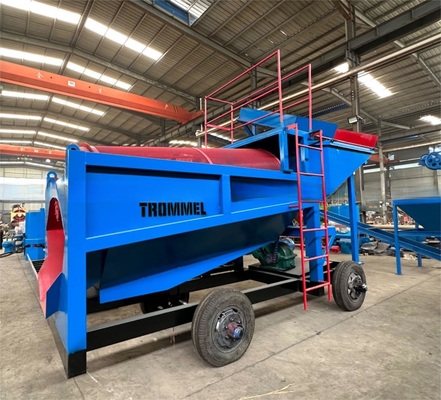

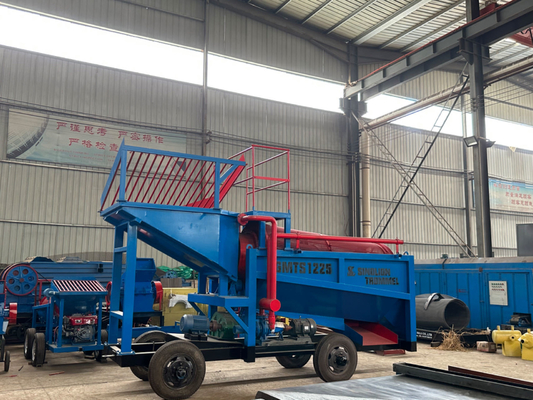

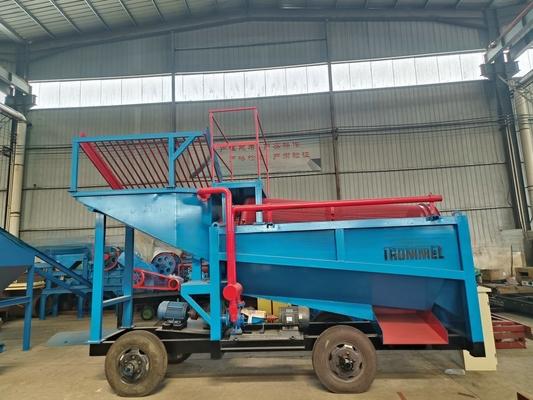

Gold mobile trommel screen is composed of feed hopper, drum, motor, water pump, reducer, wheel roller, transmission device (optional parts: gasoline engine and belt conveyor). It is mainly used in the processing and collection of alluvial gold and placer gold. Its advantages include flexible movement, small size and high screening efficiency.
Sluice box
Gold sluice box is lined with a professional sticky gold blanket made of polyethylene non-woven bottom, which has strong catching ability, high recovery rate, and is also effective for fine-grained gold. And it has the advantages of favorable price, simple structure and easy operation.

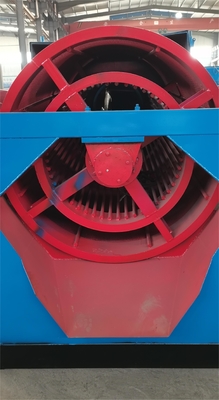

Double screen
The drum part is made of round steel and manganese wire, and the outer screen is made of manganese wire.which is strong and durable. the screen can be designed with two different sizes of apertures,the maximum product under the screen is 100mm, the middle is 10-50mm, and the thinnest can be up to 3mm . The design of the double-layer screen improves the screening efficiency on the one hand. and can screen materials of three specifications ,on the other hand. it protects and improves the service life of the screen.
Technical Parameters
Model | Capacity (t/h) | Power (kw) | Diameter (mm) | Length(mm) | Discharge(mm) | Input(mm) | Dimension (mm) |
GMTS0519 | 5—10 | 1.5 | 500 | 1910 | ≤300 | 0—100 | 3000*1000*1800 |
GMTS1020 | 10—30 | 4 | 1000 | 2000 | ≤300 | 0—100 | 3200*1400*1900 |
GMTS1225 | 30—50 | 5.5 | 1200 | 2500 | ≤300 | 0—100 | 4300*1650*2220 |
GMTS1548 | 80—150 | 11 | 1500 | 4800 | ≤300 | 0—100 | 8000*2200*3600 |
GMTS1848 | 100—200 | 15 | 1800 | 4800 | ≤300 | 0—100 | 8000*2200*4000 |
More models
Packing & Delivery
Ways Of Packing 1. Small parts packed in the wooden cases 2.Big parts or the whole big machine is loaded in the container by the Ocean Shipping or others.
Gold washing plant
