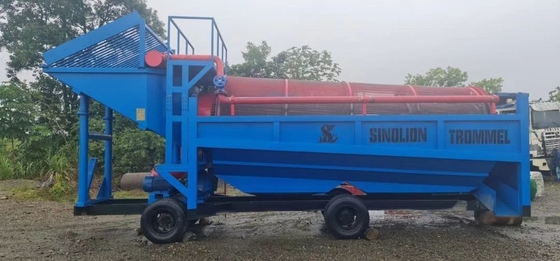

Gravity Separator Big Scale Gold Trommel Screen for Rock Gold Mining Separation Equipment

Gravity Separator Big Scale Gold Trommel Screen for Rock Gold Mining Separation Equipment

Product Details:

Place of Origin: Henan, China
Brand Name: Sinolion

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $14,500.00/sets 1-1 sets
Get Best Price Contact Now

Detail Information
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works , Energy & Mining Showroom Location: Canada, United States, Australia
Condition: New Type: Gravity Separator
Production Capacity: 98% Voltage: 220V/380V/415V/480V
Dimension(L*W*H): 3200*1400*1900 Weight: 6500 KG
Warranty: 1 Year Marketing Type: Ordinary Product
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: Bearing, Motor, Engine, Gearbox
Key Selling Points: High Productivity, High Separation Efficiency Installation: Supply Manual To Guide User
Customizable: Logo / Packing / Graphic Color: Yellow, White, Red, Blue, Gray( Or As Client Request)
Double Screen: Multiple Material Output

Product Description

Product Description
The sieve-type gold washing equipment is mainly used for sand splitting and gold selection. It's called a mobile gold equipment , also known as mobile gold car.
This equipment consumes less water, has high concentration capacity, and is equipped with a large lock box. It can be cleaned up during batch testing or after a day of work, and can provide you with a recovery rate of about 98%. The recovery fineness can reach 10mm. Using continuous processing, the advanced reverse spiral system helps you increase gold recovery and reduce operator capacity.
Gravity Separator Big Scale Gold Trommel Screen for Rock Gold Mining Separation Equipment 0
Gravity Separator Big Scale Gold Trommel Screen for Rock Gold Mining Separation Equipment 1
Gravity Separator Big Scale Gold Trommel Screen for Rock Gold Mining Separation Equipment 2
Gravity Separator Big Scale Gold Trommel Screen for Rock Gold Mining Separation Equipment 3

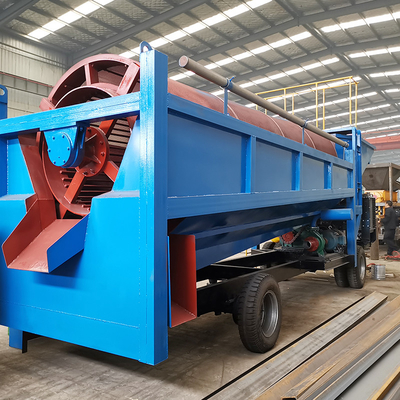

Screen Drum
The drum part is made of round steel and
manganese wire, and has three discharge ports, which can screen materials of three different specifications;
In addition, the screen can be designed with two different sizes of apertures, which greatly improves the screening efficiency of
materials and reduces working time. The maximum product under the screen is 100mm, the middle is 10-50mm, and the thinnest can be up to 3mm.
Gravity Separator Big Scale Gold Trommel Screen for Rock Gold Mining Separation Equipment 4
The function of grille
The grille is located above the feed hopper. It is made of round steel with a diameter of 20mm and an interval of 50mm. The grille blocks larger diameter materials from the hopper and prevents larger materials from entering the hopper from clogging and damaging the screen cylinder.

Gravity Separator Big Scale Gold Trommel Screen for Rock Gold Mining Separation Equipment 5
Gravity Separator Big Scale Gold Trommel Screen for Rock Gold Mining Separation Equipment 6

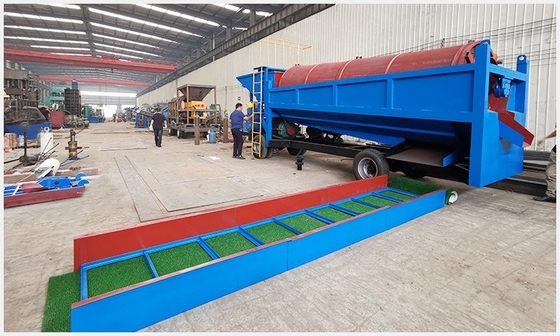

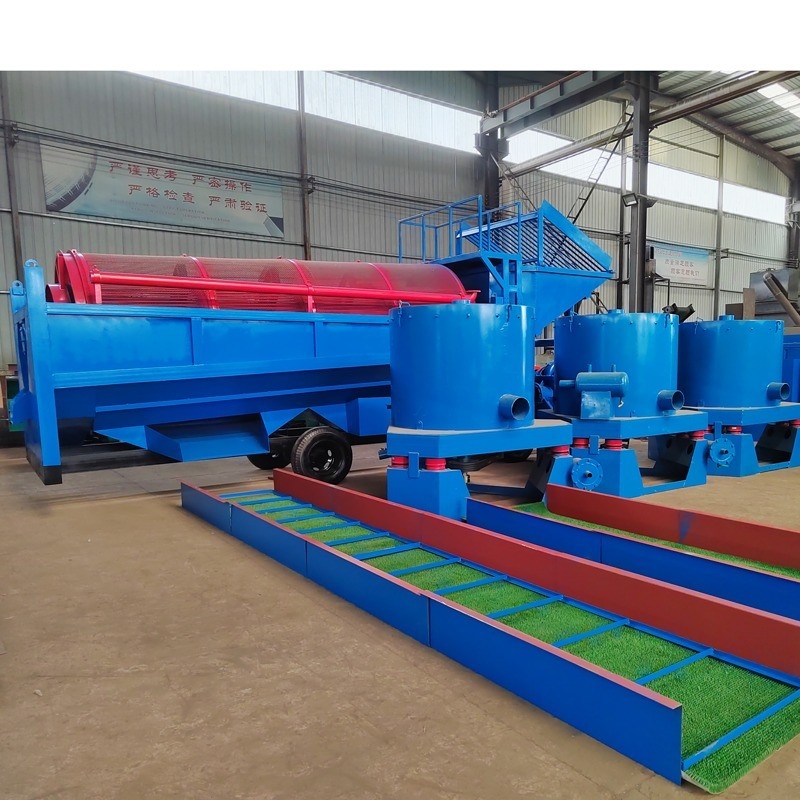

The mobile trommel gold washing plant is designed for alluvial/placer gold ore processing, it's consist a half covered trommel screen, one diesel engine/ electric motor, water pump& water pipes, and other facilities such as the feeding hoper and the mobile system.And the machine is additionally equipped with a manual operating table above the machine, which is easy to observe the feeding and operation of the machine, so as to deal with accidents in a timely manner.
Gravity Separator Big Scale Gold Trommel Screen for Rock Gold Mining Separation Equipment 7
Gravity Separator Big Scale Gold Trommel Screen for Rock Gold Mining Separation Equipment 8

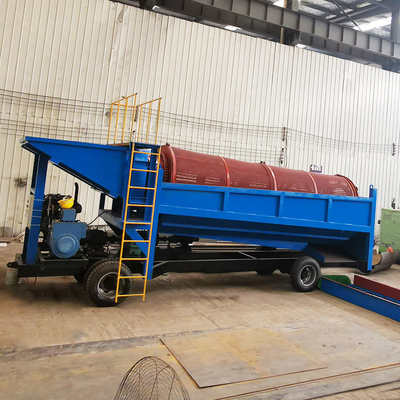

Gold mobile trommel screen is composed of feed hopper, drum, motor, water pump, reducer, wheel roller, transmission device (optional parts: gasoline engine and belt conveyor). It is mainly used in the processing and collection of alluvial gold and placer gold. Its advantages include flexible movement, small size and high screening efficiency.
Product show
Gravity Separator Big Scale Gold Trommel Screen for Rock Gold Mining Separation Equipment 9
Technical Parameters
Model
Capacity (t/h)
Power (kw)
Diameter (mm)
Length(mm)
Discharge(mm)
Input(mm)
Dimension (mm)
GMTS0519
5—10
1.5
500
1910
≤300
0—100
3000*1000*1800
GMTS1020
10—30
4
1000
2000
≤300
0—100
3200*1400*1900
GMTS1225
30—50
5.5
1200
2500
≤300
0—100
4300*1650*2220
GMTS1548
80—150
11
1500
4800
≤300
0—100
8000*2200*3600
GMTS1848
100—200
15
1800
4800
≤300
0—100
8000*2200*4000
Gravity Separator Big Scale Gold Trommel Screen for Rock Gold Mining Separation Equipment 10
Case
Gravity Separator Big Scale Gold Trommel Screen for Rock Gold Mining Separation Equipment 11
Gravity Separator Big Scale Gold Trommel Screen for Rock Gold Mining Separation Equipment 12
Packing & Delivery
Gravity Separator Big Scale Gold Trommel Screen for Rock Gold Mining Separation Equipment 13
Gravity Separator Big Scale Gold Trommel Screen for Rock Gold Mining Separation Equipment 14
Ways Of Packing 1. Small parts packed in the wooden cases 2.Big parts or the whole big machine is loaded in the container by the Ocean Shipping or others.
