The size of the feed port：≤300mm
The size of the outlet： 0-100mm
Nozzle material: seamless pipe Nozzle Diameter: 42 mm
Hopper size: 800*790mm
Round steel diameter: 20 mm
Round bar size: 50 mm
Hopper volume: 0.5 m3
 |

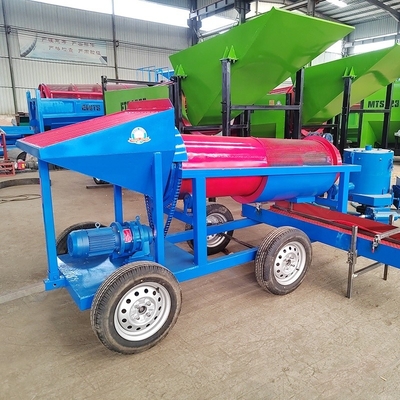

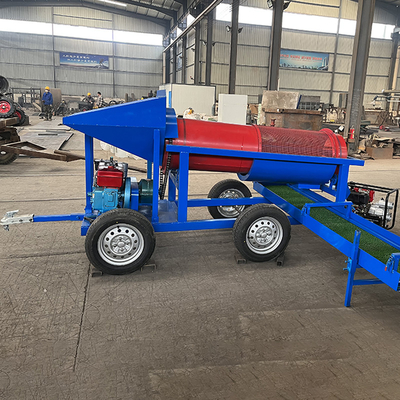

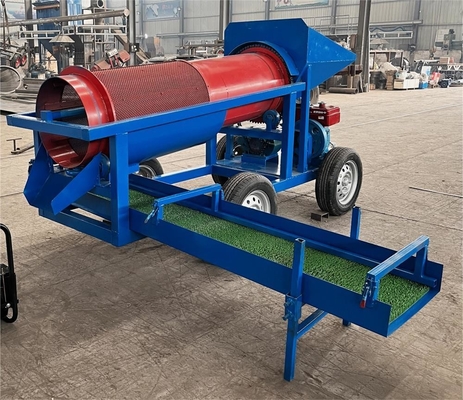

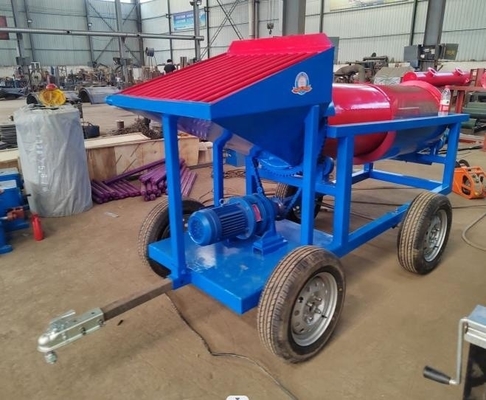

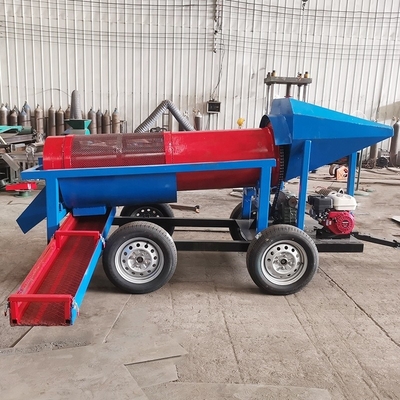

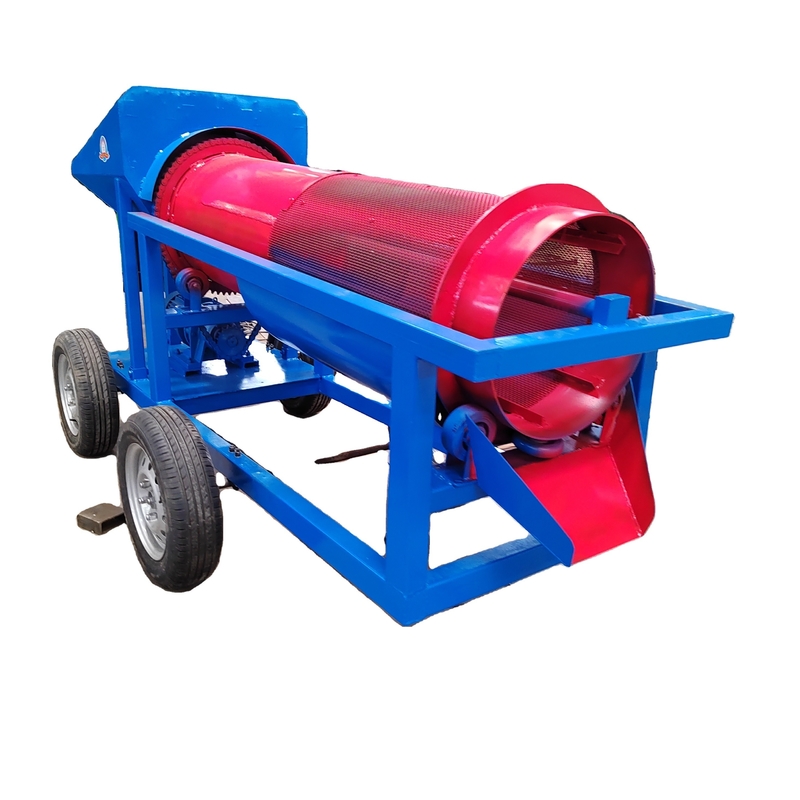

Small Spiral Sand Alluvial Gold Washing Equipment for 400 KG Capacity Collecting Plant
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | ZHENGZHOU SINOLION |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $4,080.00/sets |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Home Use, Construction Works , Energy & Mining, Other, Environmental Friendly, Metallurgical Industry, Chemical Industry | Showroom Location: | Canada, United States, Italy, Germany, Philippines |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator |
| Production Capacity: | 5-10t/h | Voltage: | 220V/380V/440V |
| Dimension(L*W*H): | 3.0m*0.8m*1.6m | Weight: | 400 KG |
| Warranty: | 1 Year | Marketing Type: | New Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Pump, Engine |
| Key Selling Points: | Easy To Operate | Material: | Steel |
| Application: | Sand, Alluvial Gold | Keywords: | Gold Separation Machine |
| Product Name: | Gold Mining Machine | Capacity: | 5-10T/H |
| Installation: | Under Guidance | Advantage: | Long Working Life |
| Usage: | Mining Concentration | Color: | As Your Request |
| After-sales Service Provided: | Engineers | ||
Product Description
Product Description
The mobile gold trommel screen is a movable gold selection platform, mainly used in dry land, beaches, and ancient rivers. It is a kind of gravity mineral processing equipment, which has the characteristics of less investment, less labor, quick return on investment, simple operation, and flexibility.
GMTS 0519
Model | Trommel diameter (mm) | Trommel length (mm) | Capacity (t/h) | Power (kw/hp) |
GMTS0519 | 500 | 1910 | 5-10 | 1.5/5.5 |
Working Principle
The trommel screen is mainly composed of a motor, a reducer, a drum device, a frame, and a material inlet and outlet. The motor is connected with the roller device through the reducer through the coupling, and drives the roller device to rotate around its axis.
Raw material loading
Raw materials input through the inlet of the hopper will be pushed into the sieve by the strong water pressure of the spray head installed in the hopper.
Washing
Through the rotation of the drum sieve, the raw material is washed by water and selected through the gold pan.
Fine gold collection
The light soil and sand are washed away by the water, and the heavier gold will gather in the gold pan.
This GMTS0519 model generator can be equipped with motor, diesel engine or gasoline engine.
