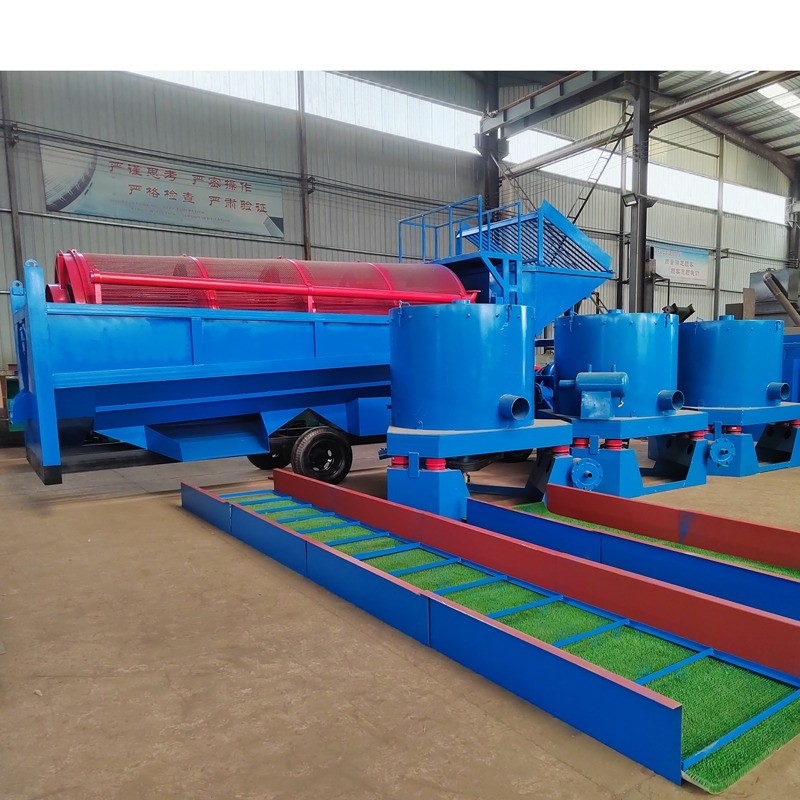

6500 KG Mining Concentration Mobile Gold Processing Plant with Gold Trommel Screening
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | ZHENGZHOU Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $14,500.00/sets >=1 sets |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Farms, Home Use, Construction Works , Energy & Mining | Showroom Location: | Egypt, Canada, United Kingdom, United States, Germany |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator |
| Production Capacity: | 80-150t/h | Voltage: | 220V/380V/440V |
| Dimension(L*W*H): | 8m*2.2m*3.6m | Weight: | 6500 KG |
| Warranty: | 1 Year | Marketing Type: | New Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Pump, Engine |
| Key Selling Points: | Multilayer | Application: | Alluvial Gold Washing |
| Usage: | Mining Concentration | Product Name: | Gold Separation Equipment |
| Keywords: | Centrifugal Gold Concentrtor | Installation: | Under Guidance |
| Capacity: | 80-150t/h | Material: | Steel |
| Color: | As You Request | After-sales Service Provided: | 1 Year |
| Name: | Gold Ore Processing Equipment | ||
Product Description
Product Description

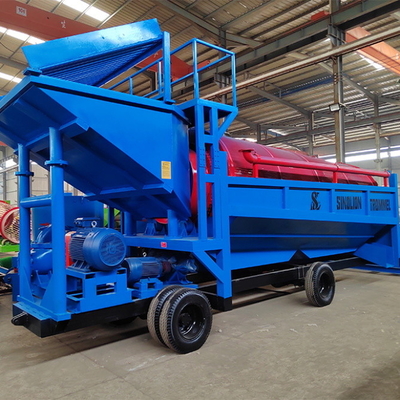

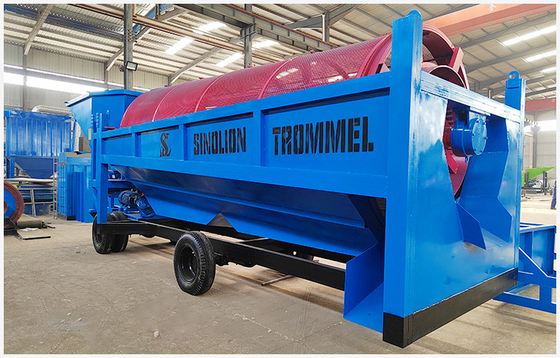

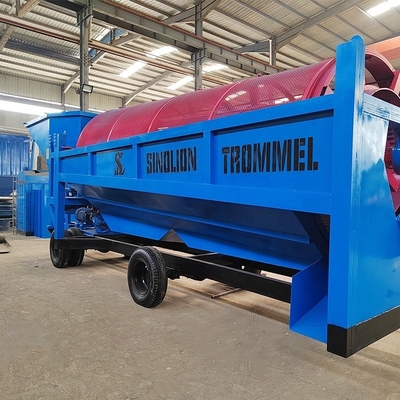

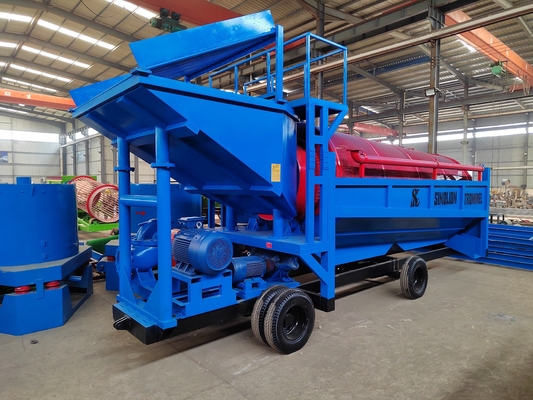

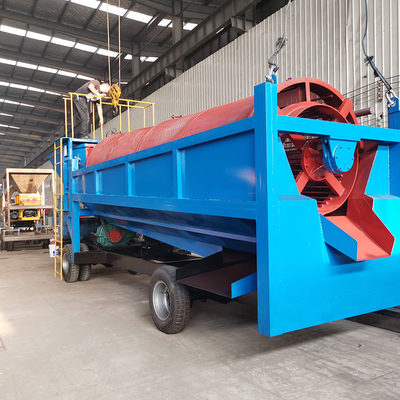

Gold mobile trommel screen 1548
The 1548 model gold rush trommel adopts double-layer screen design. The inner layer adopts a round steel structure, which is beneficial to prevent large materials from directly impacting the screen, greatly improving the service life of the outer screen and improving the screening efficiency of the outer screen. The galvanized seamless nozzle is located above the drum, and the water can flow directly into the drum to wash gold when the equipment is running. There is a ladder on the side of the equipment, and an artificial workbench on the upper part of the feeding hopper. It can be equipped with clean water centrifugal pump IS100-65-200.
Detail information
The motor reducer is connected through a coupling, and the roller is driven to rotate through a chain. When the material enters the drum device, due to the inclination and rotation of the drum device, the material on the screen surface is turned and rolled, and the qualified material is discharged from the equipment through the discharge port at the bottom of the drum. Unqualified materials are discharged from the discharge port at the end of the drum.
Main technical parameter
Model | Trommel Diameter (mm) | Trommel Length (mm) | Capacity (t/h) | Dimensions (L*W*H) |
GMTS1548 | 1500 | 4800 | 80-150 | 8*2.2*3.6 |
Packing & Delivery
Transported in a 40-foot high container
