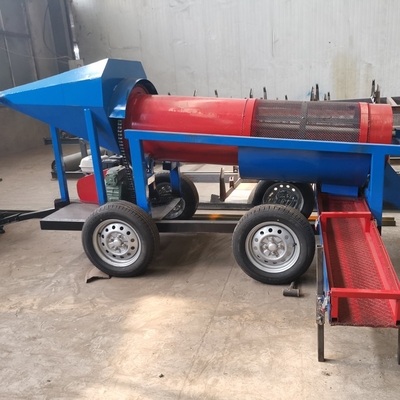

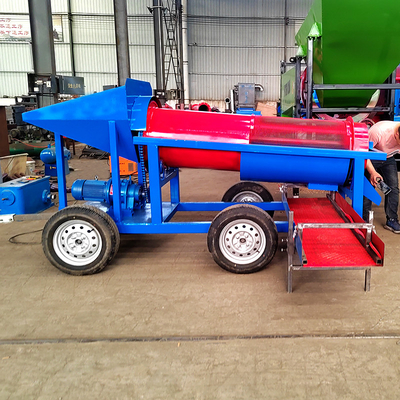

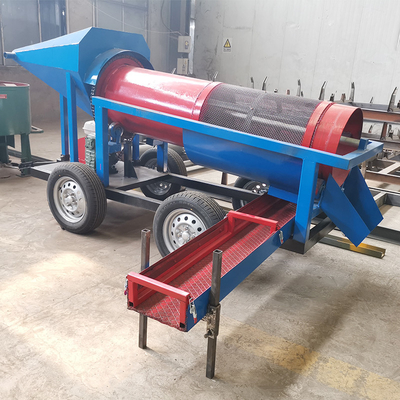

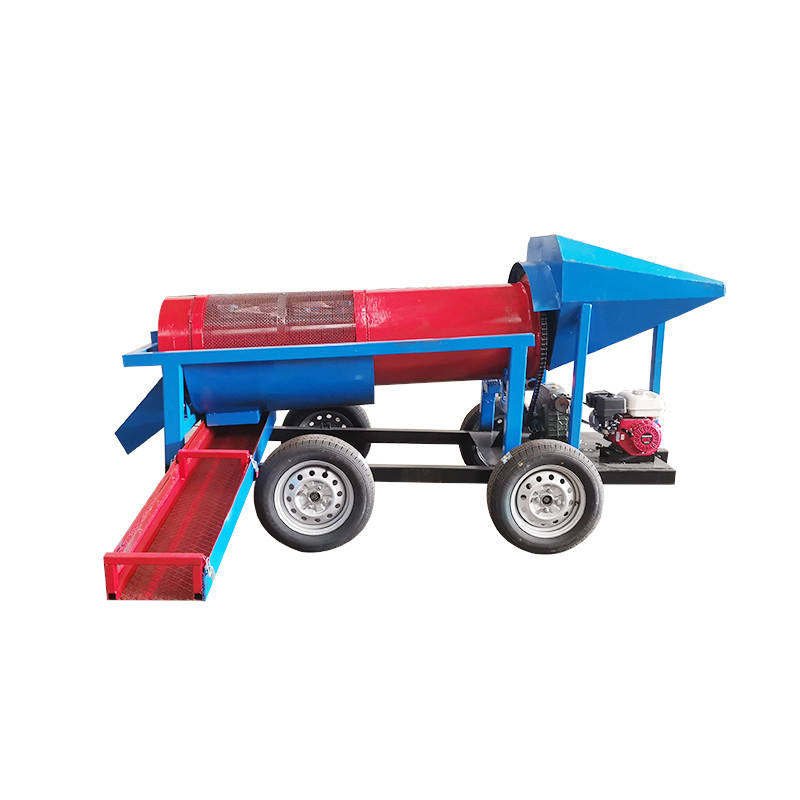

Small Capacity 10 Tons Mobile Gold Sand Separator Mining Trommel Screen Washing Plant
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $4,080.00/sets 1-2 sets |
| Packaging Details: | All products will be processed to be rustproof and moisture proof before delivery. <br>20GP container or 40GP container <br>Equipment is packed with plastic wrap or steel case, depends on machine weight. <br>Motor is packed with steel case or wooden case. |
| Supply Ability: | 50 Set/Sets per Month gold trommel screening plant |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Farms, Home Use, Construction Works , Energy & Mining, Other | Showroom Location: | Canada, United States |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator |
| Production Capacity: | 90% | Voltage: | 220V/380V |
| Dimension(L*W*H): | 3000x800x1640 | Weight: | 600 KG |
| Warranty: | 1 Year | Marketing Type: | Ordinary Product, Hot Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Engine, Gearbox |
| Key Selling Points: | Easy To Operate, High Separation Efficiency | Feeding Size: | Less Than 300mm |
| Installation: | Supply Manual To Guide User | Customizable: | Logo / Packing / Graphic |
| Port: | Qingdao, Tianjin, Lianyungang, Shanghai Guangzhou( As Client Request) | ||
Product Description
Product Description
Our production is called a mobile gold trommel screen , also known as mobile gold car. The sieve-type gold mobile washing equipment is mainly used for sand splitting and gold selection. It is suitable for energy and mining, building materials store, manufacturing plant, construction engineering, energy and mining. Our trommel screen has a lot of advantages ,such as: move conveniently ,well-adapted，Integrated design, operate simply, labor-saving,strongly-processing capacity, work efficiently, obvious gold-selected effect and so on.
Working Principle

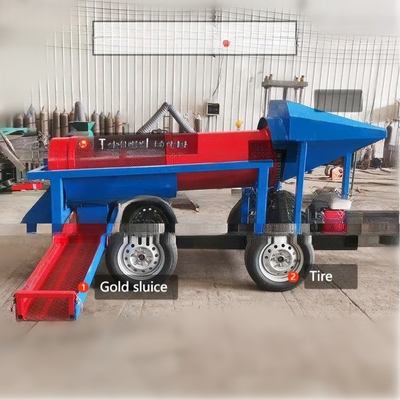

1> Raw material feeding The raw material input through the hopper inlet is pushed into the screen drum by the powerful water pressure of the nozzle loaded in the hopper. 2> Washing The screen barrel has a built-in galvanized seamless water spray pipe (diameter 42mm), and the raw materials are washed by water and selected through the gold panning tank through the rotation of the trommel screen. 3> Fine gold collection Light dirt and sand are washed away by the water, and heavier gold will gather in the gold blanket.
Grille
The drum part is woven of manganese wire，the aperture of manganese wire screen is usually 5mm, and the range of customization is 2mm-80mm, which can be made according to customer requirements. And the manganese wire material is durable, not easy to corrode and block, and can be replaced.
Screen Drum

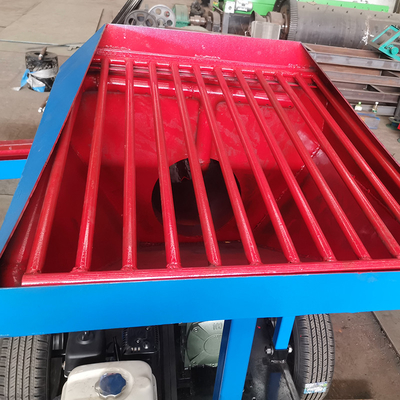

The grille is located above the feed hopper. It is made of round steel with a diameter of 20mm and an interval of 50mm. The grille blocks larger diameter materials from the hopper and prevents larger materials from entering the hopper from clogging and damaging the screen cylinder.
Technical Parameters
Model | Capacity (t/h) | Power (kw) | Diameter (mm) | Length(mm) | Discharge(mm) | Input(mm) | Dimension (mm) |
GMTS0519 | 5—10 | 1.5 | 500 | 1910 | ≤300 | 0—100 | 3000*1000*1800 |
GMTS1020 | 10—30 | 4 | 1000 | 2000 | ≤300 | 0—100 | 3200*1400*1900 |
GMTS1225 | 30—50 | 5.5 | 1200 | 2500 | ≤300 | 0—100 | 4300*1650*2220 |
GMTS1548 | 80—150 | 11 | 1500 | 4800 | ≤300 | 0—100 | 8000*2200*3600 |
GMTS1848 | 100—200 | 15 | 1800 | 4800 | ≤300 | 0—100 | 8000*2200*4000 |
Case
Packing & Delivery
Wooden box packing or Container shipping.
