The grille is located above the feed hopper. It is made of round steel with a diameter of 20mm and an interval of 50mm. The grille
blocks larger diameter materials from the hopper and prevents larger materials from entering the hopper and damaging the screen
cylinder.
 |

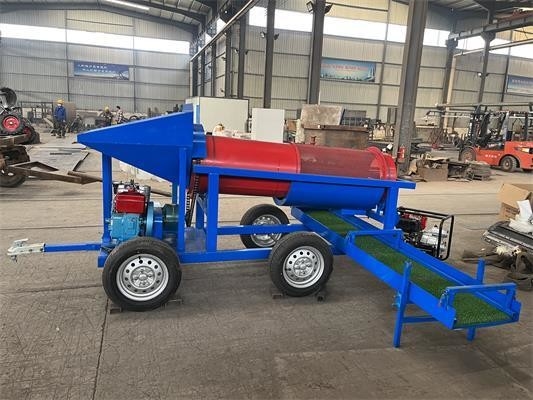

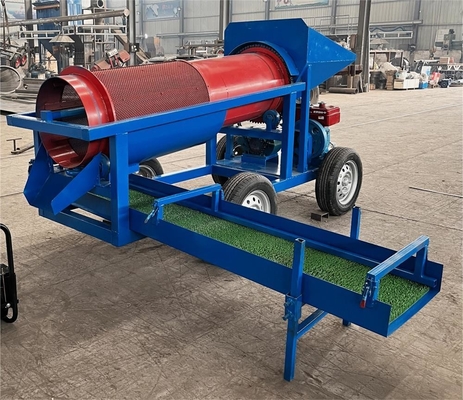

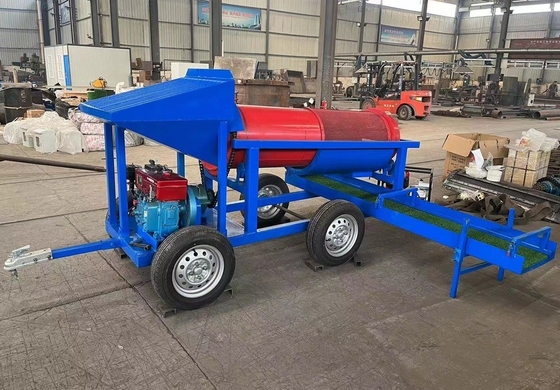

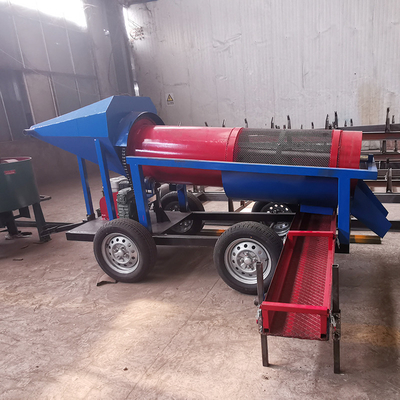

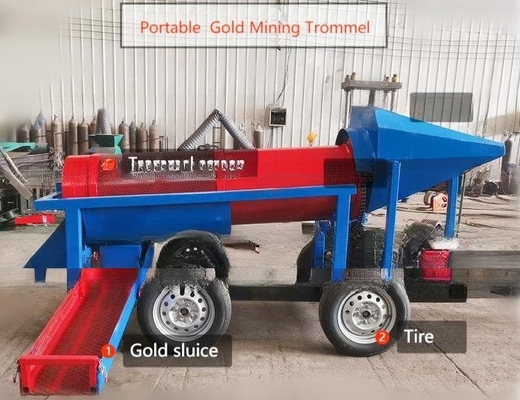

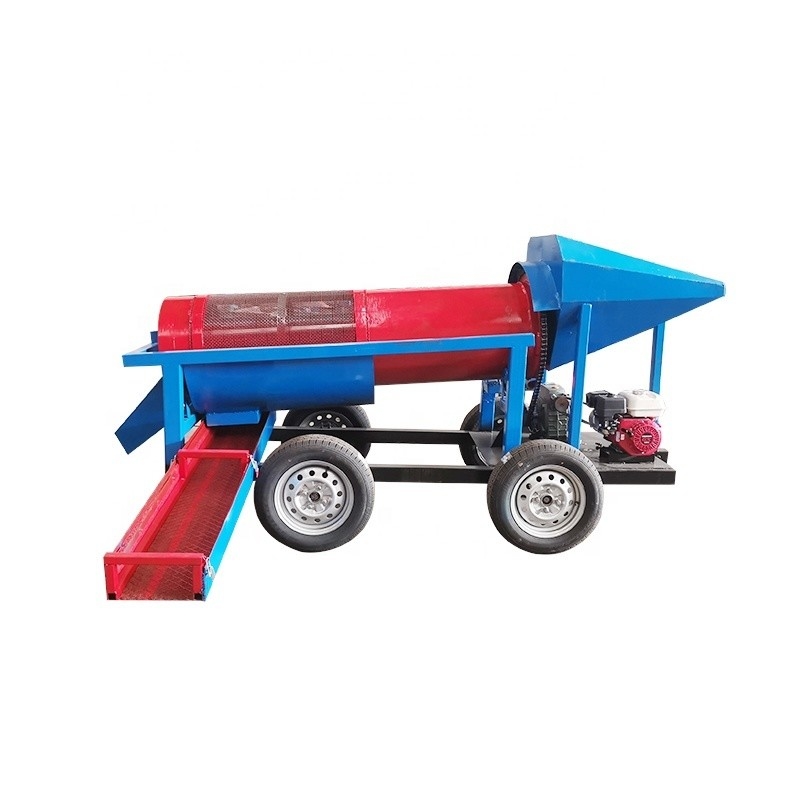

Gravity Separator Small Capacity Alluvial Gold Mobile Mining Trommel Machinery in Blue
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $4,050.00/sets 1-2 sets |
| Packaging Details: | All products will be processed to be rustproof and moisture proof before delivery. <br>20GP container or 40GP container <br>Equipment is packed with plastic wrap or steel case, depends on machine weight. <br>Motor is packed with steel case or wooden case. |
| Supply Ability: | 50 Set/Sets per Month gold trommel screening plant |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Home Use, Food Shop, Construction Works , Energy & Mining, Other | Showroom Location: | Canada, United States, Australia |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator |
| Production Capacity: | 98% | Voltage: | 220V/380V |
| Dimension(L*W*H): | 3000*1000*1800 | Weight: | 400 KG |
| Warranty: | 1 Year | Marketing Type: | Hot Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Engine, Gearbox |
| Key Selling Points: | Low Maintenance Cost, High Separation Efficiency | Customizable: | Logo / Packing / Graphic |
| Installation: | Supply Manual To Guide User | Feeding Size: | Less Than 300mm |
| Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) | Sieve: | Manganese Wire |
| Port: | Qingdao, Tianjin, Lianyungang, Shanghai Guangzhou( As Client Request) | ||
Product Description
Product Description
Our production is called a mobile gold trommel screen , also known as mobile gold car. The sieve-type gold mobile washing equipment is mainly used for sand splitting and gold selection. It is suitable for energy and mining, building materials store, manufacturing plant, construction engineering, energy and mining.
Our trommel screen has a lot of advantages ,such as: move conveniently ,well-adapted，Integrated design, operate simply, labor-saving,strongly-processing capacity, work efficiently, obvious gold-selected effect and so on.
The trommel screen is mainly composed of a motor, a reducer, a drum device, a frame, and a material inlet and outlet .The motor is connected with the roller device through the reducer through the coupling, and drives the roller device torotate around its axis.
The function of grille
Screen drum
The drum part is woven of manganese wire，the aperture of manganese wire screen is usually 5mm, and the range of customization is 2mm-80mm, which can be made according to customer requirements. And the manganese wire material is durable, not easy to corrode and block, and can be replaced.
Working Principle
Raw materials input through the inletof the hopper will be pushed into thesieve by the strong water pressure ofthe spray head installed in the hopper ,through the rotation of the drum sievethe raw material is washed by waterand selected through the gold pan.the light soil and sand are washedaway by the water, and the heaviergold will gather in the gold pan.
Technical Parameters
Model | Capacity (t/h) | Power (kw) | Diameter (mm) | Length(mm) | Discharge(mm) | Input(mm) | Dimension (mm) |
GMTS0519 | 5—10 | 1.5 | 500 | 1910 | ≤300 | 0—100 | 3000*1000*1800 |
GMTS1020 | 10—30 | 4 | 1000 | 2000 | ≤300 | 0—100 | 3200*1400*1900 |
GMTS1225 | 30—50 | 5.5 | 1200 | 2500 | ≤300 | 0—100 | 4300*1650*2220 |
GMTS1548 | 80—150 | 11 | 1500 | 4800 | ≤300 | 0—100 | 8000*2200*3600 |
GMTS1848 | 100—200 | 15 | 1800 | 4800 | ≤300 | 0—100 | 8000*2200*4000 |
More models
Case
Packing & Delivery
Wooden box packing or Container shipping.
