The size of the feed port：≤300mm
The size of the outlet： 0-100mm
Nozzle material: seamless pipe Nozzle Diameter: 42 mm
Hopper size: 800*790mm
Round steel diameter: 20 mm
Round bar size: 50 mm
Hopper volume: 0.5 m3
 |
Alluvial Gold Washing Fine Gold Trommel Screen for Metallurgical Gold Ore Processing
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | SINOLION |
| Certification: | CE Certificate |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $4,080.00/sets |
|
Detail Information |
|||
| Applicable Industries: | Manufacturing Plant, Farms, Home Use, Construction Works , Energy & Mining, Other, Environmental Friendly, Metallurgical Industry, Chemical Industry | Showroom Location: | Canada, United States, Italy, Germany, Philippines |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator, Gravity Separation |
| Production Capacity: | 5-10t/h | Voltage: | 220V/380V/440V |
| Dimension(L*W*H): | 3.0m*0.8m*1.6m | Weight: | 400 KG |
| Warranty: | 1 Year | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Pump, Engine |
| Key Selling Points: | Easy To Operate | Application: | Alluvial Gold Washing |
| Product Name: | Gold Mining Machine | Keywords: | Gold Separation Machine |
| Name: | Gold Mining Wash Plant | Usage: | Mining Concentration |
| Processed Materials: | Alluvial Gold Sand Gold | Capacity: | 5-10T/H |
| Color: | As Your Request | ||
Product Description
Product Description

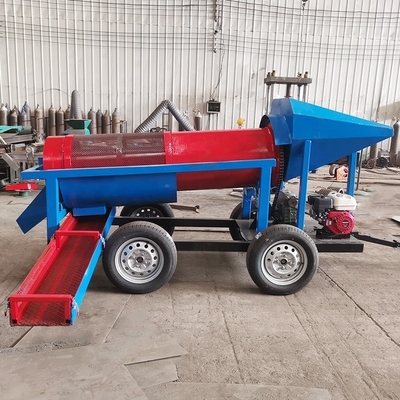

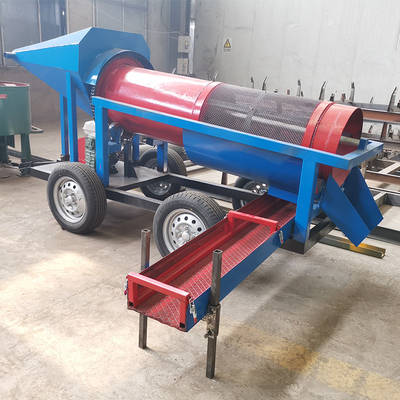

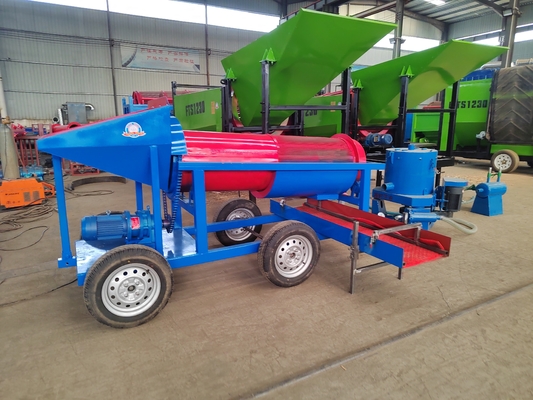

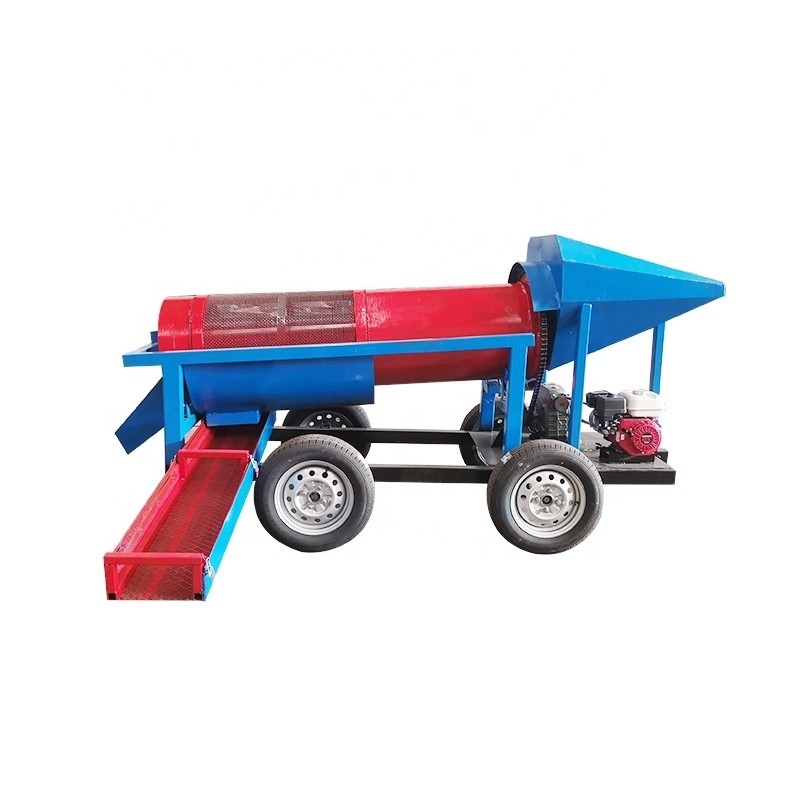

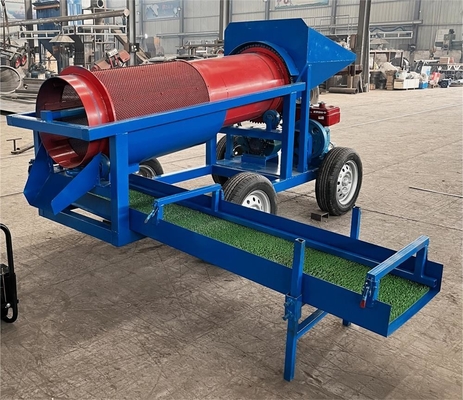

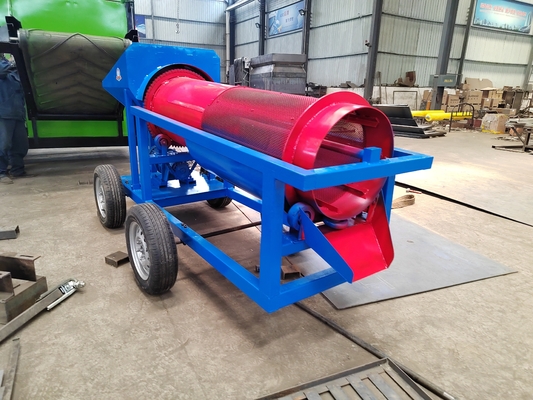

The mobile gold trommel screen is a movable gold selection platform, mainly used in dry land, beaches, and ancient rivers. It is a kind of gravity mineral processing equipment, which has the characteristics of less investment, less labor, quick return on investment, simple operation, and flexibility.
GMTS 0519 Model
Model | Trommel diameter (mm) | Trommel length (mm) | Capacity (t/h) | Power （kw） |
GMTS0519 | 500 | 1910 | 5-10 | 1.5 |
Working Principle
The trommel screen is mainly composed of a motor, a reducer, a drum device, a frame, and a material inlet and outlet. The motor is connected with the roller device through the reducer through the coupling, and drives the roller device to rotate around its axis.
Raw material loading
Raw materials input through the inlet of the hopper will be pushed into the sieve by the strong water pressure of the spray head installed in the hopper.
Washing
Through the rotation of the drum sieve, the raw material is washed by water and selected through the gold pan.
Fine gold collection
The light soil and sand are washed away by the water, and the heavier gold will gather in the gold pan.
This GMTS0519 model generator can be equipped with motor, diesel engine or gasoline engine.
Product packaging
Gold rush line
Our company
Zhengzhou Sinolion Machinery Co.,Ltd.
We are a high-tech company which professional manufacturing the production of mineral
processing equipment and municipal solid waste sorting plant, we supply complete solution design and service.
processing equipment and municipal solid waste sorting plant, we supply complete solution design and service.
Our Core Advantages as below :
1.+30 years history FACTORY at mining machinery
2.Provide engineer team after sales service
3.Provide Complete set mineral processing plant
4.Provide Sample testing service in factory lab for free
5.Provide professional Mining Solution Consulting
2.Provide engineer team after sales service
3.Provide Complete set mineral processing plant
4.Provide Sample testing service in factory lab for free
5.Provide professional Mining Solution Consulting
Certifications
Contact us
Could you tell me the following questions, so that I can give you a complete solution, including best Exw-works Price Quotation!
1. What is the material you want to process? Is the gold in the soil? It would be appreciated if you could send us a picture of your material. 2. How many tons of material do you want to process per hour?
